P1121

CIRCUIT DESCRIPTION
The throttle position (TP) sensor is used by the powertrain control module (PCM) in order to determine the throttle plate angle for various engine management systems. The TP sensor is a potentiometer-type sensor with a 5-volt reference circuit, a low reference circuit, and a signal circuit. Rotation of the TP sensor rotor from the closed throttle position to the wide open throttle (WOT) position provides the PCM with a signal voltage from less than 1 volt to more than 4 volts through the TP sensor signal circuit. If the PCM detects an intermittent excessively high signal voltage, this DTC will set.

CONDITIONS FOR RUNNING THE DTC
The ignition is ON.

CONDITIONS FOR SETTING THE DTC
The TP sensor intermittently indicates a throttle position signal that is more than 4.8 volts.

ACTION TAKEN WHEN THE DTC SETS
^ The control module stores the DTC information into memory when the diagnostic runs and fails.
^ The malfunction indicator lamp (MIL) will not illuminate.
^ The control module records the operating conditions at the time the diagnostic fails. The control module stores this information in the Failure Records.
^ The driver information center, if equipped, may display a message.

CONDITIONS FOR CLEARING THE DTC
^ A current DTC Last Test Failed clears when the diagnostic runs and passes.
^ A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other non-emission related diagnostic.
^ Clear the DTC with a scan tool.

TEST DESCRIPTION

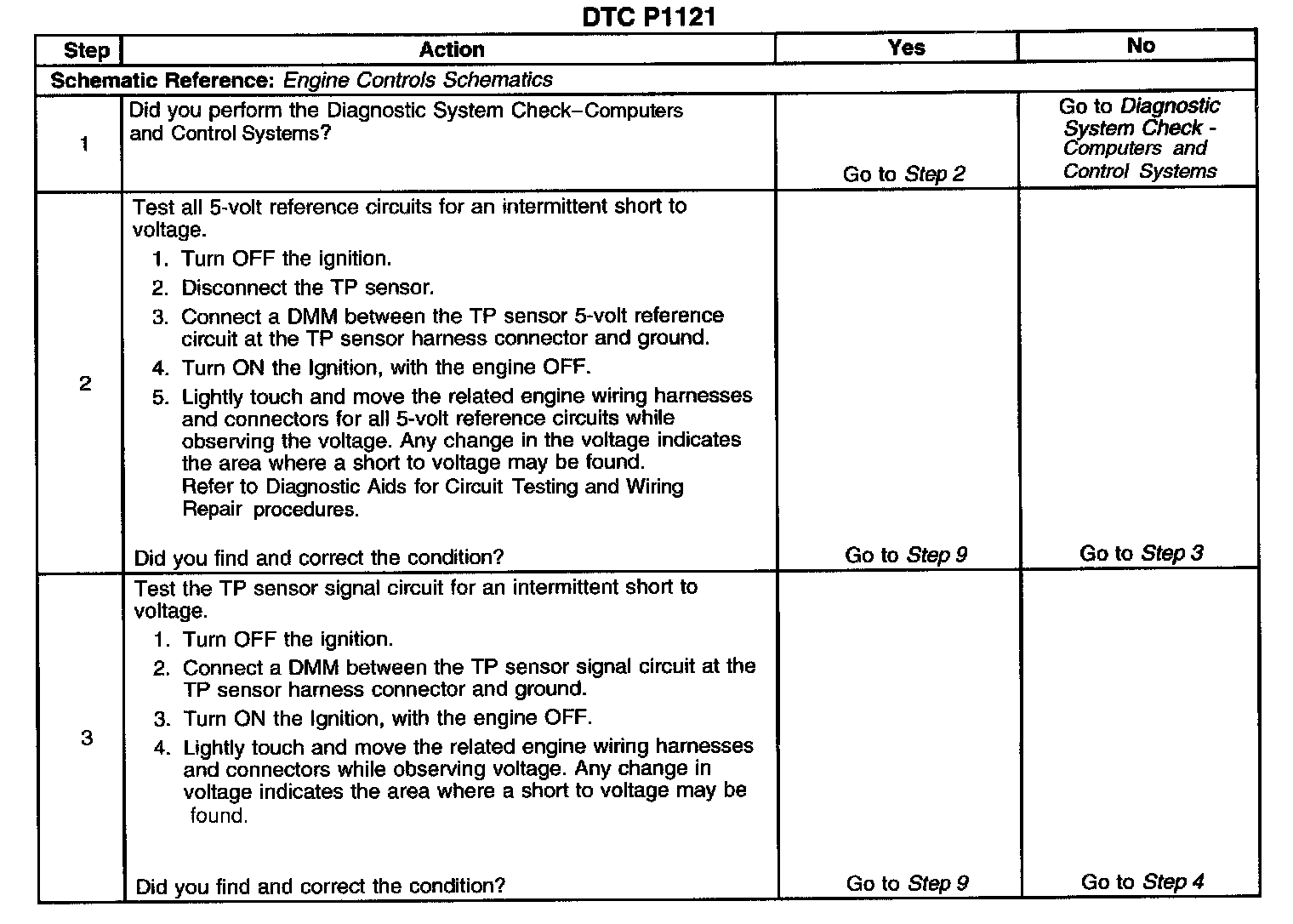

Steps 1-3:

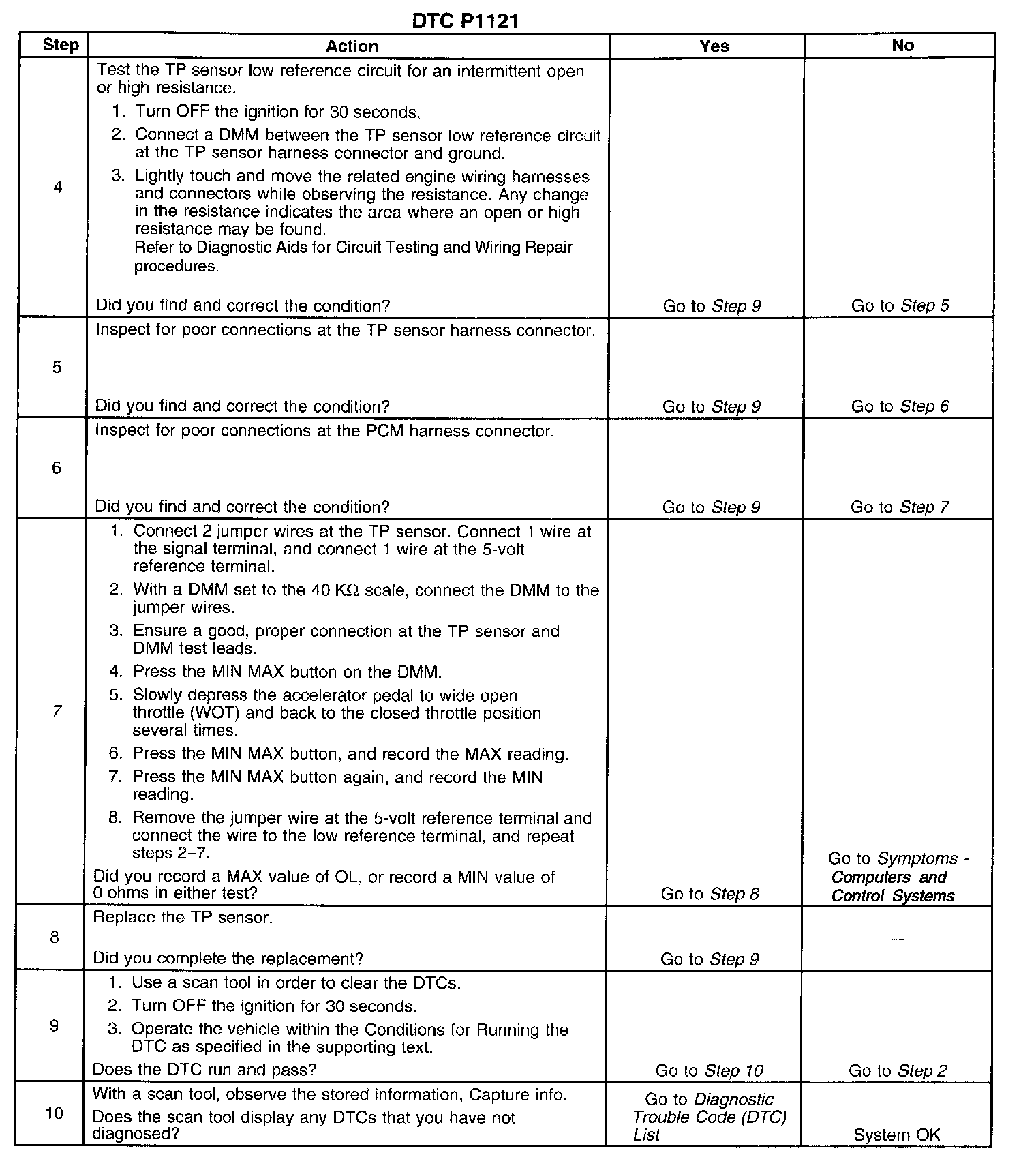

Steps 4-10:

The numbers below refer to the step numbers on the diagnostic table:
7. This test will determine an intermittent faulty TP sensor utilizing the DMM's MIN MAX, 100-millisecond capture mode.
