P1114

CIRCUIT DESCRIPTION
The engine coolant temperature (ECT) sensor is a thermistor, or variable resistor, that measures the temperature of the engine coolant. The powertrain control module (PCM) supplies 5 volts to the ECT signal circuit through a pull-up resistor. When the engine coolant temperature is cold, the sensor resistance is high. When the engine coolant temperature increases, the sensor resistance lowers. With high sensor resistance, the PCM detects a high voltage on the ECT signal circuit. With lower sensor resistance, the PCM detects a lower voltage on the ECT signal circuit. If the PCM detects an intermittently high ECT signal voltage, a low temperature indication, this DTC will set.

CONDITIONS FOR RUNNING THE DTC
^ DTCs P0112, P0113, P1111, or P1112 are not set.
^ The engine has been running for 10 seconds.
^ The intake air temperature is above -70°C (158°F).

CONDITIONS FOR SETTING THE DTC
The ECT sensor temperature is less than 149°C (300°F) for more than 10 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ The control module stores the DTC information into memory when the diagnostic runs and fails.
^ The malfunction indicator lamp (MIL) will not illuminate.
^ The control module records the operating conditions at the time the diagnostic fails. The control module stores this information in the Failure Records.
^ The driver information center, if equipped, may display a message.

CONDITIONS FOR CLEARING THE DTC
^ A current DTC Last Test Failed clears when the diagnostic runs and passes.
^ A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other non-emission related diagnostic.
^ Clear the DTC with a scan tool.

DIAGNOSTIC AIDS
If the condition is intermittent, refer to Intermittent Conditions. Intermittent Conditions

TEST

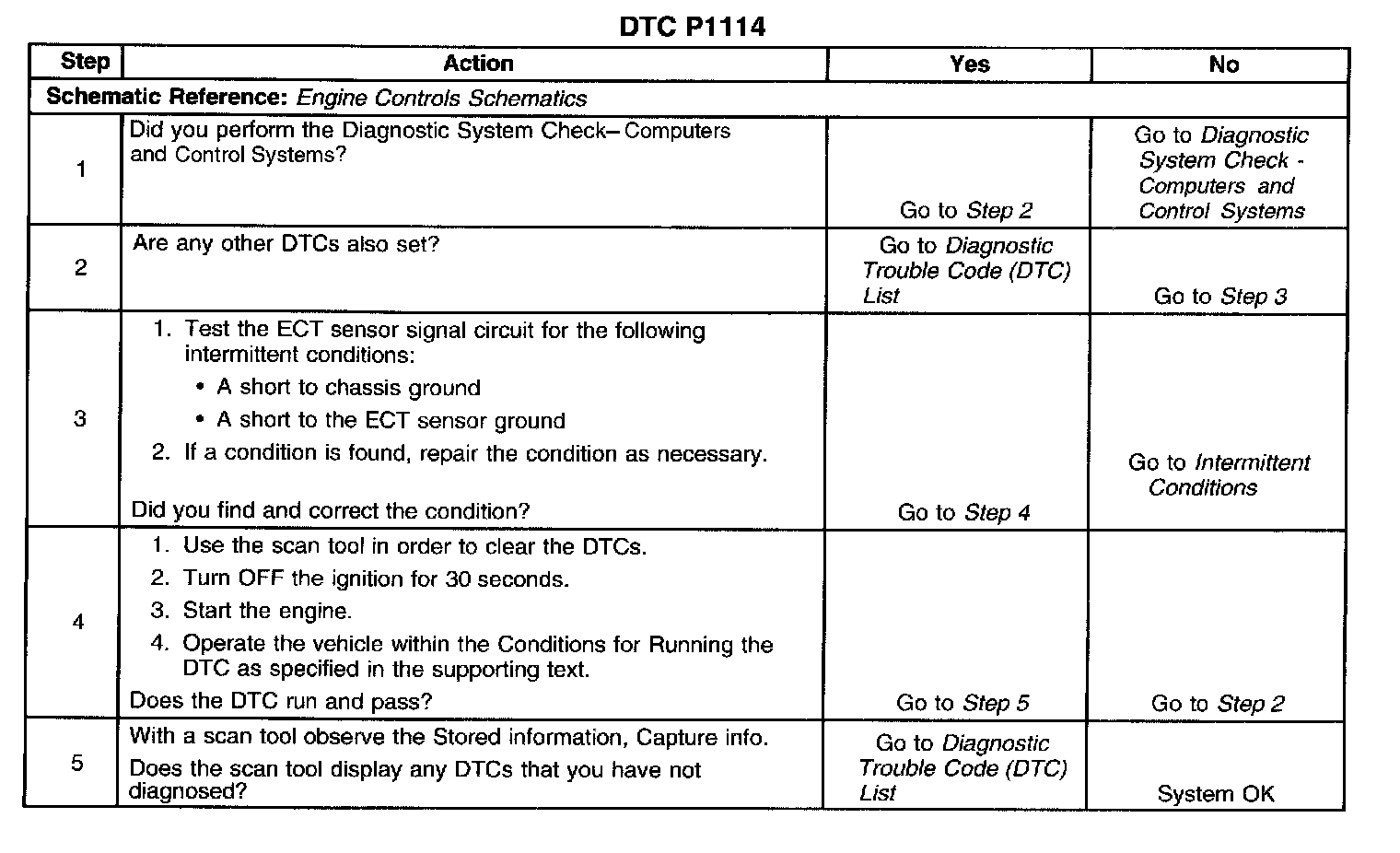

Steps 1-5:
