P0717

DTC P0717

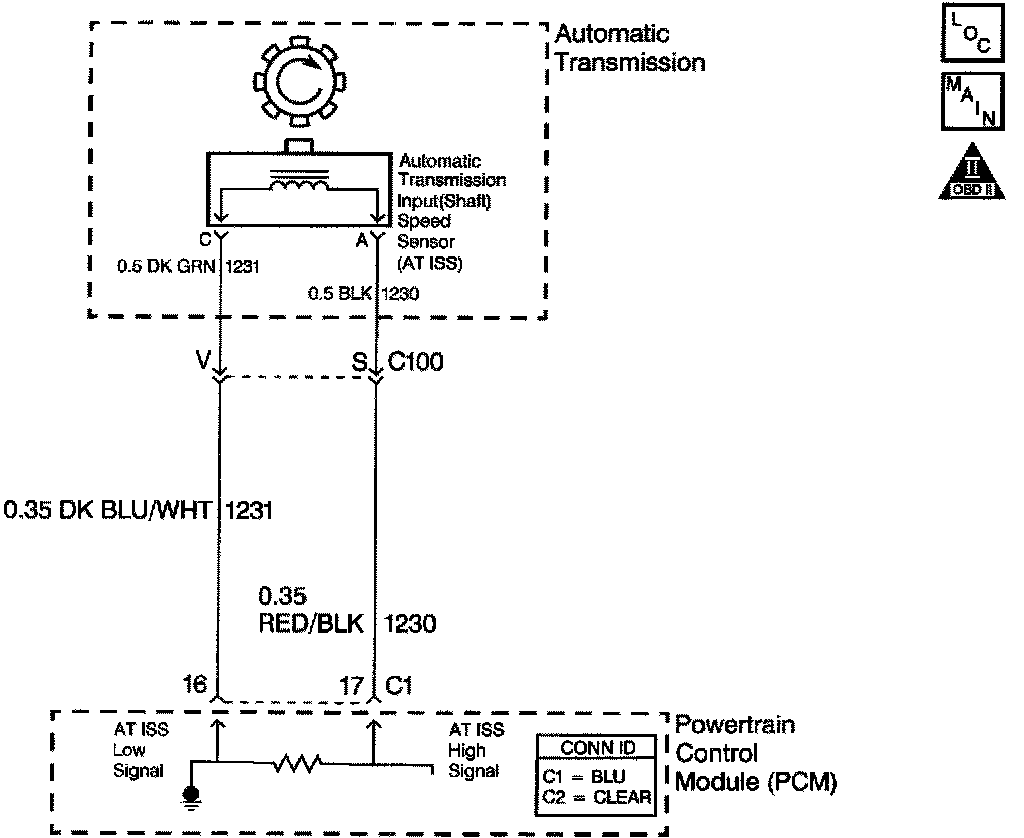

Circuit Description with 4T65-E Automatic Transaxle
The automatic transmission input, shaft, speed sensor (AT ISS) is a permanent magnet generator. The AT ISS mounts in the transmission case facing the drive sprocket of the input shaft. As the drive sprocket rotates, an AC voltage is induced and transmitted to the PCM. The PCM converts the AC voltage into a digital signal. The PCM uses the input shaft speed signal to determine shift timing, torque converter clutch slip speed and gear ratio.
If the PCM detects a low input speed while the vehicle and engine speeds are high, then DTC P0717 sets. DTC P0717 is a type B DTC

Conditions for Running the DTC
^ No VSS DTCs P0502 or P0503.
^ No IMS DTCs P1820, P1822, P1823 or P1825.
^ The system voltage is 8-18 volts.
^ The engine run time is greater than 5 seconds.
^ The transmission is not in PARK or NEUTRAL.
^ The vehicle speed is 16 km/h (110 mph) or greater.

Conditions for Setting the DTC
The transmission input shaft speed is 50 RPM or less for 6 seconds.

Action Taken When the DTC Sets
^ The PCM illuminates the malfunction indicator lamp (MIL) during the second consecutive trip in which the Conditions for Setting the DTC are met.
^ The PCM commands maximum line pressure.
^ The PCM inhibits TCC engagement.
^ The PCM calculates input, shaft, speed from vehicle speed and commanded gear.
^ The PCM records the operating conditions when the Conditions for Setting the DTC are met. The PCM stores this information as Freeze Frame and Failure Records.
^ The PCM stores DTC P0717 in PCM history during the second consecutive trip in which the Conditions for Setting the DTC are met.

Conditions for Clearing the MIL/DTC
^ The PCM turns OFF the MIL during the third consecutive trip in which the diagnostic test runs and passes.
^ A scan tool can clear the MIL/
^ The PCM clears the DTC from PCM history if the vehicle completes 40 warm-up cycles without an emission-related diagnostic fault occurring.
^ The PCM cancels the DTC default actions when the ignition switch is OFF long enough in order to power down the PCM.

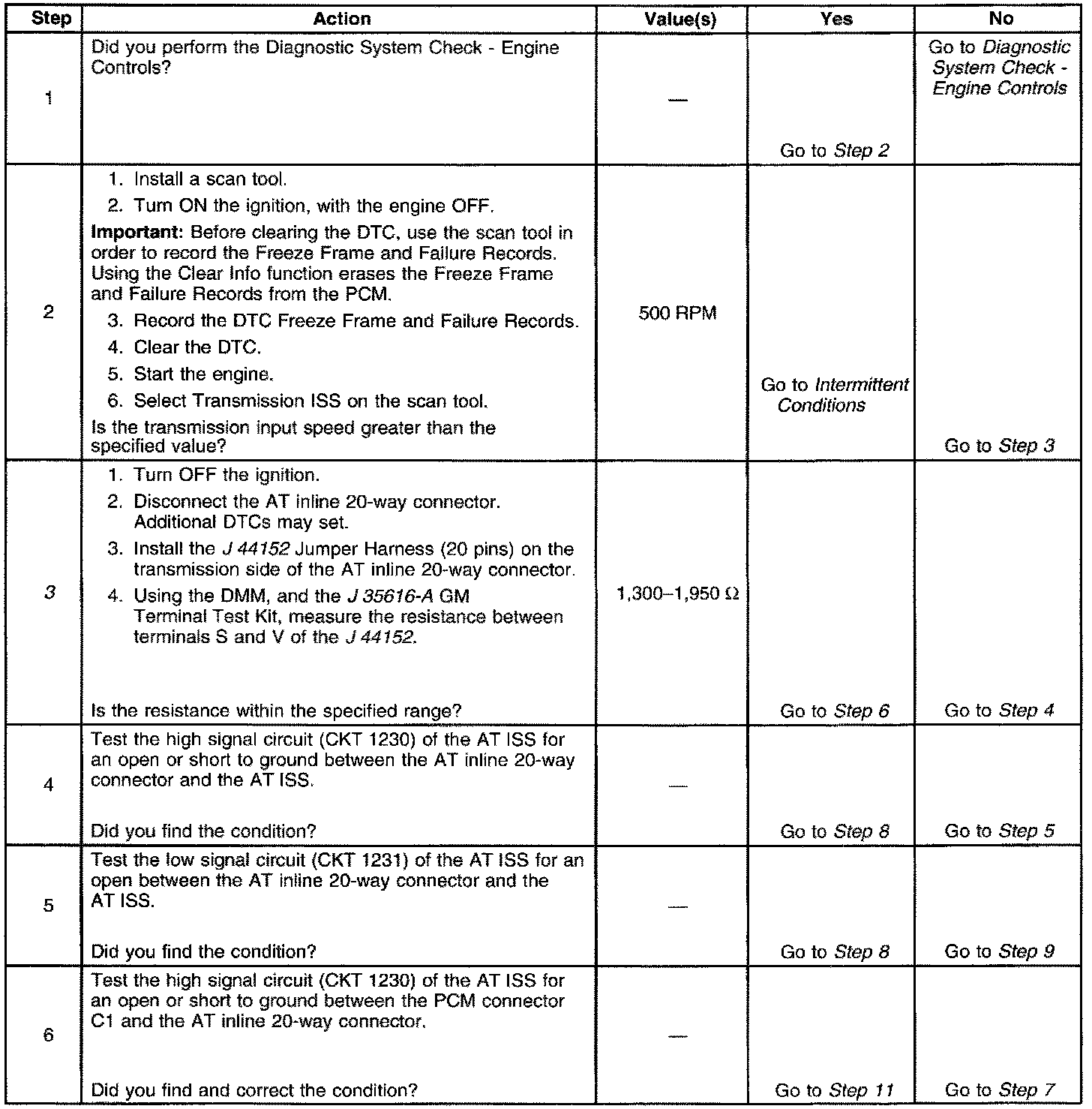

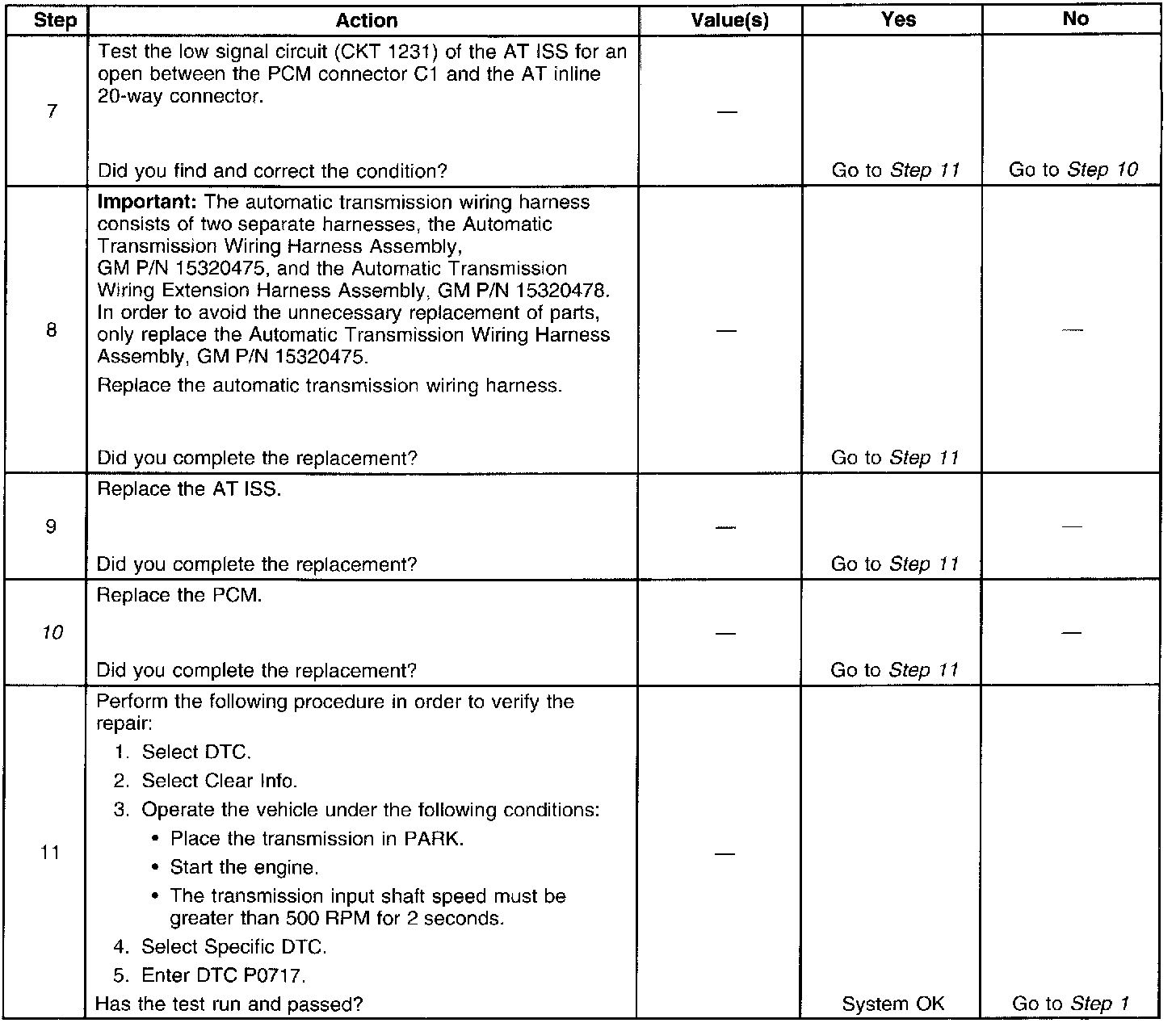

Test Description
The numbers below refer to the step numbers on the diagnostic table.
3. This step tests the AT ISS for correct resistance.
10. Replacing the PCM only after completing all circuit tests.
