P0615

CIRCUIT DESCRIPTION
The PCM supplies a ground path for the starter relay when start enable has been requested. The PCM monitors this circuit for conditions that are incorrect for the commanded state. If the PCM detects an improper circuit condition, starter relay DTC P0615 will set.

CONDITIONS FOR RUNNING THE DTC
System voltage is between 8-16 volts.

CONDITIONS FOR SETTING THE DTC
^ The PCM detects an improper voltage level on the output circuit that controls the starter relay.
^ The condition exists for at least 2 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ The PCM will not illuminate the Malfunction Indicator Lamp (MIL).
^ The PCM will store the conditions present when the DTC set as Fail Records data only.

CONDITIONS FOR CLEARING THE MIL/DTC
^ The history DTC will clear after 40 consecutive warm-up cycles have occurred without a malfunction.
^ The DTC can be cleared by using the scan tool Clear DTC Information function.

DIAGNOSTIC AIDS
Ignition system DTCs set with the ignition switch in the START position if the starter relay or the starter is inoperative. When the PCM enables starter operation, the PCM also initiates the diagnostic test routines for DTCs P0335, P0340, and P0385. If a condition exists which prevents the engine from cranking, the PCM will not receive signal input from the CKP and CMP sensors,and the DTCs will set.

Reviewing the Fail Records vehicle mileage since the diagnostic test last failed may assist in diagnosing the condition. The information may help determine how often the condition that set the DTC occurs.

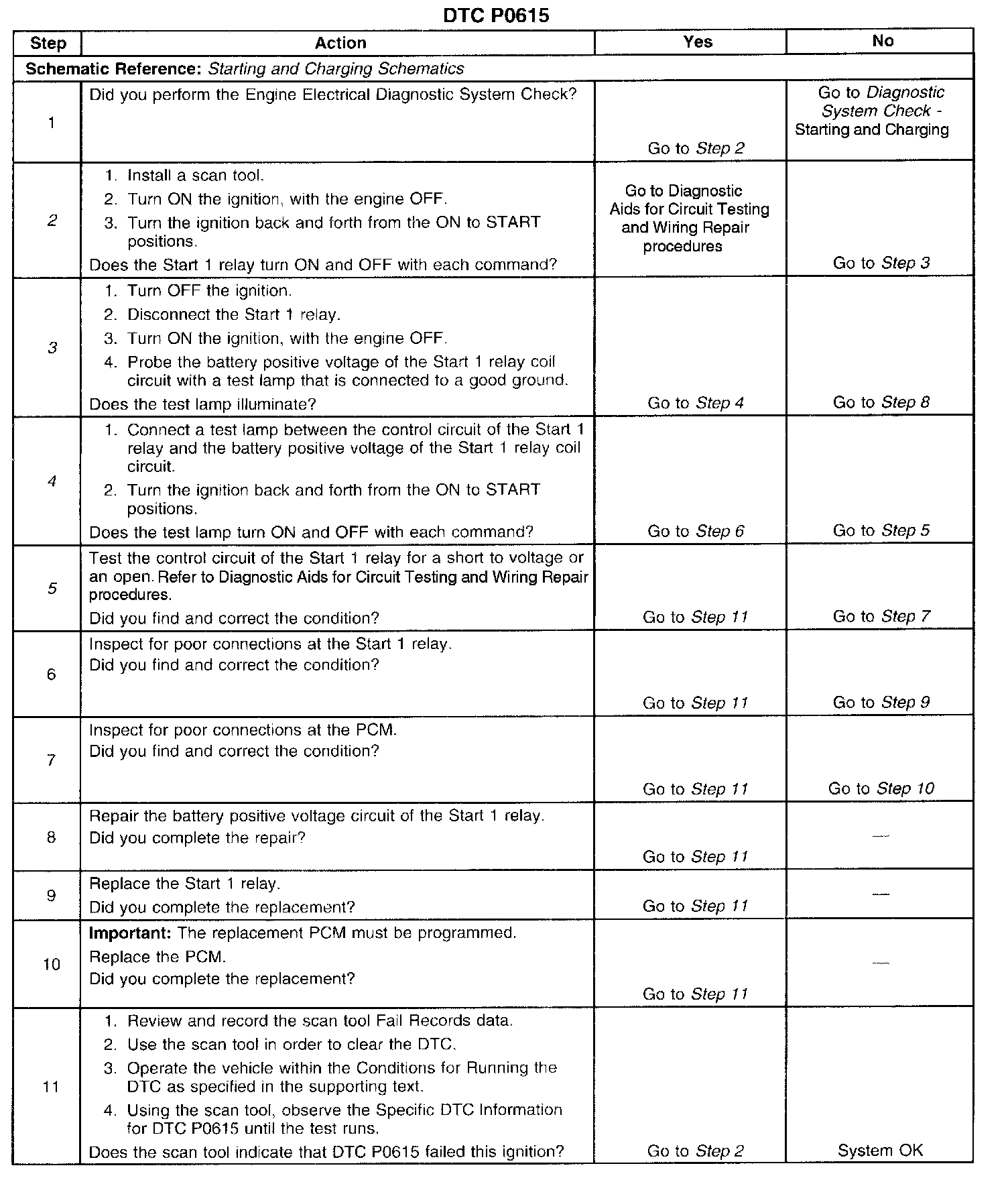

TEST DESCRIPTION

Steps 1-11:




The number(s) below refer to the step number(s) on the diagnostic table.
2. Listen for an audible click when the Start 1 relay operates. Turn the ignition switch back and forth from the ON to START positions. Repeat this as necessary.
3. Tests for voltage at the coil side of the Start 1 relay. The PCM ION fuse supplies power to the coil side of the Start 1 relay.
4. Verifies that the PCM is providing ground to the Start 1 relay.
5. Tests if ground is constantly being applied to the Start 1 relay.
