B3574

CIRCUIT DESCRIPTION
The IPC monitors the Trip Reset and the Trip A/B switches in order to perform certain functions. The IPC detects a switch activation when the signal circuit is low.

CONDITIONS FOR RUNNING THE DTC
The ignition is ON.

CONDITIONS FOR SETTING THE DTC

B2823
The IPC detects that the Trip Reset switch signal circuit is low for greater than 15 seconds.

B3574
The IPC detects that the Trip NB switch signal circuit is low for greater than 15 seconds.

ACTION TAKEN WHEN THE DTC SETS
The IPC ignores the malfunctioning switch circuit.

CONDITIONS FOR CLEARING THE DTC
^ The current DTC becomes history when the fault is no longer present.
^ The IPC receives a clear code command from the scan tool.

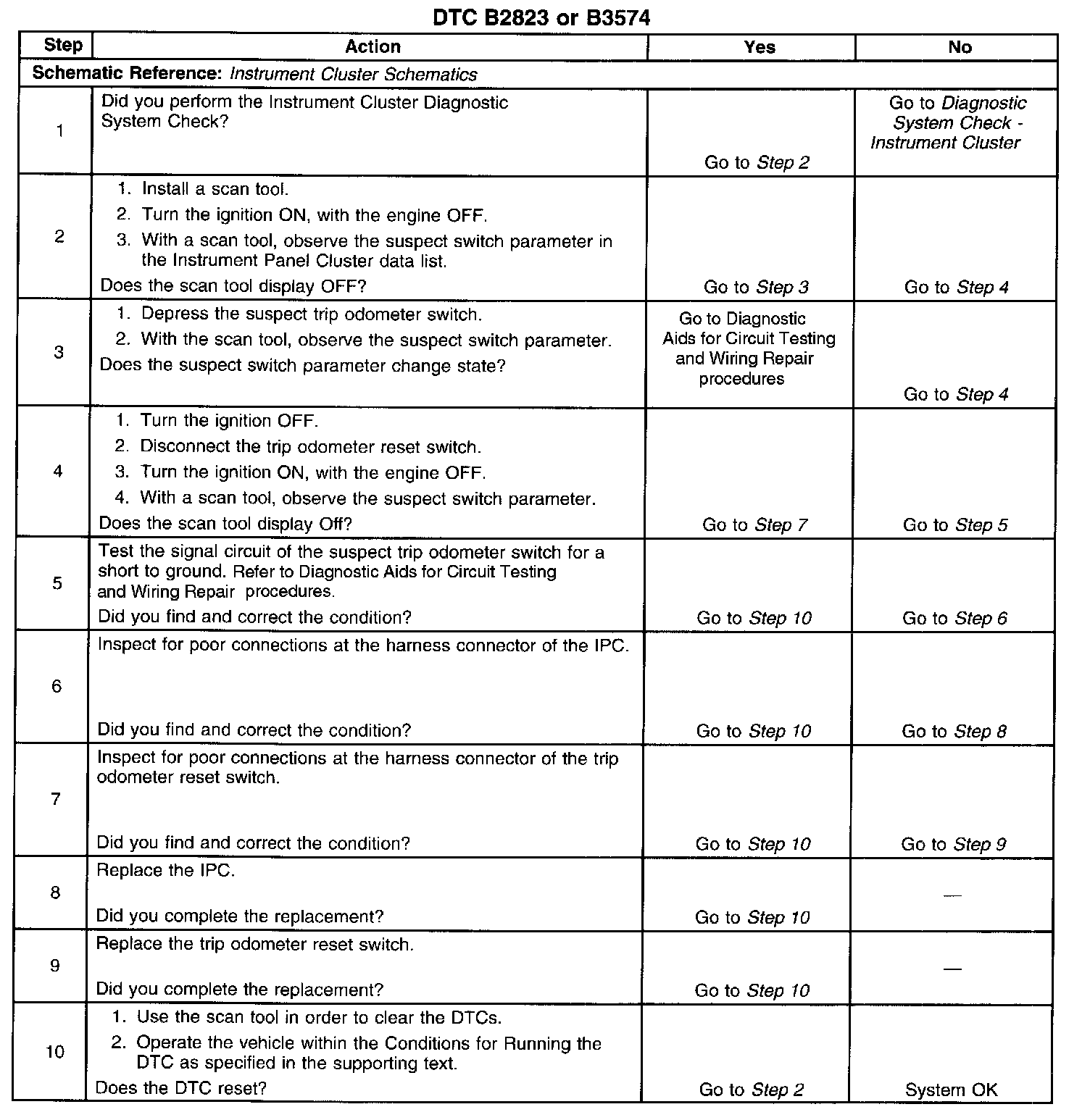

TEST

Steps 1-10:
