B2805

CIRCUIT DESCRIPTION
The steering wheel controls are simple momentary contact switches that connect a series of resistors so that each switch selection corresponds to a fixed resistance value. The dash integration module (DIM) determines which switch has been pressed by the voltage drop across the corresponding resistance value.

CONDITIONS FOR RUNNING THE DTC
The DIM must be powered.

CONDITIONS FOR SETTING THE DTC
One of the temperature switches must be active, stuck, for at least 30 seconds.

ACTION TAKEN WHEN THE DTC SETS
The DIM will disable all of the steering wheel control switches while the fault is present.

CONDITIONS FOR CLEARING THE DTC
^ The DTC will become history if the DIM no longer detects a failure.
^ The history DTC will clear after 50 fault-free ignition cycles.
^ Use the scan tool in order to clear the DTCs.

DIAGNOSTIC AIDS







If the condition is not present, refer to Testing for Intermittent and Poor Connections in Diagnostic Aids.

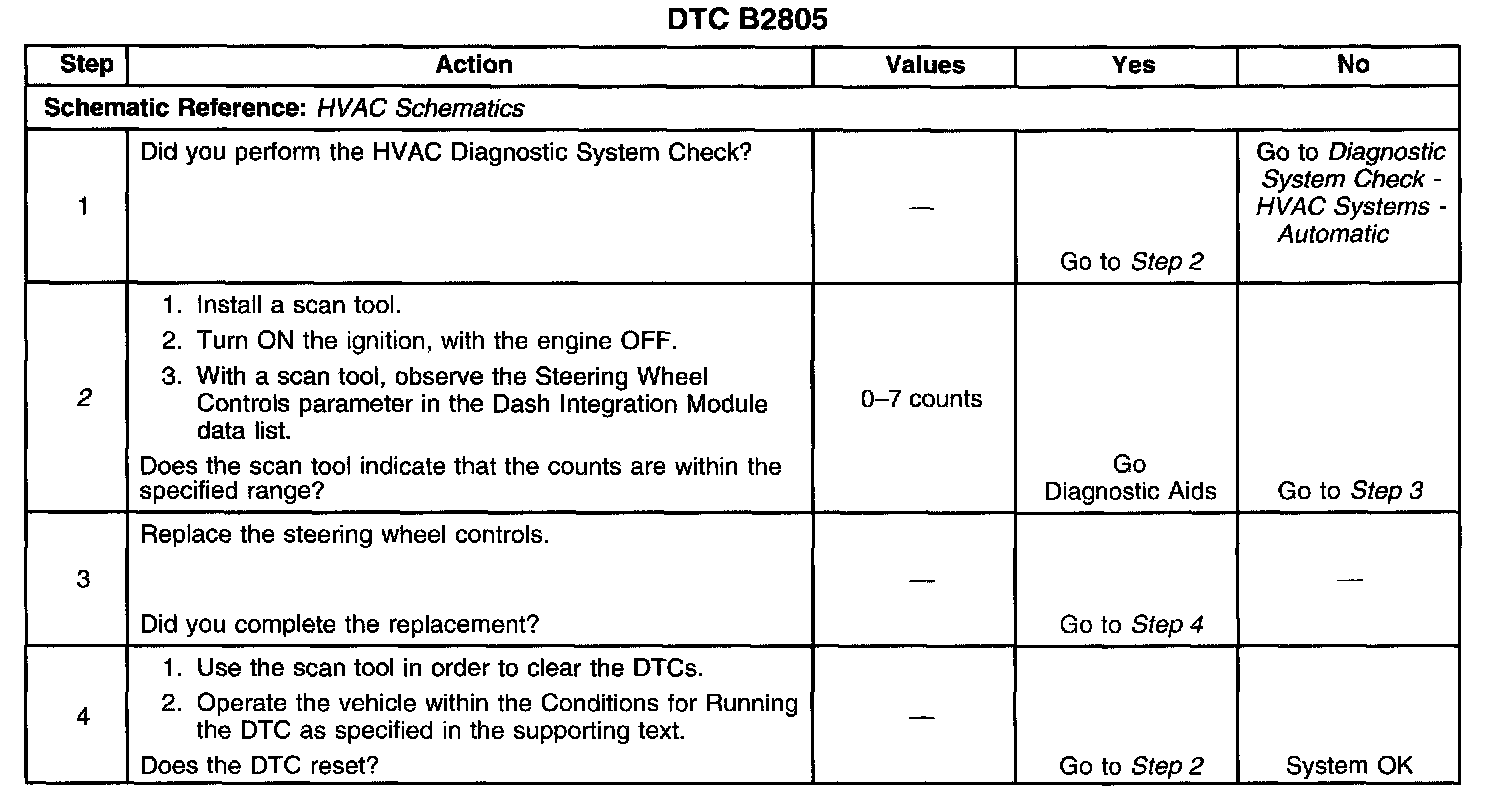

TEST DESCRIPTION

Steps 1-4:

The number below refers to the step number on the diagnostic table.

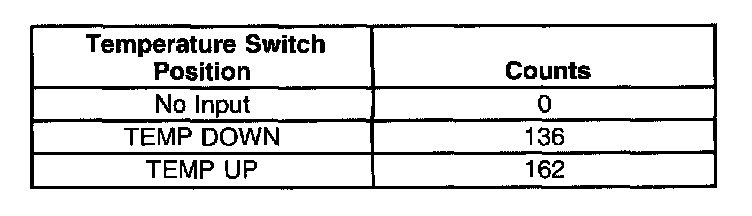

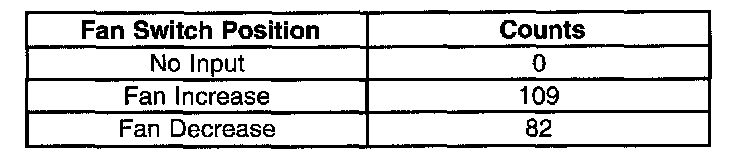

2. This step verifies that one of the temperature switches of the steering wheel controls is active. The value given is the normal condition that exists when no switch is activated.
