B1422

CIRCUIT DESCRIPTION
Normal vehicle class 2 communications will not commence until the system power mode has been identified. Four discrete wires from the ignition switch contacts are monitored by the dash integration module (DIM) in order to determine the present power mode. The DIM communicates the system power mode to all Class 2 modules on the Class 2 serial data circuit.

CONDITIONS FOR RUNNING THE DTC
The DIM must be powered.

CONDITIONS FOR SETTING THE DTC
One of the four monitored ignition switch circuits has malfunctioned.

ACTION TAKEN WHEN THE DTC SETS
The DIM implements default actions for each ignition switch position when faults are detected.

CONDITIONS FOR CLEARING THE DTC
^ A current DTC clears when the malfunction is no longer present.
^ A history DTC clears when the module ignition cycle counter reaches the reset threshold, without a repeat of the malfunction.

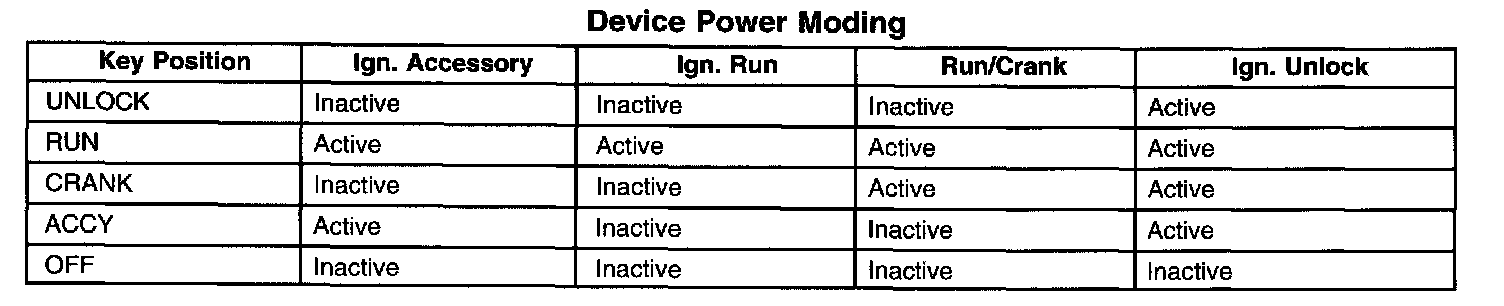

Device Power Moding:

DEVICE POWER_MODING

TEST DESCRIPTION

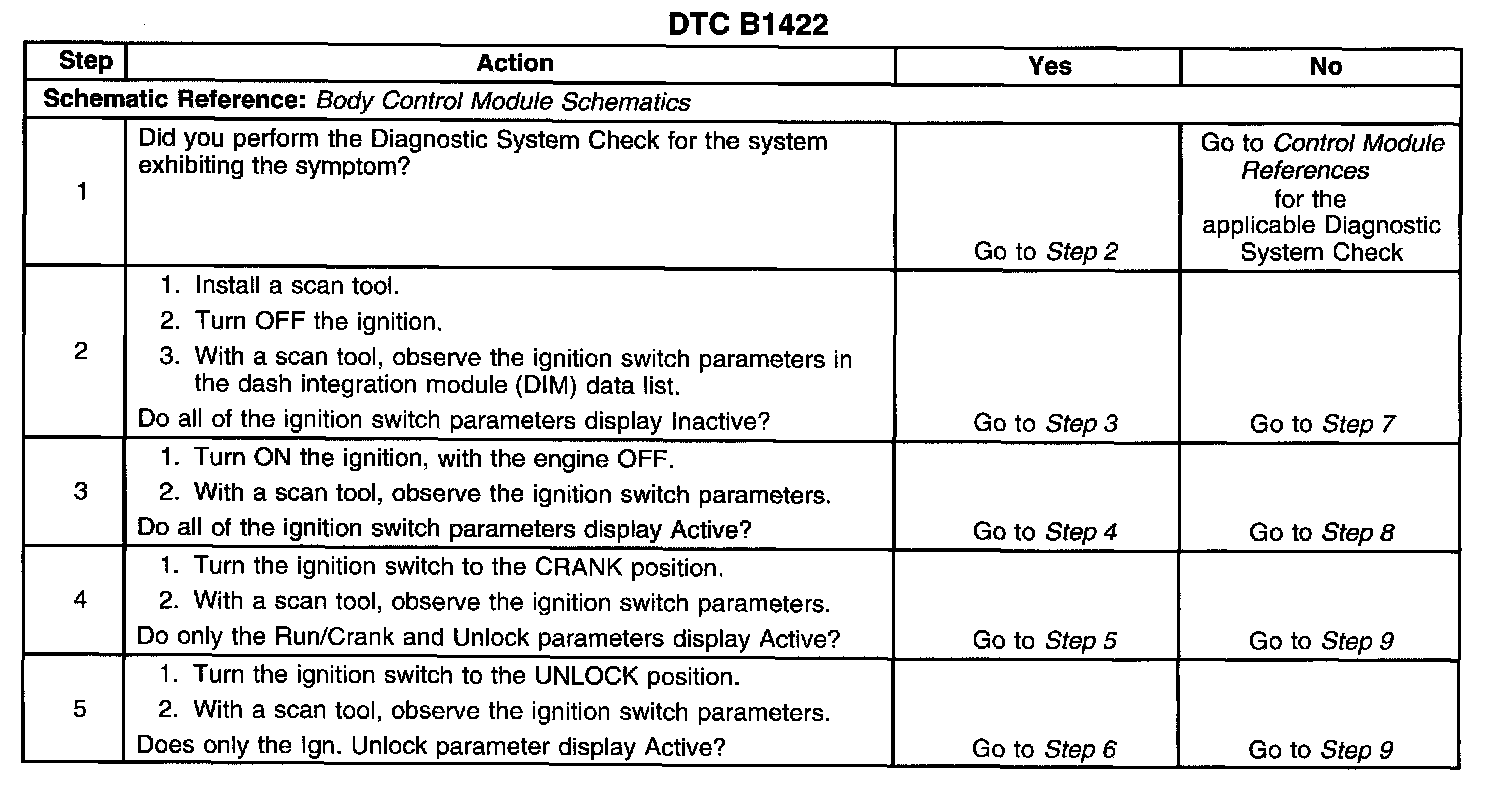

Steps 1-5:

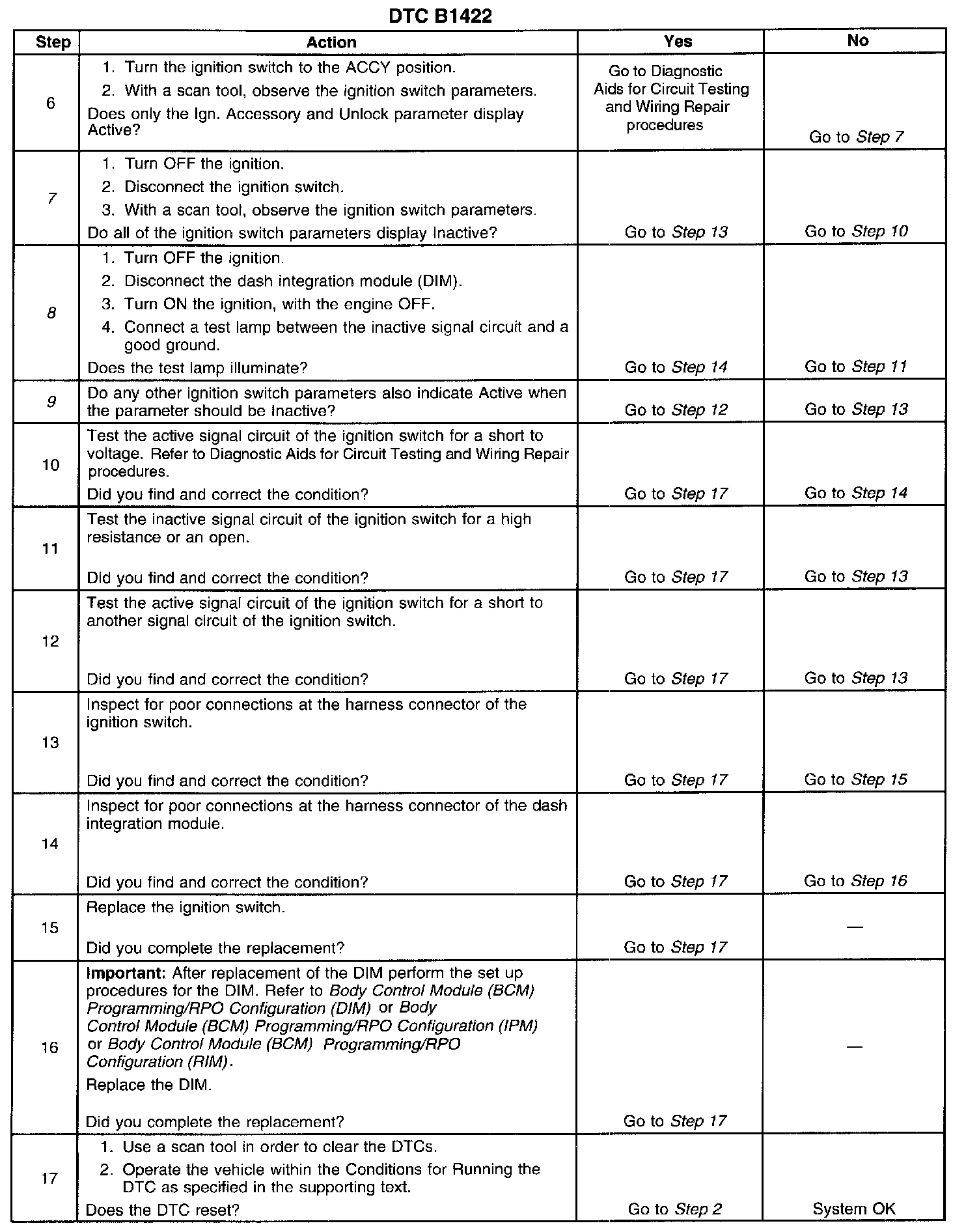

Steps 6-17:

The numbers below refer to the step numbers on the diagnostic table.
7. Tests for a short to battery voltage on the active signal circuit.
8. Tests the inactive signal circuit for an open or a high resistance.
9. If any ignition switch parameters that should be inactive in the present ignition switch position are active, 2 ignition switch signal circuits may be shorted together.
