B0029

CIRCUIT DESCRIPTION
The passenger side deployment loop consists of the following components:
^ An inflatable restraint side-impact module-RF
^ The inflatable restraint side-impact module wiring harness
^ The side-impact module-RF high circuits
^ The side-impact module-RF module low circuits

A shorting bar is used within the side-impact module- RF connector. The shorting bar will short together the side-impact module-RF high circuit, and the side-impact module-RF low circuit when the connector is disconnected. This helps prevent unwanted deployment of the inflator module during servicing. During a side or frontal crash of sufficient force, the inflatable restraint sensing and diagnostic module (SDM) will allow current to flow through the deployment loop. This flow of current will deploy the side-impact module-RF. The SDM performs continuous diagnostic tests on the deployment loops to check for proper circuit continuity and for shorts to ground or voltage. If a malfunction is detected, a DTC will be stored in memory.

CONDITIONS FOR RUNNING THE DTC
Ignition 1 voltage is within the normal operating voltage range.

CONDITIONS FOR SETTING THE DTC
^ DTC B0028 will set when the side-impact module RF deployment loop resistance is less than 1.3 ohms for 500 milliseconds.
^ DTC B0029 will set when one of the following conditions occurs:
- A side-impact module-RF high circuit is less than 2.4 volts and the side-impact module- RF deployment loop is more than 6 ohms for 500 milliseconds.
- A side-impact module-RF deployment loop resistance is more than 4.8 ohms for 500 milliseconds.
^ DTC B0030 will set when one of the following conditions occur:
- A side-impact module-RF high circuits and/or low circuits is short-to-ground, or short-to-voltage for 500 milliseconds.
- A side-impact module-RF high circuit is less than 2.4 volts and side-impact module-RF deployment loop resistance is less than 6 ohms for 500 milliseconds.

ACTION TAKEN WHEN THE DTC SETS
The SDM commands the AIR BAG indicator ON via Class 2 serial data.

CONDITIONS FOR CLEARING THE DTC
^ The condition responsible for setting the DTC does is not currently present, and the scan tool Clear DTCs function is used.
^ A history DTC will clear once 255 malfunction free ignition cycles have occurred.

DIAGNOSTIC AIDS
The following conditions are possible causes of the malfunction:
^ A short between the side-impact module-RF high circuits and low circuits.
^ An open or a high resistance in the side-impact module-RF high or low circuits.
^ A short-to-ground or a short-to-voltage in the side-impact module-RF high circuits or low circuits.
^ A malfunctioning side-impact module-RF connector
^ A malfunctioning SDM connector
^ A malfunctioning side-impact module-RF
^ A malfunctioning SDM

Thoroughly inspect the wiring and the connectors. An incomplete inspection of the wiring and the connectors may result in a misdiagnosis, causing a part replacement with the reappearance of the malfunction. If an intermittent malfunction exists, refer to Testing for Intermittent and Poor Connections in Diagnostic Aids.

TEST DESCRIPTION

Steps 1-5:

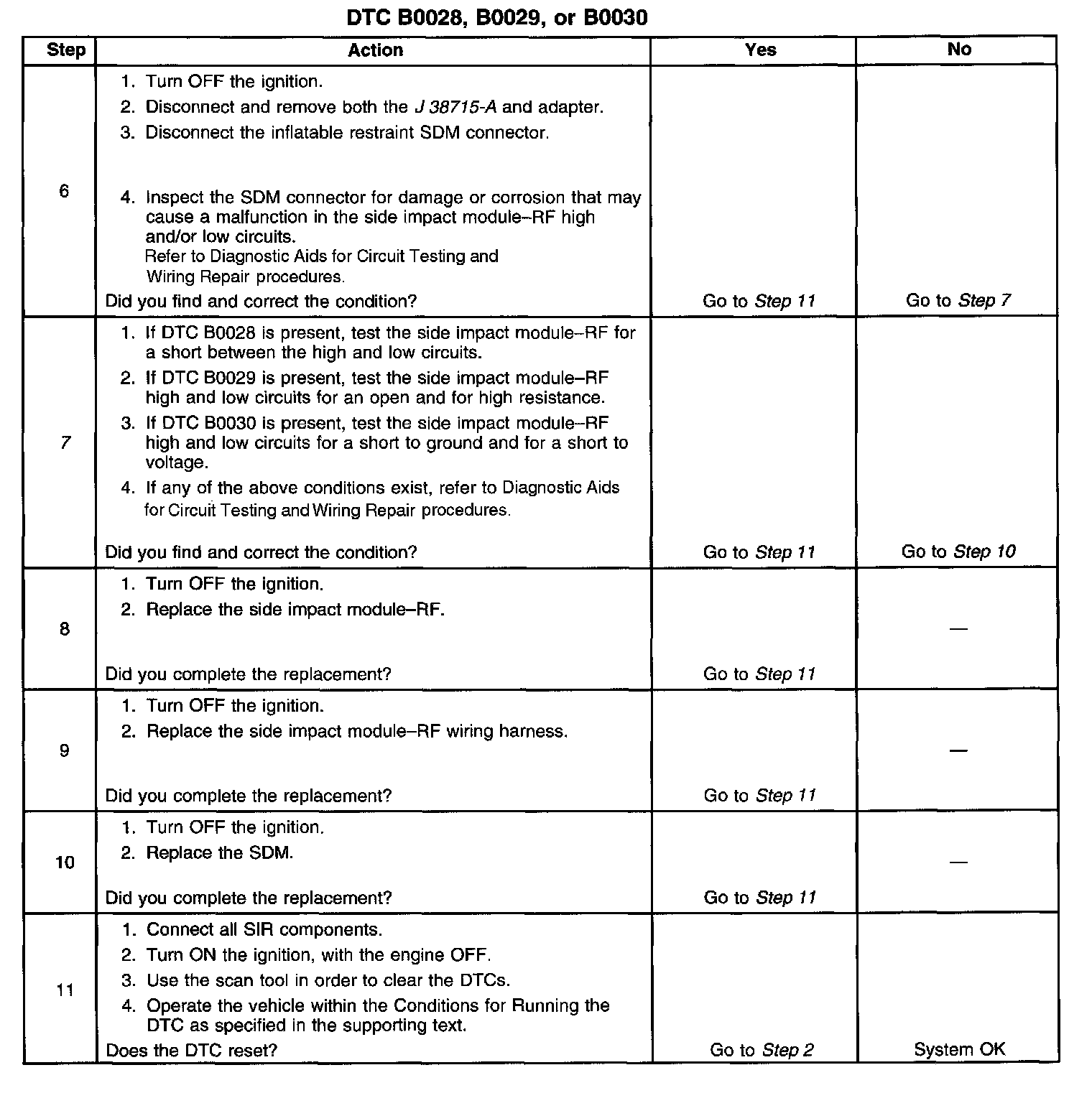

Steps 6-11:

The numbers below refer to the step numbers on the diagnostic table.
5. Tests if the malfunction is caused by the side-impact module-RF, or by the side-impact module-RF wiring harness.
7. Determines which DTCs are present. If DTC B0028 is present, test the side-impact module-RF for a short between high circuits and low circuits. If DTC B0029 is present, test the side-impact module-RF high circuits and low circuits for an open and for high resistance. If DTC B0030 is present, test the side-impact module-RF high circuits and low circuits for a short-to-ground, or a short-to-voltage.
