Home >> Oldsmobile >> 2002 >> Alero L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Fuse Block - Left I/P, C1, C2 - Bottom View

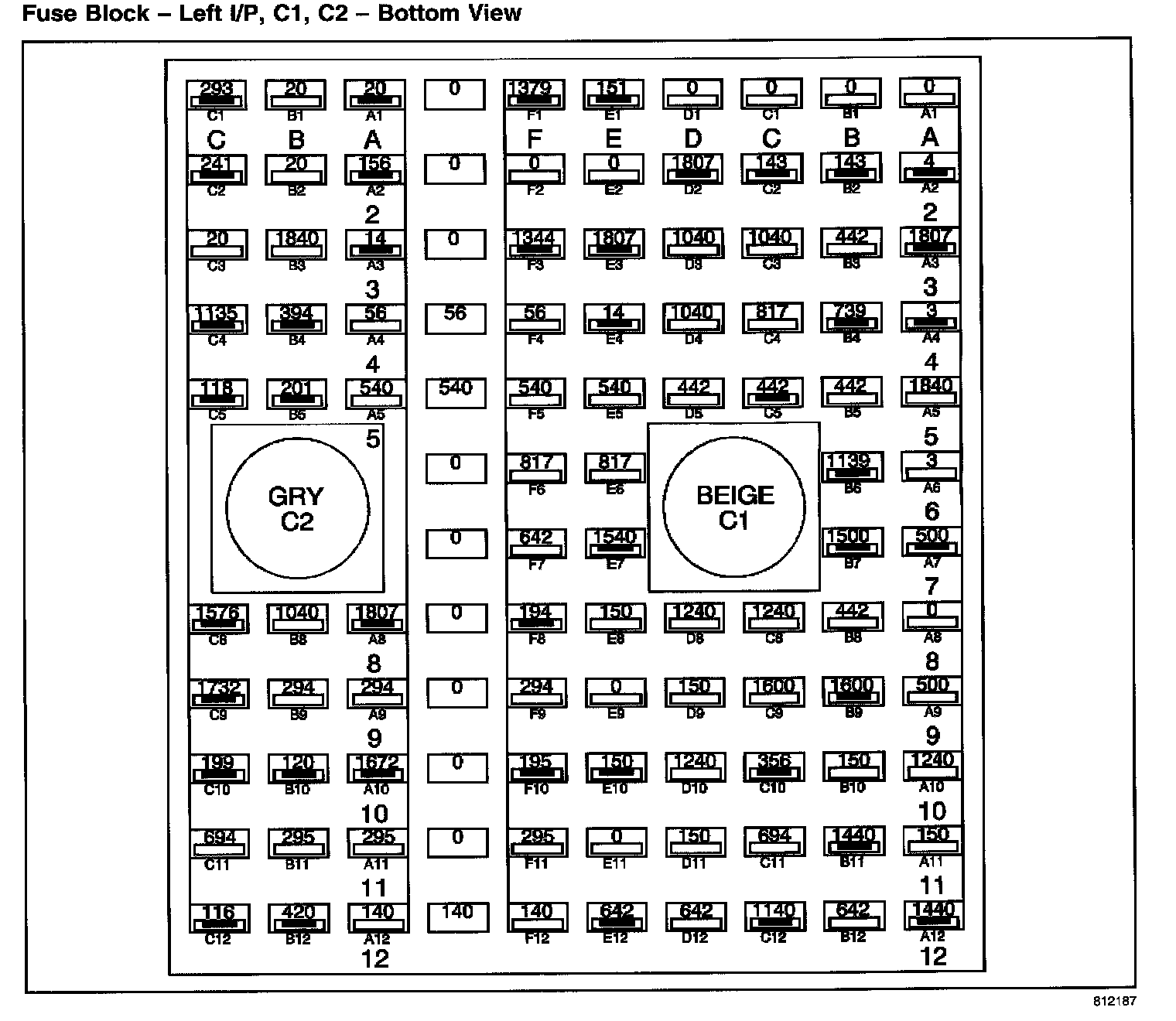

Fuse Block - Left I/P, C1, C2 - Bottom View

Fuse Block - Left I/P, C1, C2 - Bottom View:
