Home >> Oldsmobile >> 2002 >> Alero L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Components >> Relays >> EXPORT

EXPORT

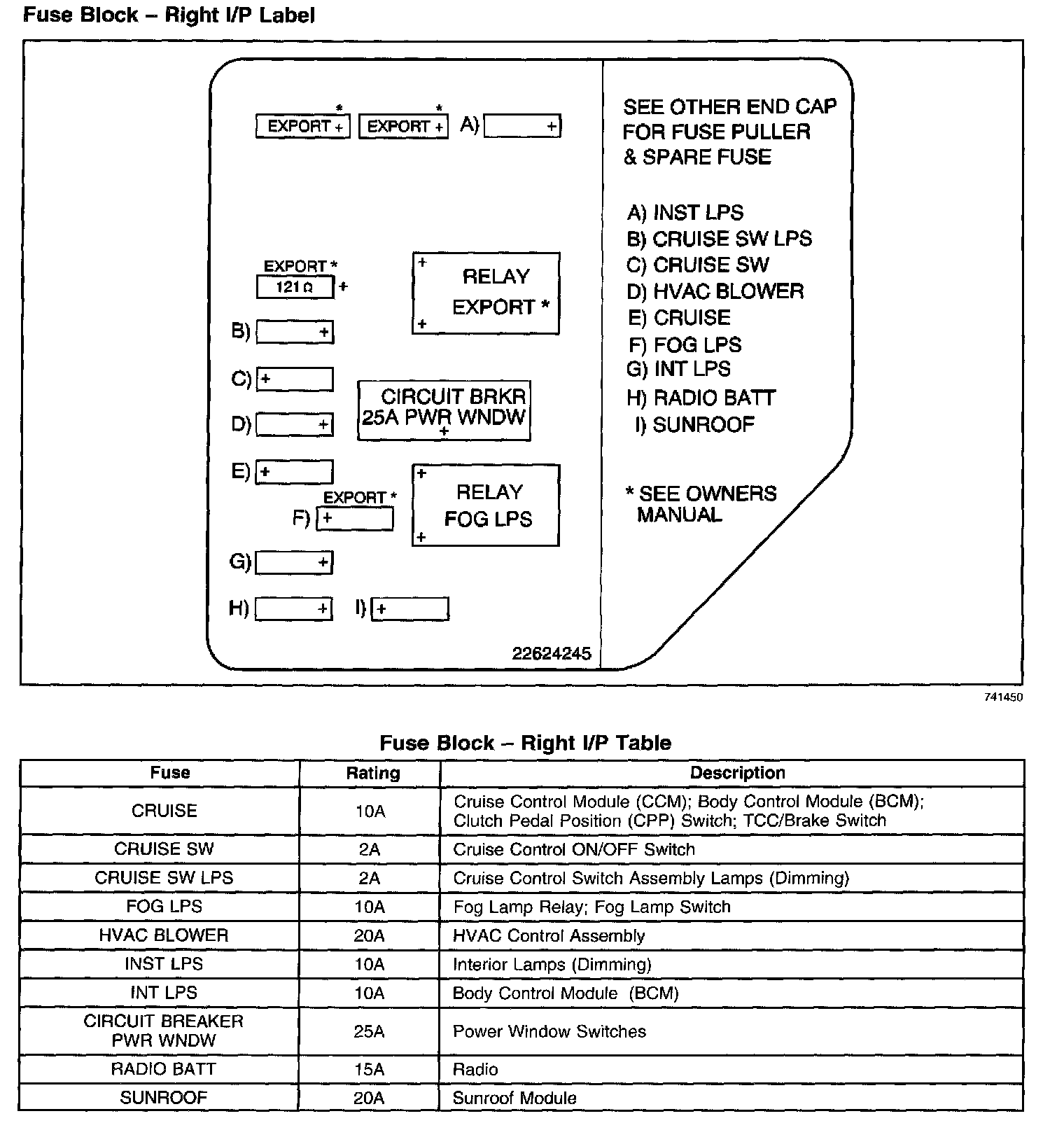

Fuse Block - Right I/P Label:
