Washer Solvent Container Replacement

REMOVAL PROCEDURE




1. Remove the right front wheelhouse extension.

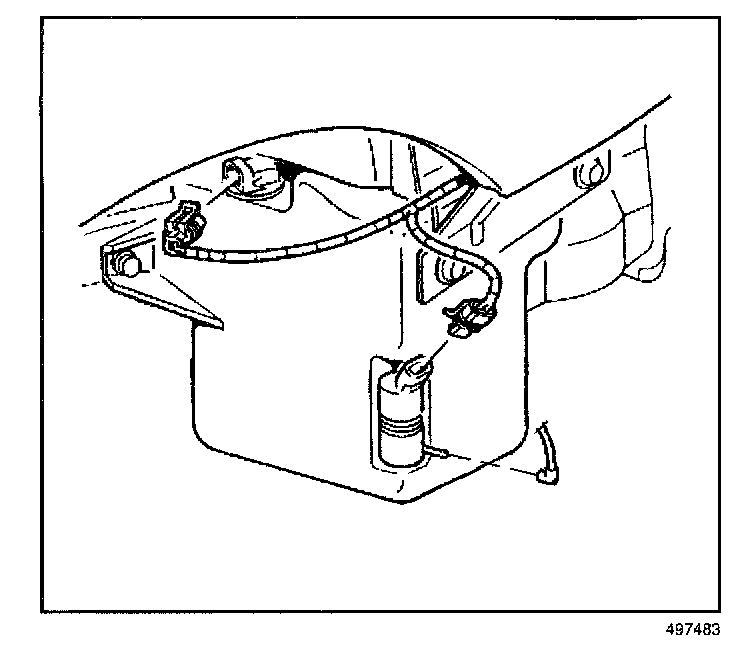

2. Disconnect the washer hose from the washer pump.
3. Disconnect the electrical connector from the washer pump.
4. Disconnect the electrical connector from the washer solvent level sensor.

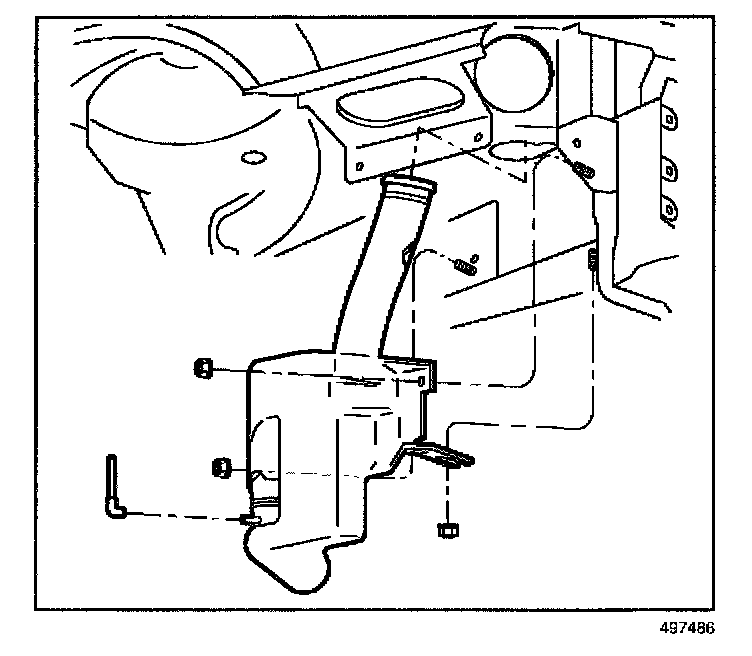

5. Remove the three nuts from the washer solvent container.
6. Remove the washer solvent container from the vehicle.

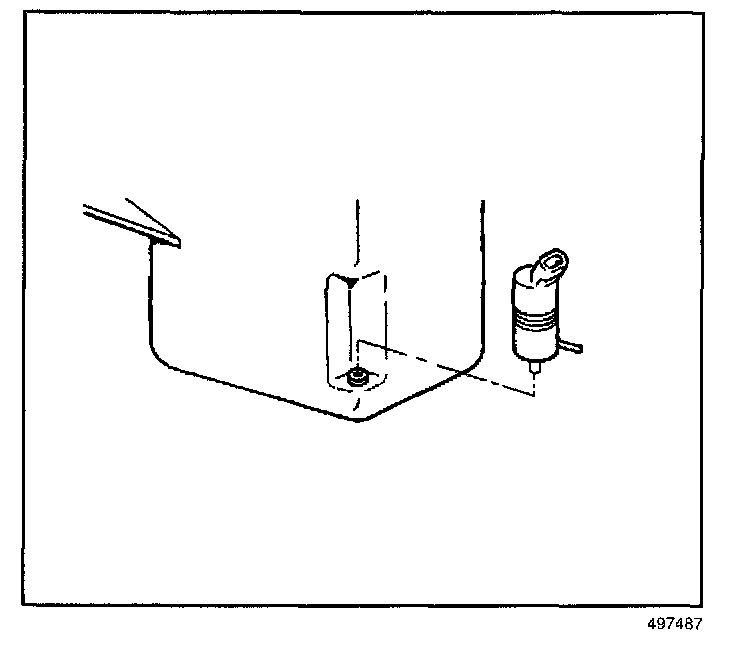

7. Remove the washer pump from the washer solvent container.

INSTALLATION PROCEDURE




1. Install the washer pump in the washer solvent container.




2. Install the washer solvent container on the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the three nuts.

Tighten
Tighten the three nuts to 6 N.m (53 lb in).




4. Connect the electrical connector to the washer solvent level sensor.
5. Connect the electrical connector to the washer pump.
6. Connect the washer hose to the washer pump.
7. Install the right front wheelhouse extension.
