Rear Door Window Motor: Service and Repair

Rear Side Door Window Regulator Motor Replacement

Removal Procedure

1. Close the window.
2. Remove the door trim panel. Refer to Rear Side Door Trim Panel Replacement Service and Repair
3. Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement (Service and Repair).




4. Remove the window regulator. Refer to Rear Side Door Window Regulator Replacement (Service and Repair).

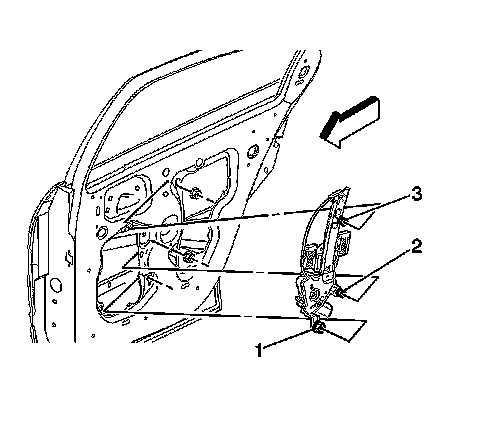

5. Remove the fasteners (1,2,3) securing the power window motor to the window regulator.
6. Remove the power window motor from the regulator.

Installation Procedure

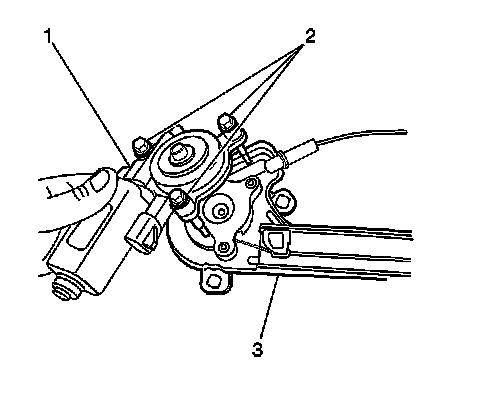

1. Install the power window motor (1) to the window regulator (3).

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the power window motor to regulator fasteners.

Tighten the power window motor fasteners to 4 Nm (62 lb in).




3. Install the window regulator. Refer to Rear Side Door Window Regulator Replacement (Service and Repair).
4. Check for proper operation of the window motor.
5. Reinstall the water deflector. Refer to Rear Side Door Water Deflector Replacement (Service and Repair).
6. Install the door trim panel. Refer to Rear Side Door Trim Panel Replacement Service and Repair
