Power Windows - Left Rear Window Switch And Motor
Power Windows - Left Rear Window Switch And Motor

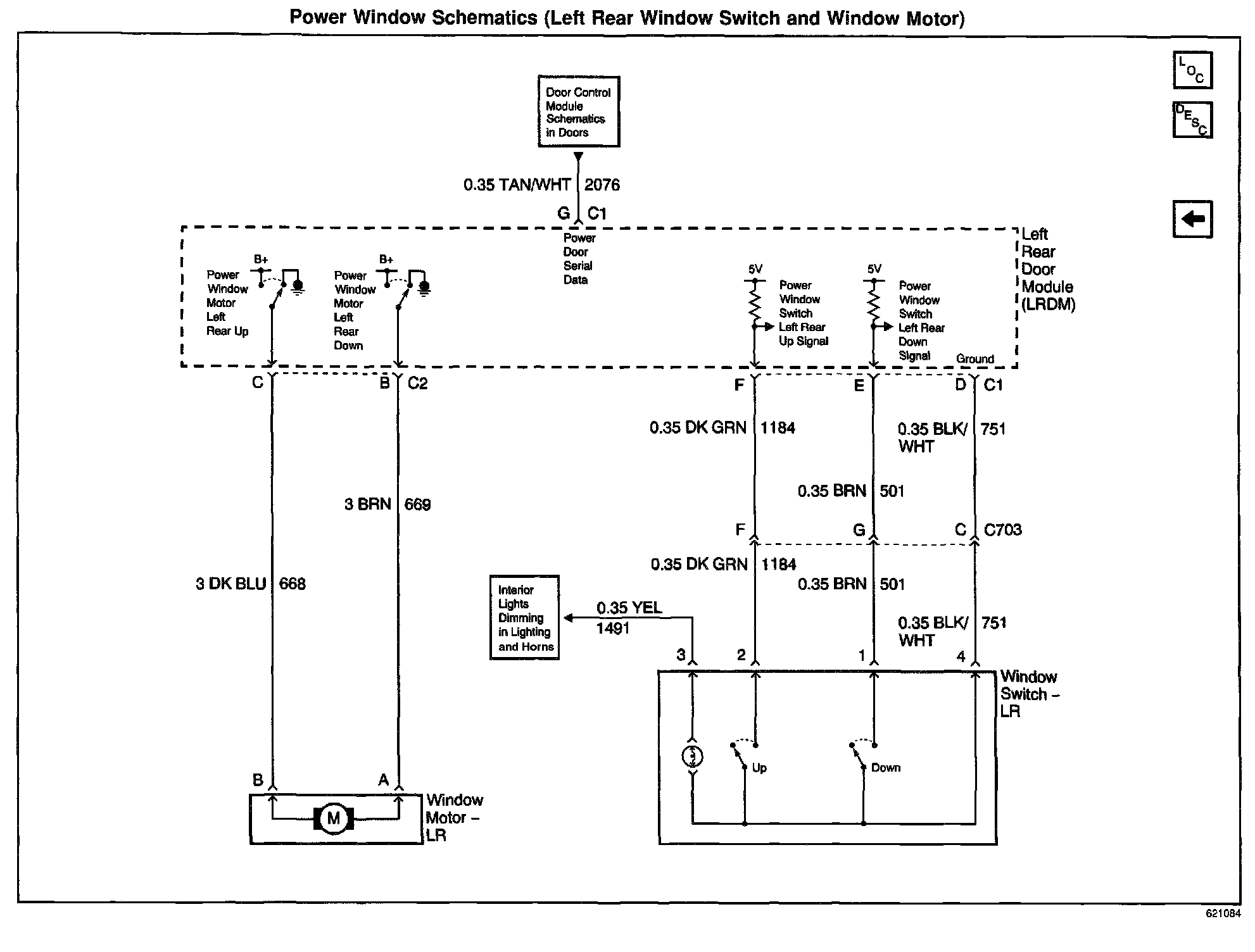

Power Window Schematics: Left Rear Window Switch And Window Motor:
