Home >> Oldsmobile >> 2001 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Windows and Glass >> Heated Glass Element >> Diagrams >> Electrical Diagrams >> Inside Rearview Mirror Schematics >> With RPO Code UE1

With RPO Code UE1

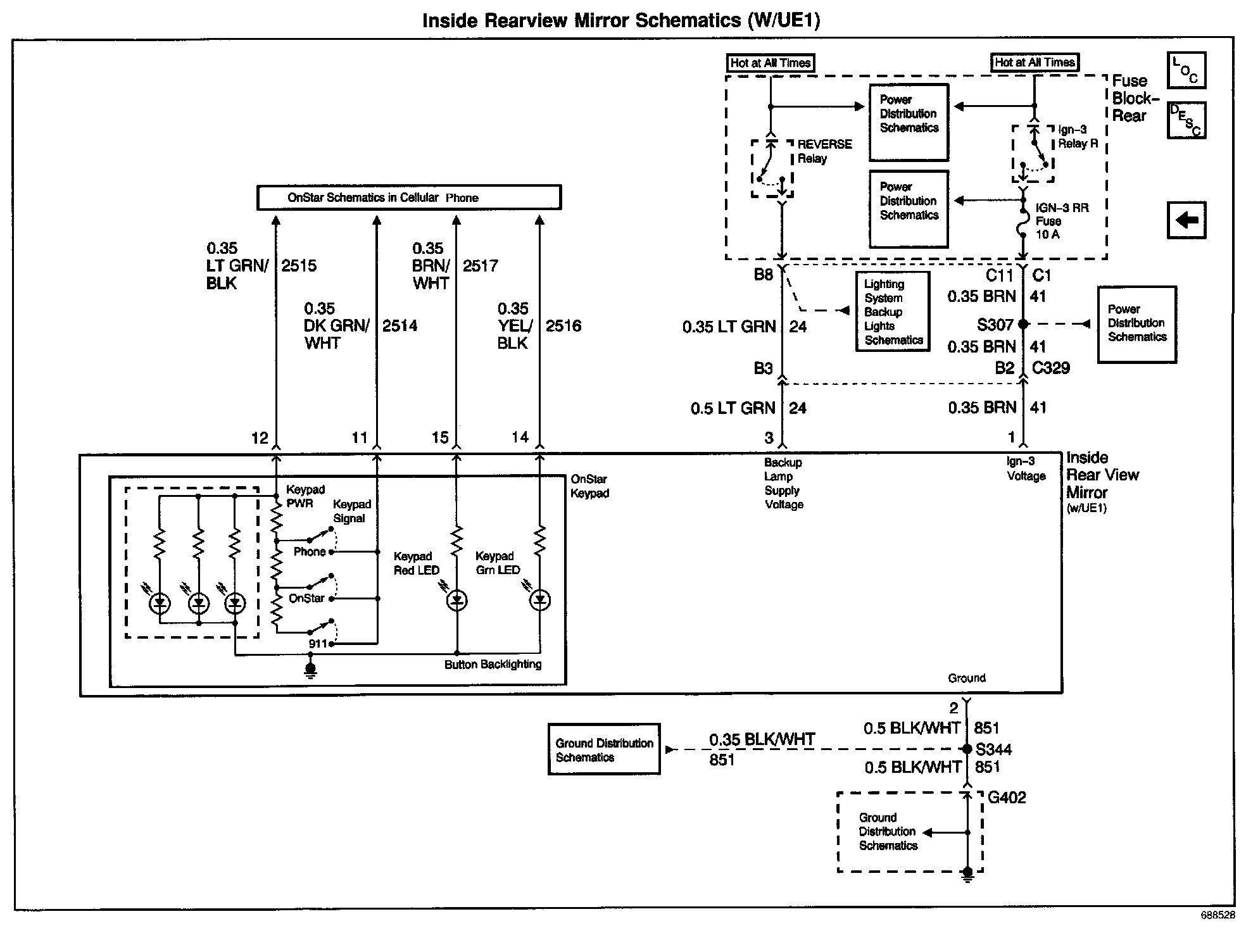

Inside Rearview Mirror Schematics: W/UE1:
