Rear

Automatic Transmission Mount Replacement - Rear

Removal Procedure





1. Remove the engine frame.

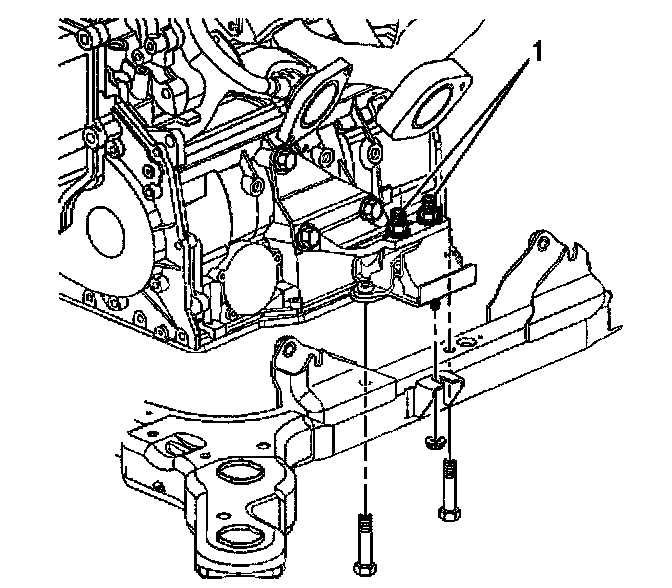

2. Remove the mount (1) from the mount bracket.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.

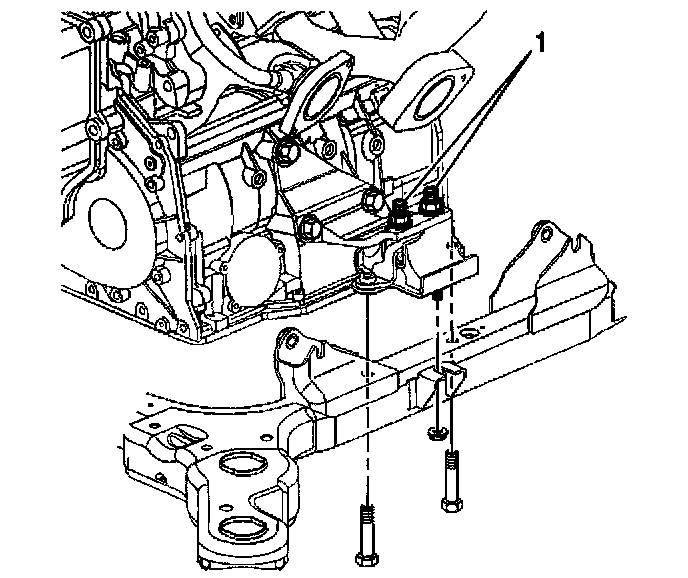

1. Install the right transmission mount (1) into the mount bracket and install the mount nuts.
^ Tighten the mount nuts to 50 Nm (37 ft. lbs.).
2. Install the engine frame.
