Automatic Transmission Mount Bracket Replacement - Rear
Automatic Transmission Mount Bracket Replacement - RearRemoval Procedure
1. Remove the engine frame.

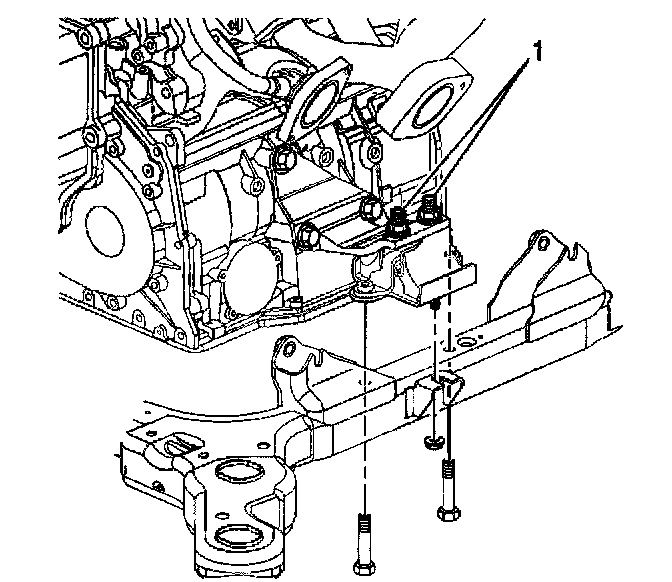

2. Remove the mount (1) from the mount bracket.

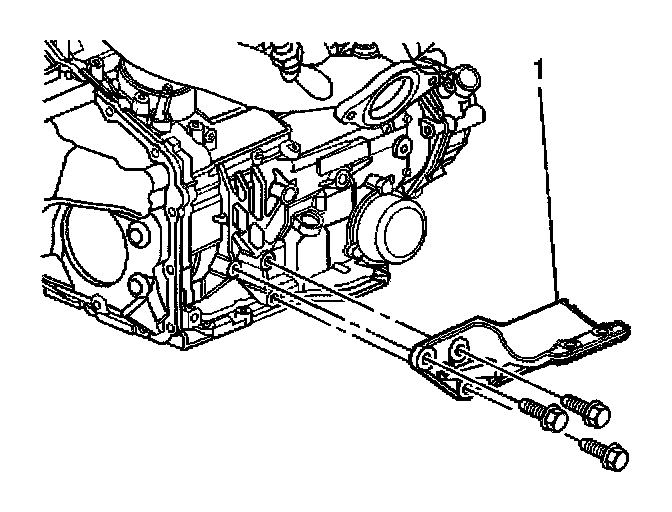

3. Remove the three retaining bolts from the mount bracket (1)
4. Remove the mount bracket from the vehicle.
Installation Procedure
Notice: Refer to Fastener Notice in Service Precautions.
1. Install the retaining bolts to the mount bracket.
^ Tighten the retaining bolts to 63 Nm (46 ft. lbs.).
2. Install the right transmission mount (1) into the mount bracket and install the mount nuts.
^ Tighten the mount nuts to 50 Nm (37 ft. lbs.).
3. Install the engine frame.
