Automatic Transmission Mount Bracket Replacement

Automatic Transmission Mount Bracket Replacement

Removal Procedure





1. Remove the engine frame.
2. Remove the mount from the mount bracket.

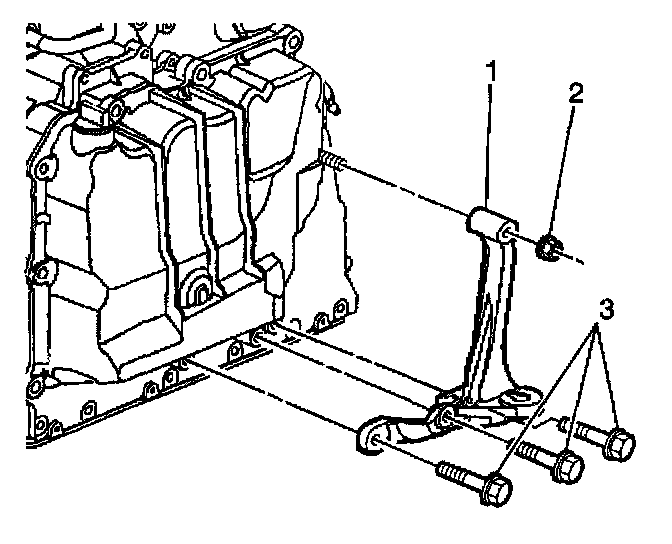

3. Remove the transmission mount bracket (1).

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.

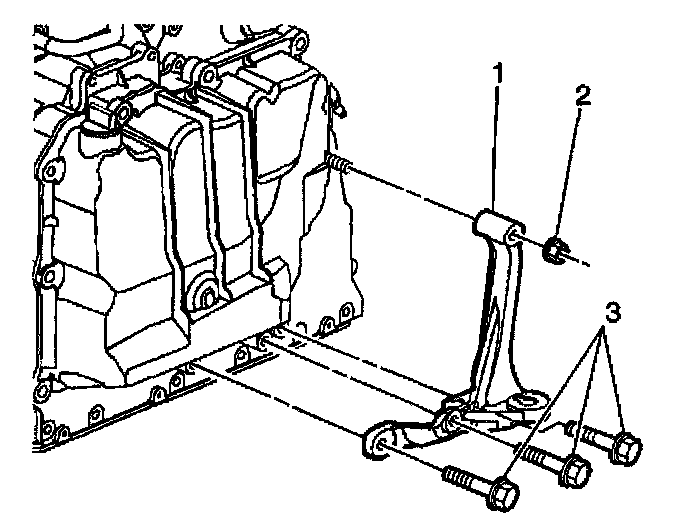

1. Install the transmission mount bracket (1) to the transmission.
^ Tighten the bracket bolts and nut to 50 Nm (37 ft. lbs.).
2. Install the transmission mount to the bracket.
3. Install the engine frame.
