Torque Converter Cover Replacement

Torque Converter Cover Replacement

Removal Procedure





1. Raise the vehicle. Support the vehicle. Refer to Vehicle Lifting.

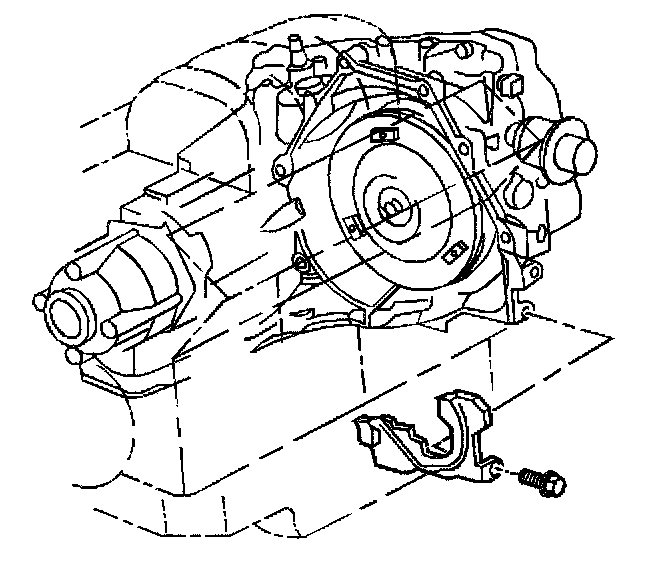

2. Remove the converter cover bolts.
3. Remove the converter cover.

Installation Procedure





1. Install the converter cover.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the converter cover attaching bolts.
^ Tighten the bolts to 13 Nm (115 inch lbs.).
3. Lower the vehicle.
