Flywheel to Torque Converter Bolts

Flywheel to Torque Converter Bolts

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.

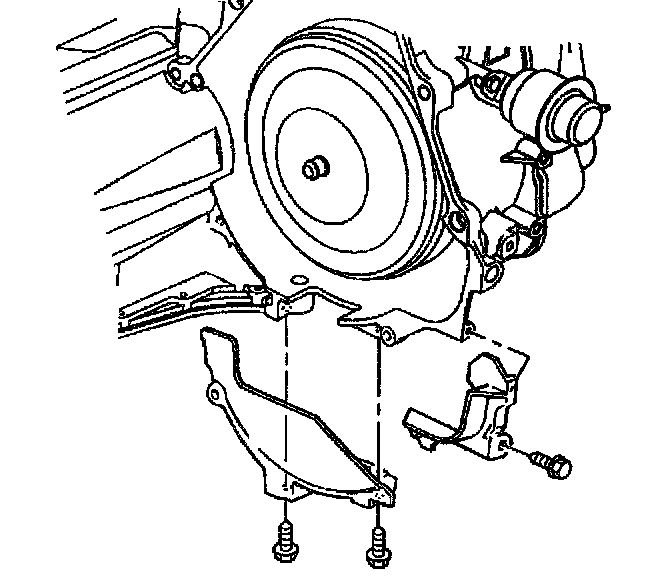

2. Remove the torque converter cover(s).
3. Remove the flywheel to torque converter bolt(s).

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the flywheel to torque converter bolt(s).
^ Tighten the flywheel to torque converter bolt(s) to 63 Nm (47 ft. lbs.).

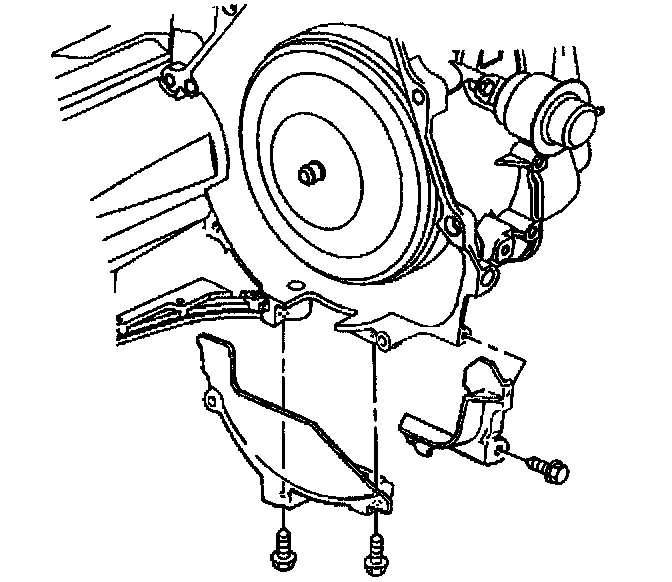

2. Install the torque converter cover(s).
3. Lower the vehicle.
