Automatic Transmission Range Selector
Automatic Transmission Range Selector Cable ReplacementRemoval Procedure
1. Set the park brake and chock the wheels.

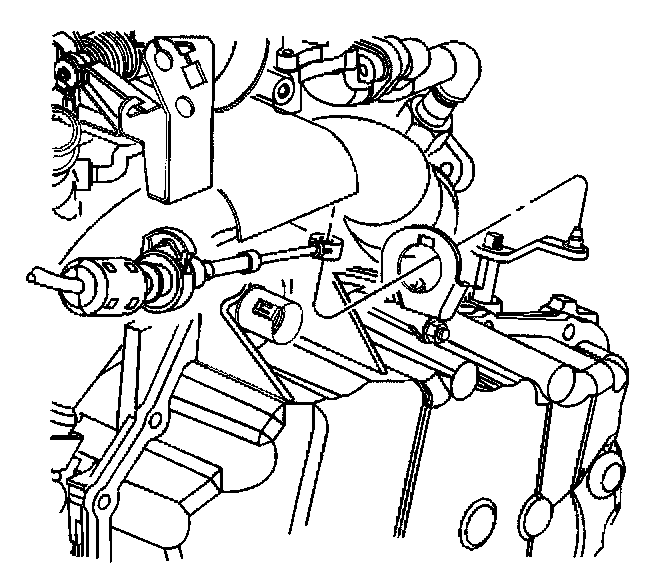

2. Fully lift the retainer from the transaxle range selector cable mechanism.

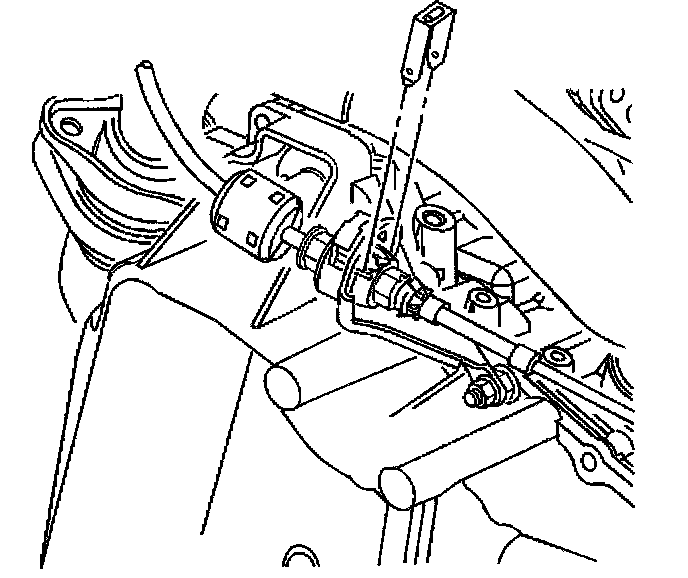

3. Disconnect the transaxle range selector cable terminal from the transaxle manual shift lever pin.
4. Press the locking tabs inward in order to release the transaxle range selector cable from the bracket.
5. Remove the left console trim panel.
6. Remove the console trim plate.
7. Disconnect the transaxle range selector cable terminal from the shift lever pin.

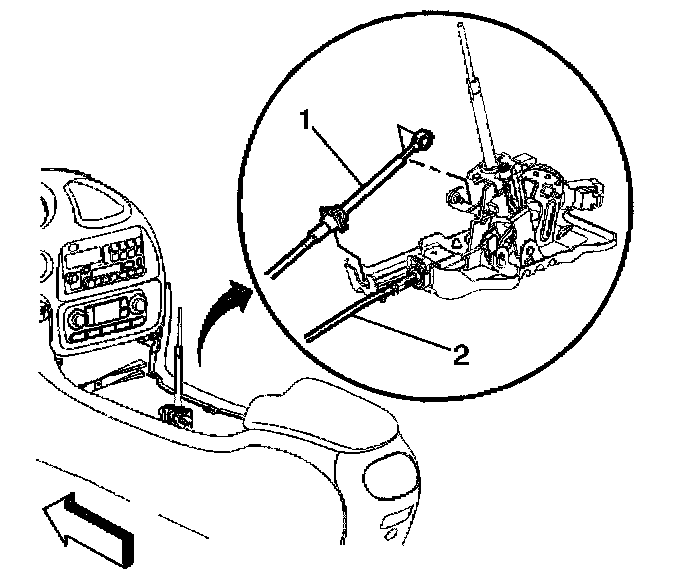

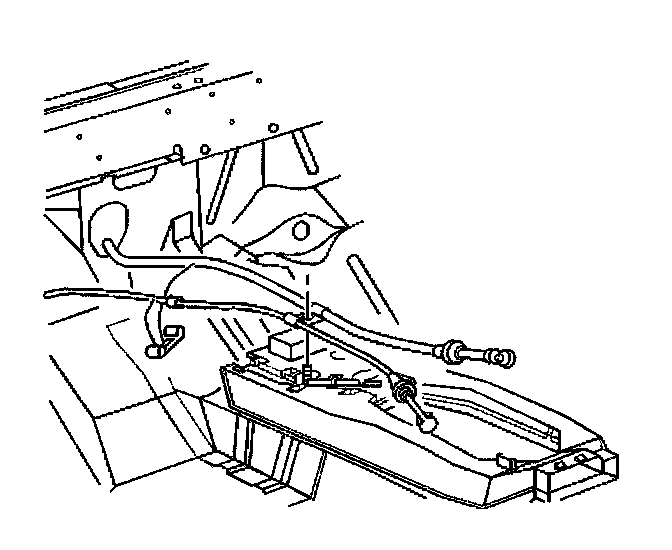

8. Pull the lock release and remove the transaxle range selector cable (1) from the console.
9. Remove the cable from the vehicle.
Installation Procedure
1. Install the shift control cable to the vehicle.

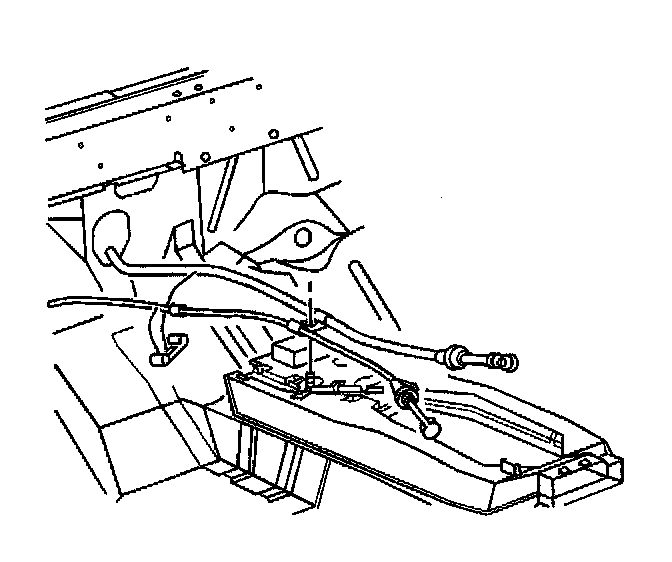

2. Slide the transaxle range selector cable (1) fully into the console until it snaps into place.
3. Connect the transaxle range selector cable terminal to the shift lever pin.
4. Install the console trim plate.
5. Install the left console trim panel.

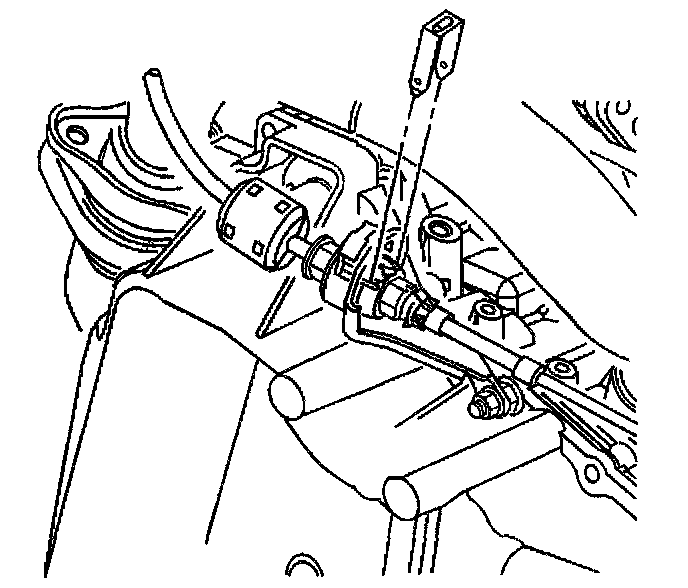

6. Insert the transaxle range selector cable into the bracket.
7. Connect the transaxle range selector cable terminal to the transaxle manual shift lever pin.

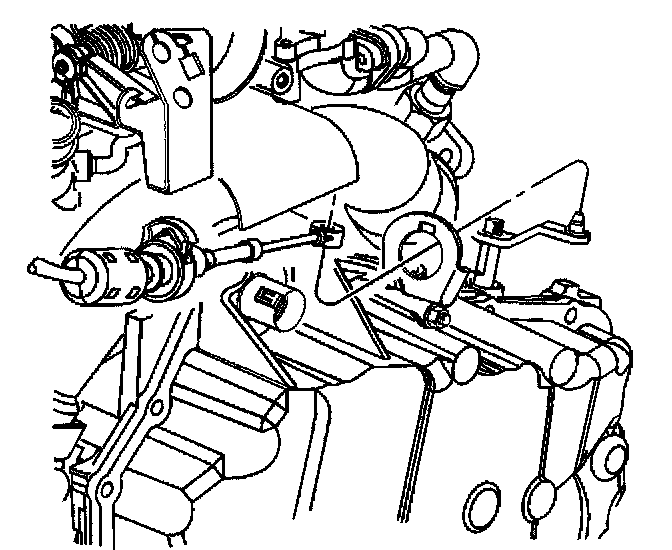

8. Install the retainer to the transaxle range selector cable mechanism.
9. Adjust the automatic transmission range selector cable.
