Lower Channel Plate, Control Valve Body & Accum. Housing Ass.

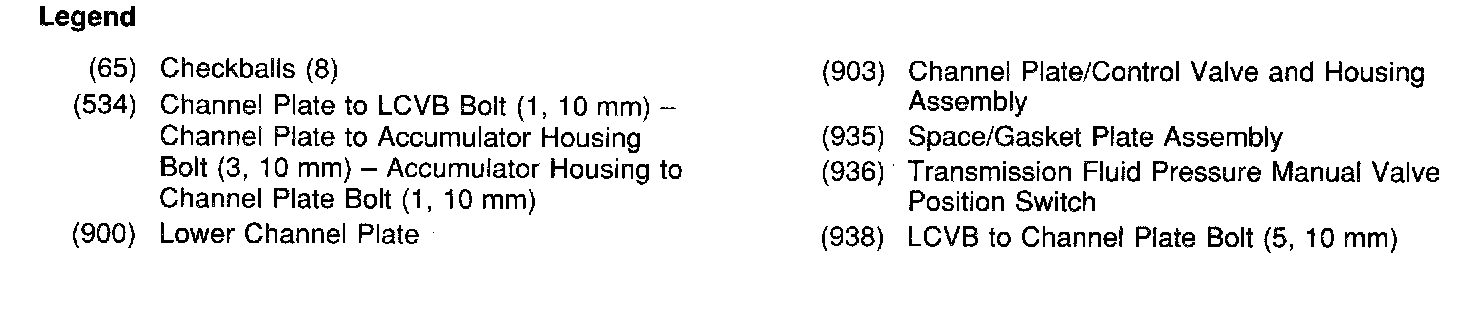

Part 1 of 3

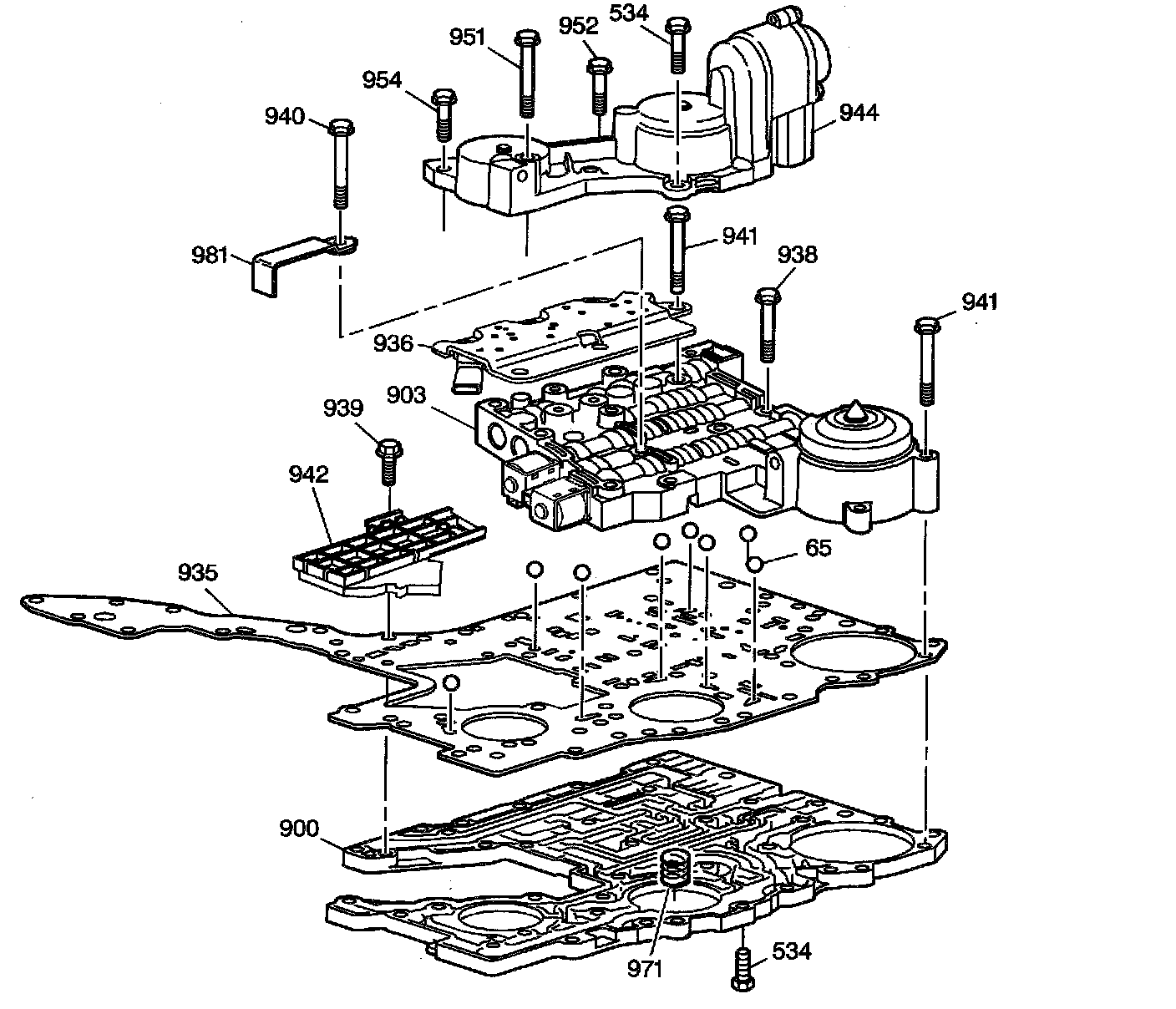

Part 2 of 3

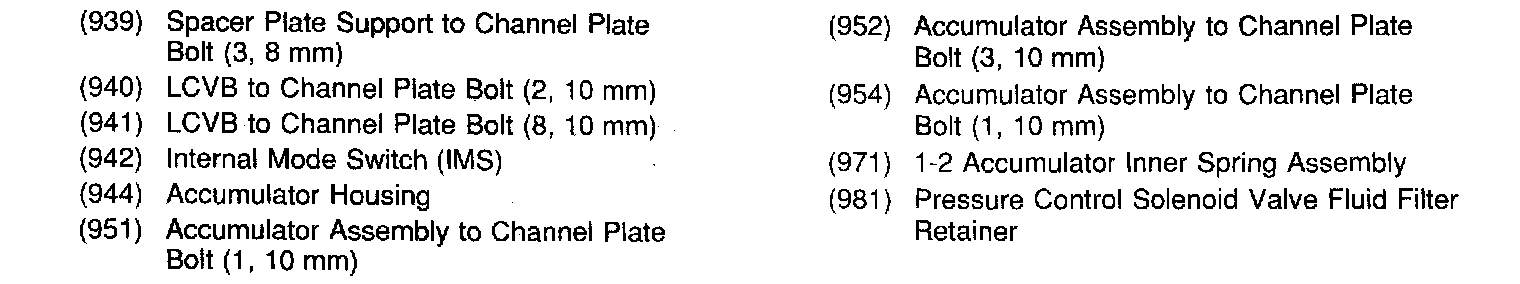

Part 3 of 3

Lower Channel Plate, Control Valve Body and Accumulator Housing Assembly
