Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Locations
>>
4T80-E Automatic Transaxle
>>
Disassembled Views
>>
Case and Associated Parts
Case and Associated Parts

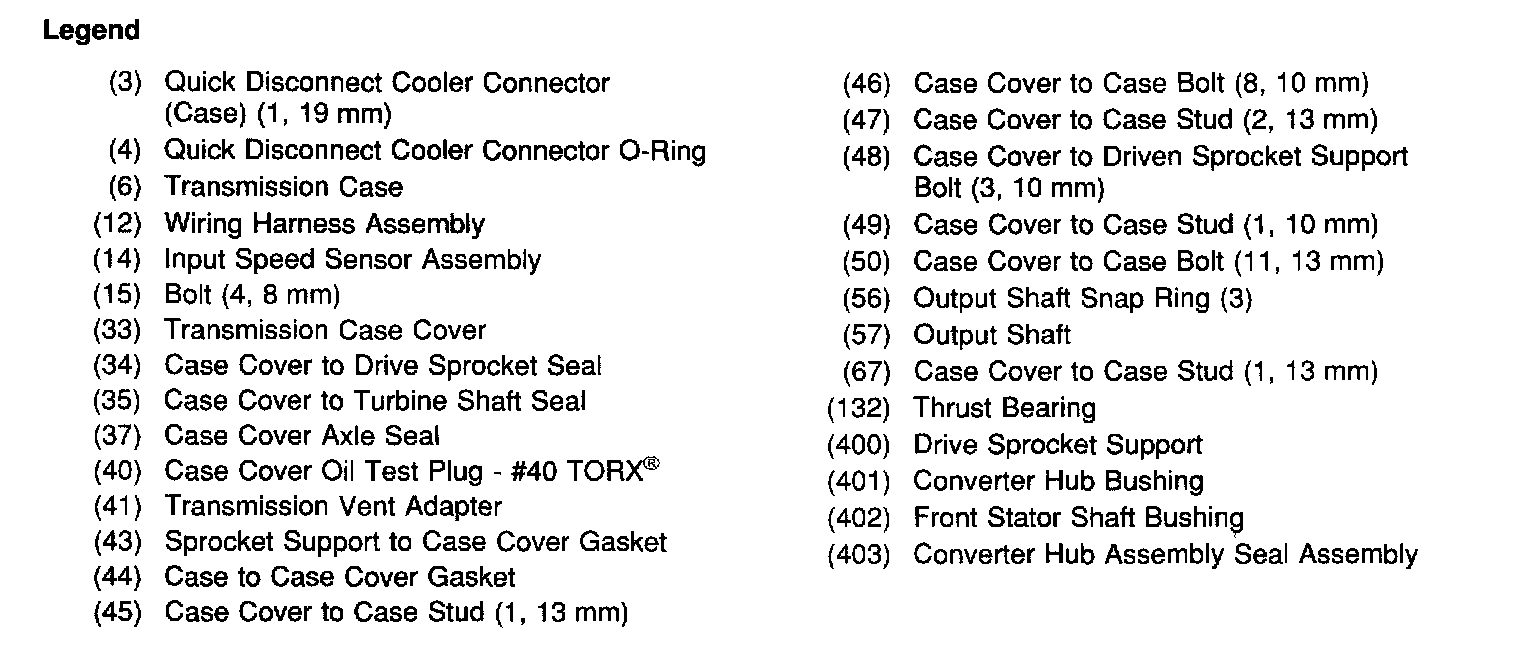

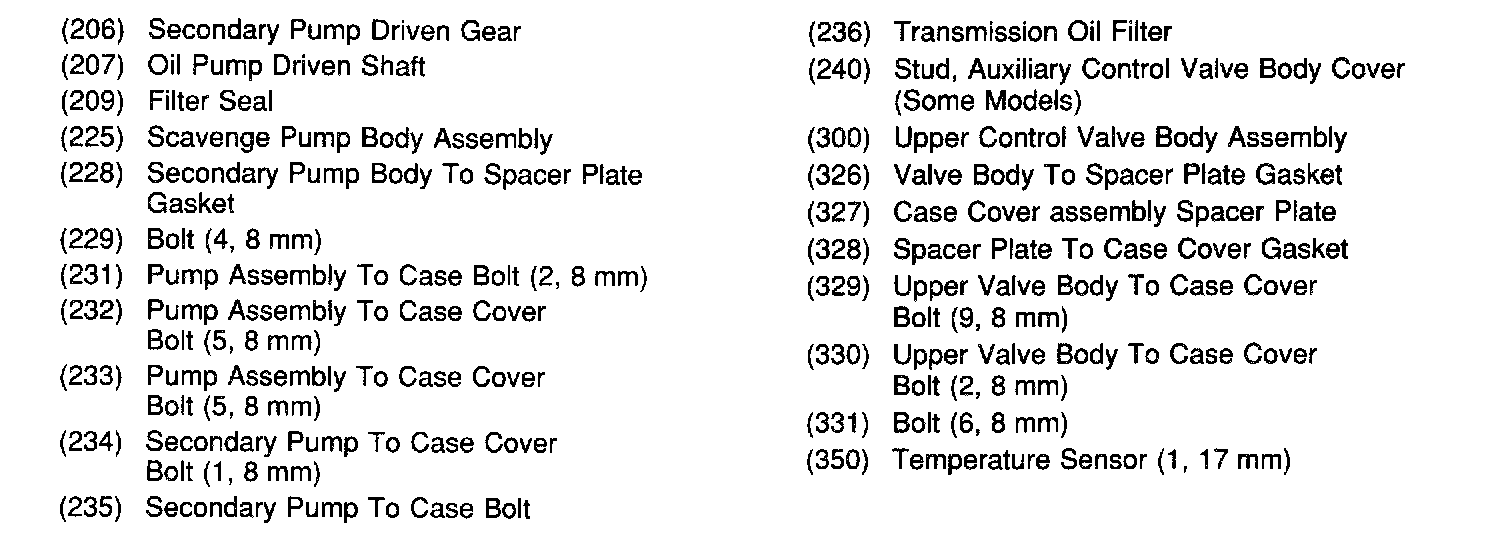

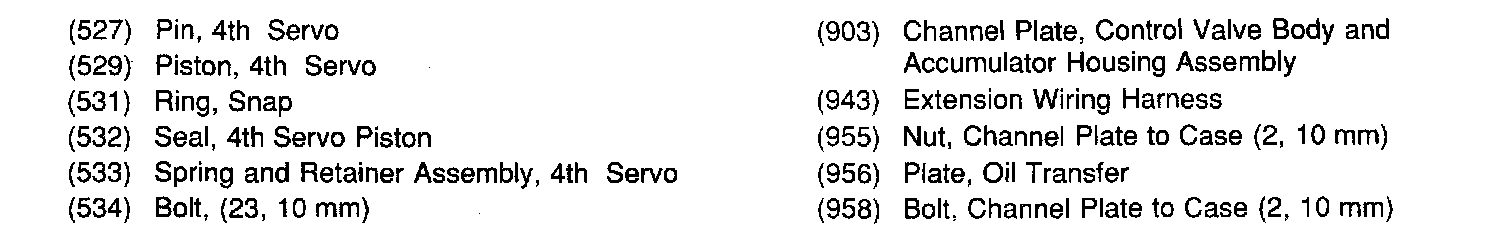

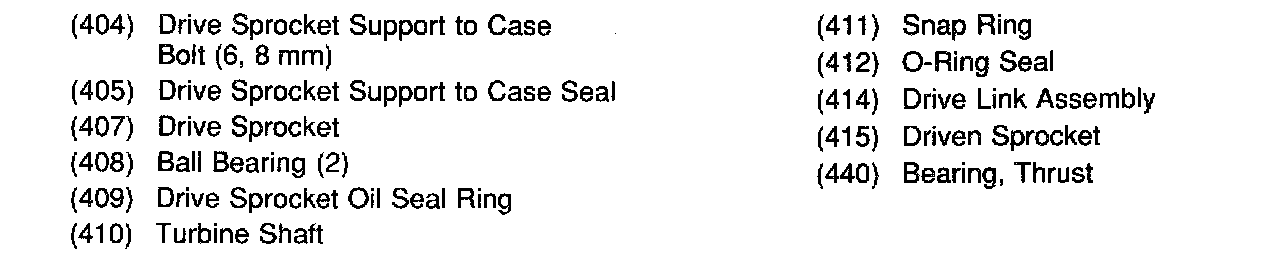

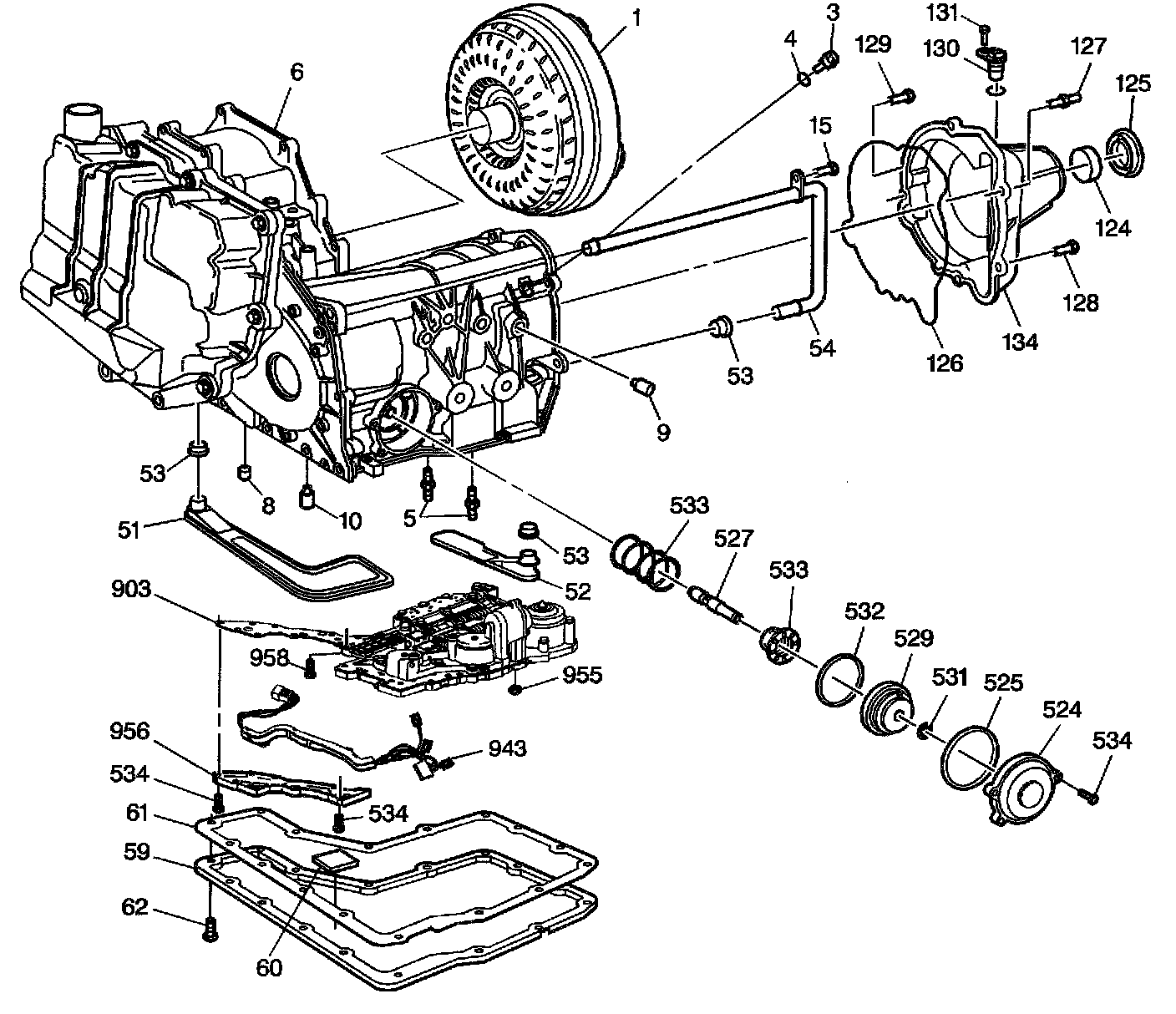

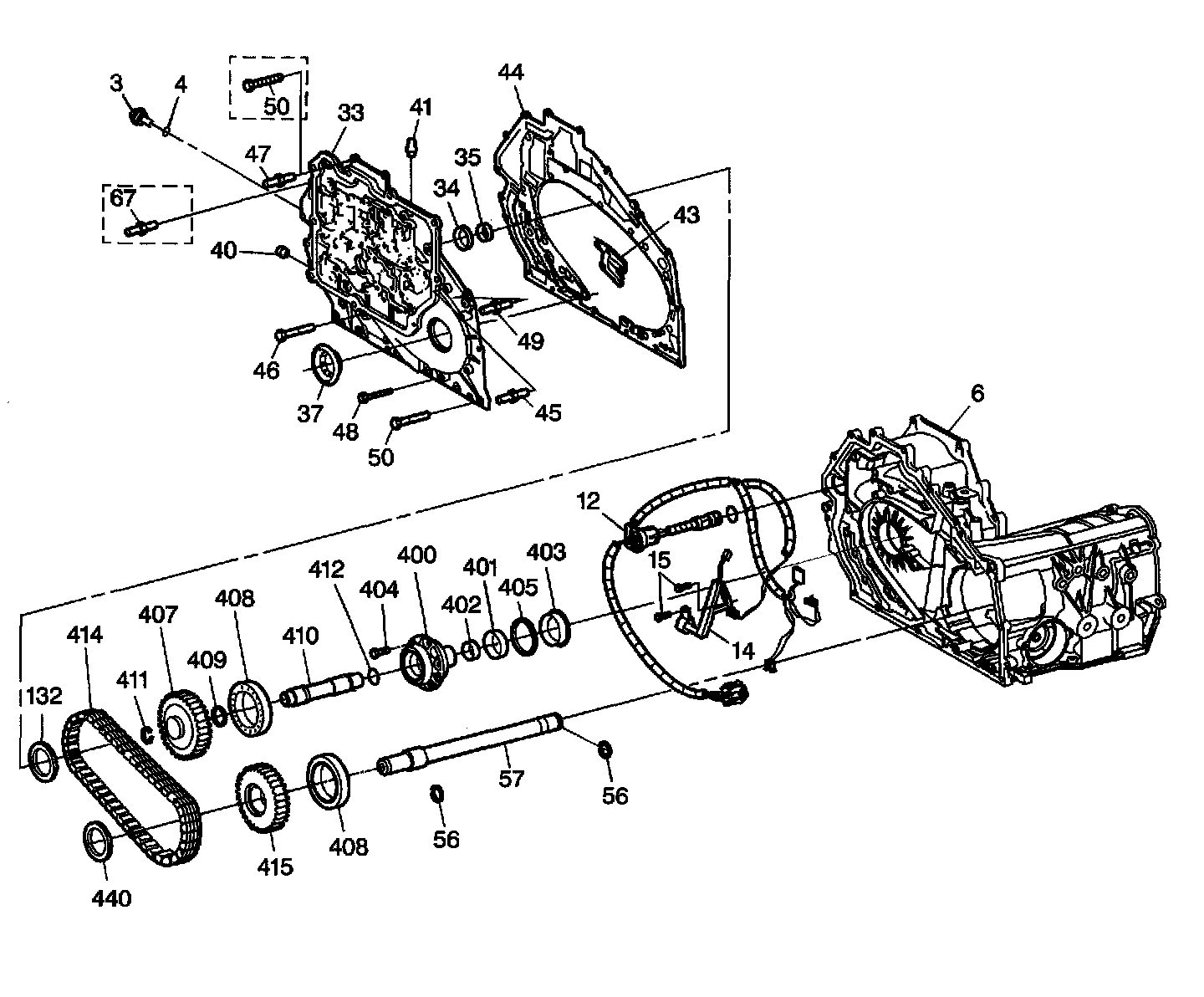

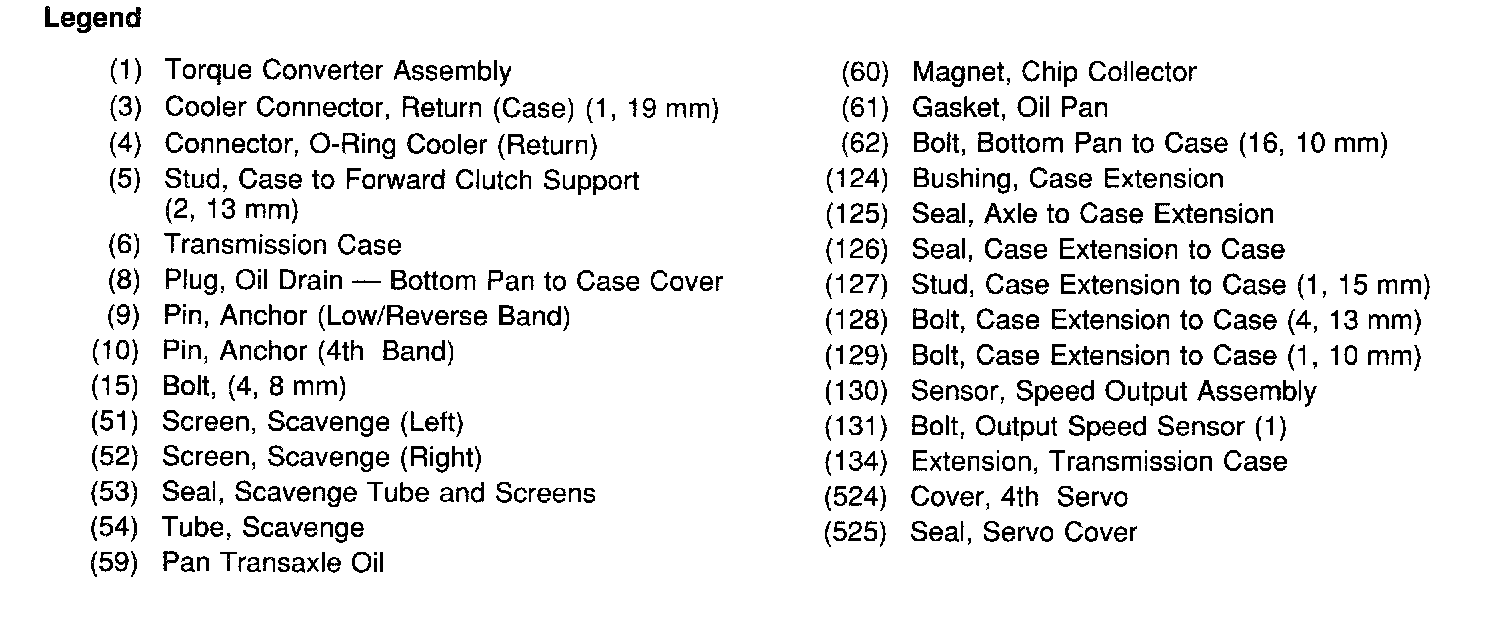

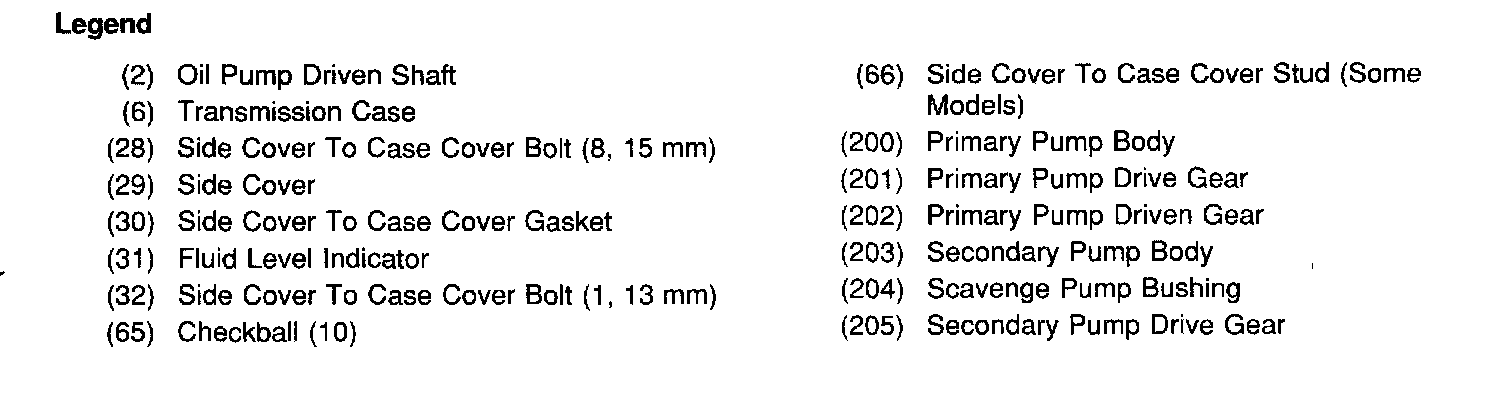

Case and Associated Parts (1 of 3)
Case and Associated Parts (2 of 3)
Case and Associated Parts (3 of 3)
