4T80-E Automatic Transaxle
>>
Disassembled Views
>>
3rd Clutch and Reaction Carrier Assembly
3rd Clutch and Reaction Carrier Assembly

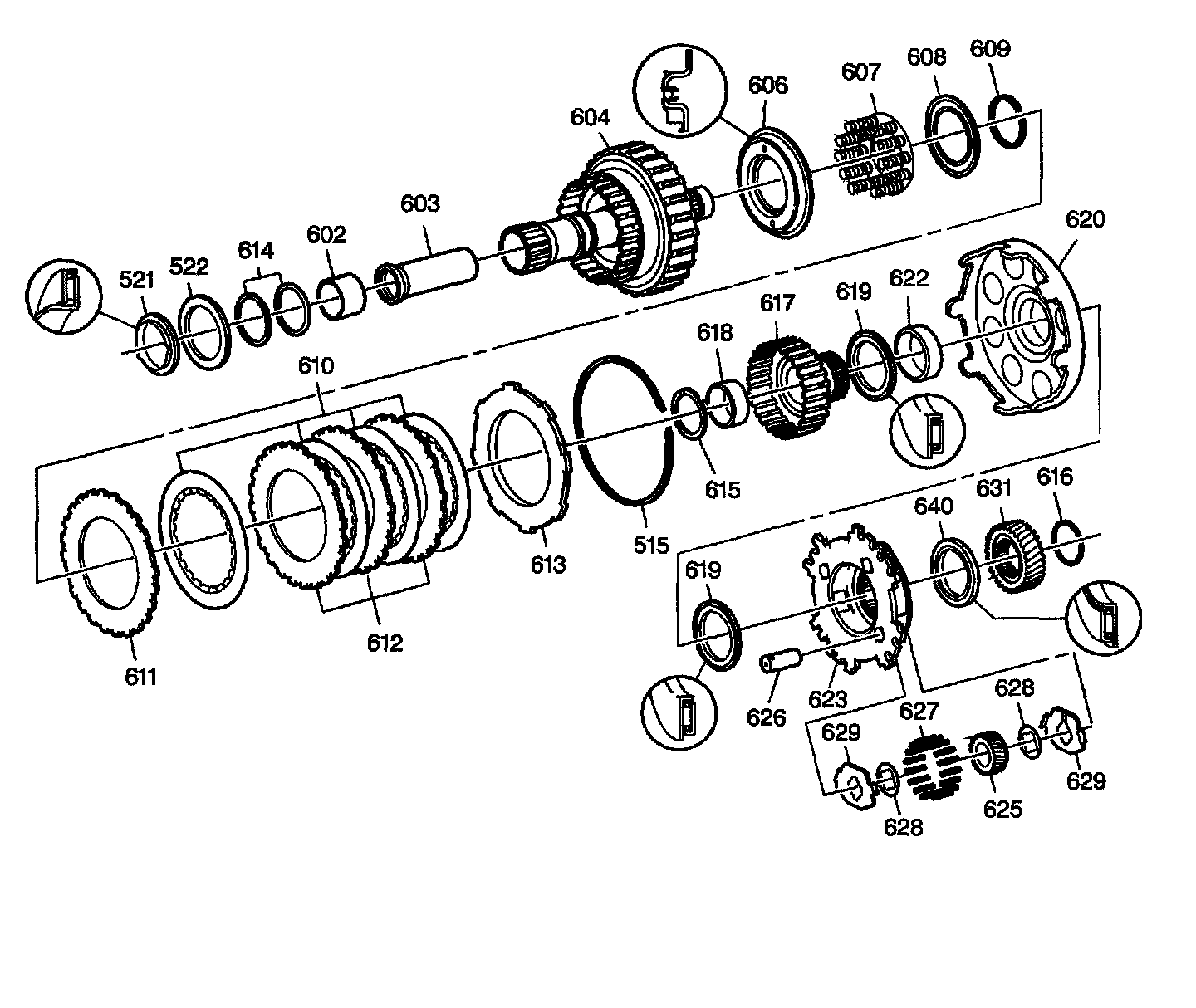

Part 1 of 3

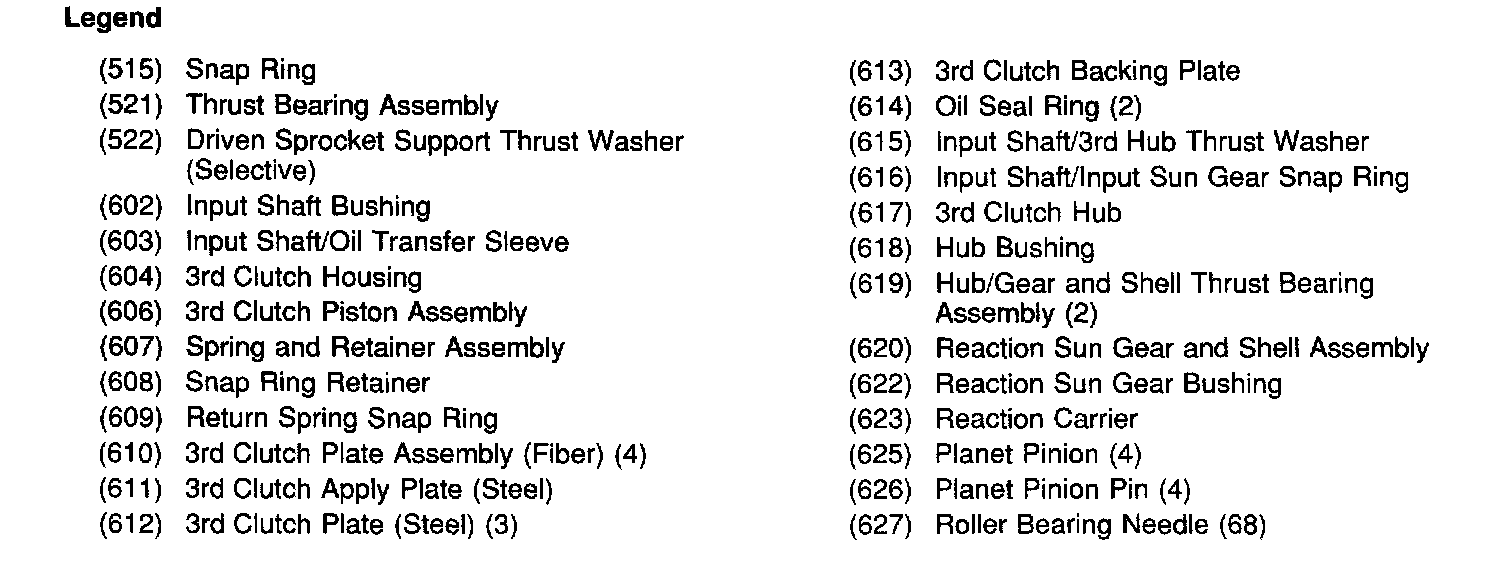

Part 2 of 3

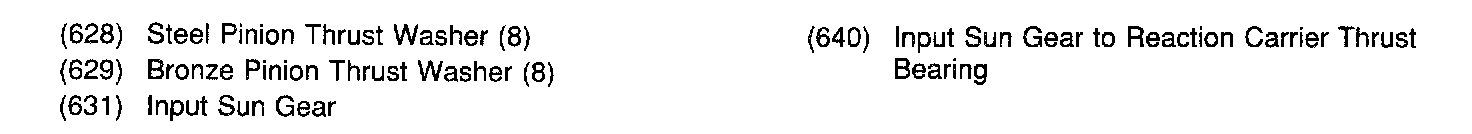

Part 3 of 3
3rd Clutch and Reaction Carrier Assembly
