Home >> Oldsmobile >> 2001 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Rear of Vehicle Low - ALC

Rear of Vehicle Low - ALC

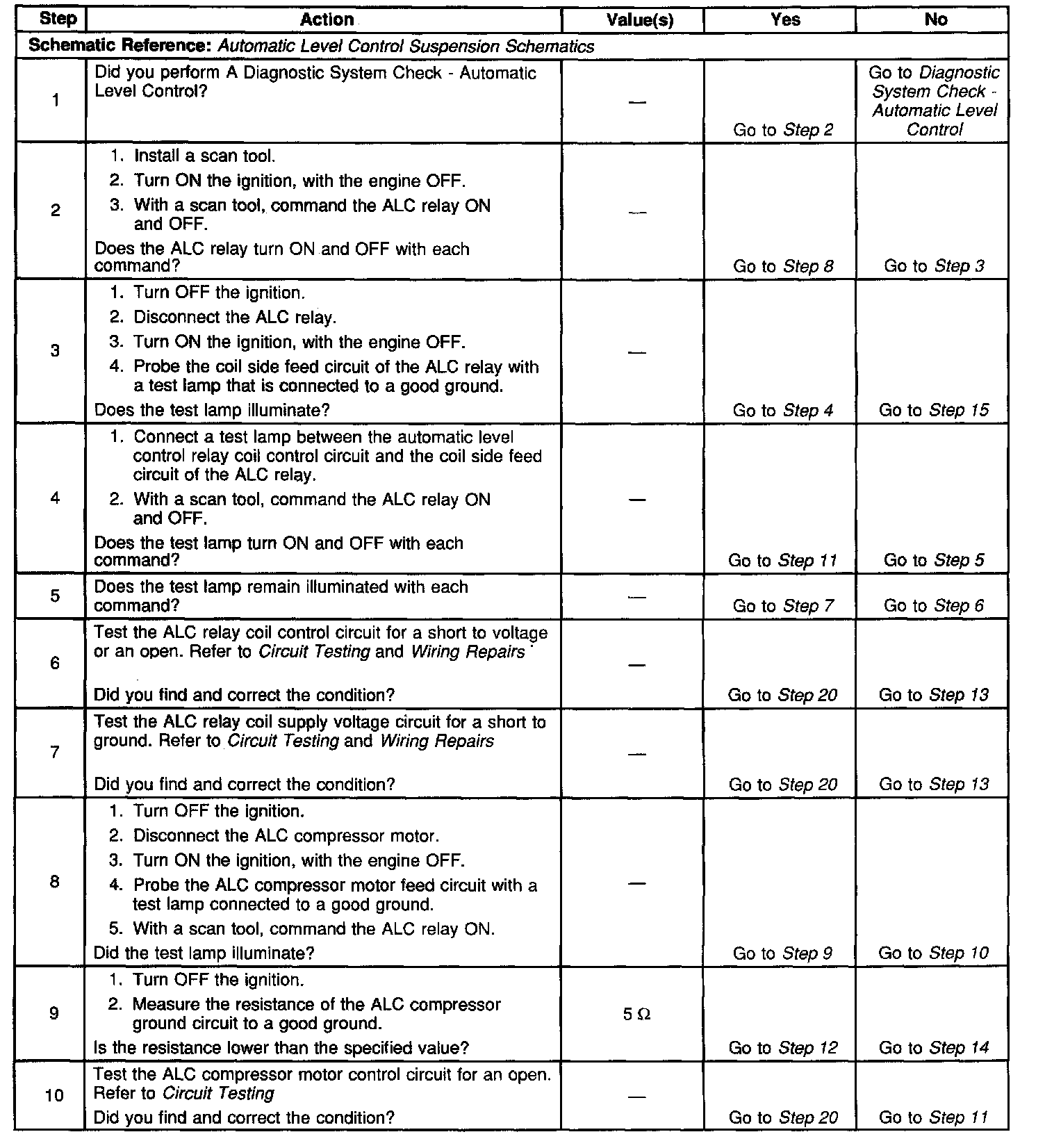

Steps 1 through 10

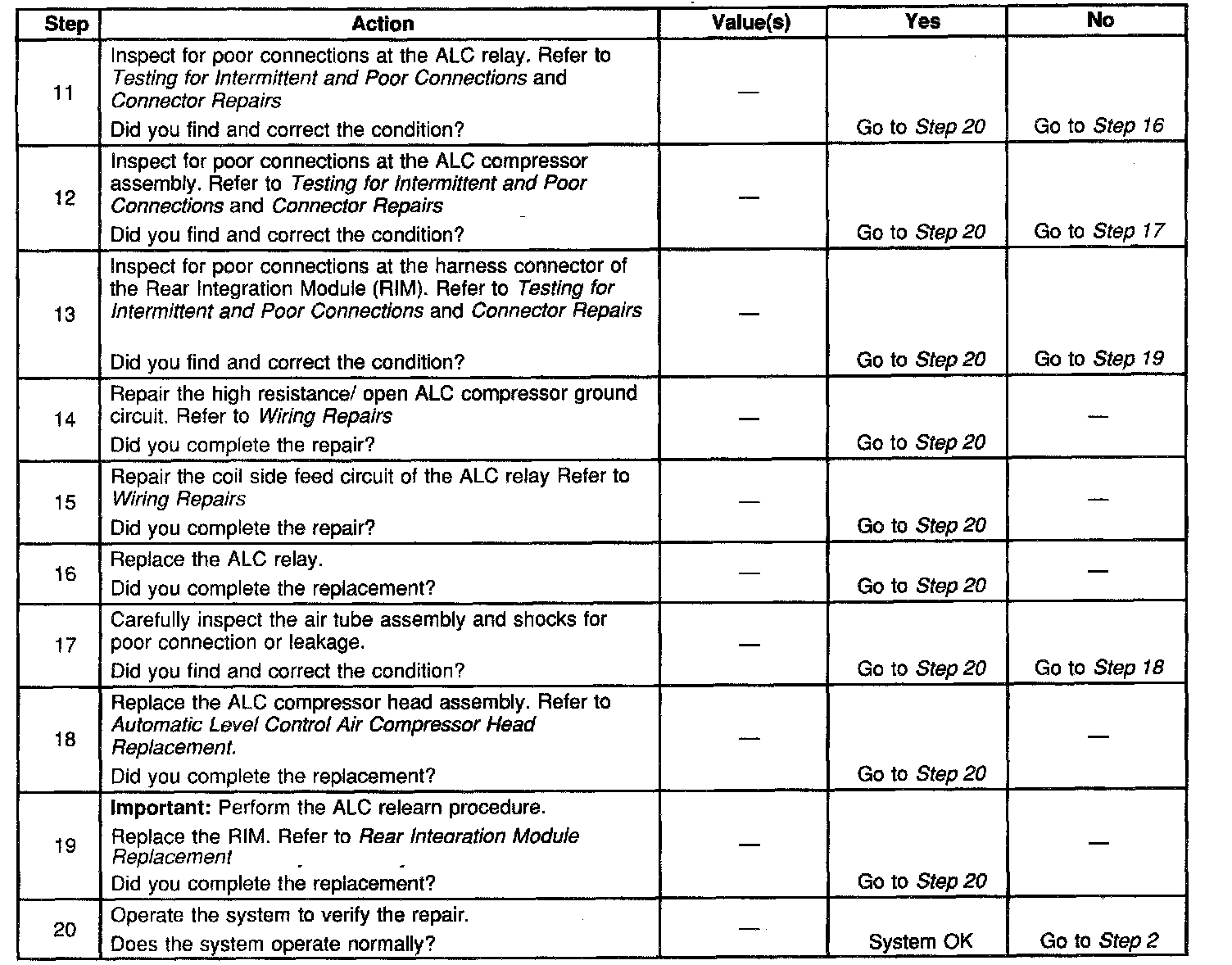

Steps 11 through 20

Rear of Vehicle Low
