Air Dryer: Service and Repair

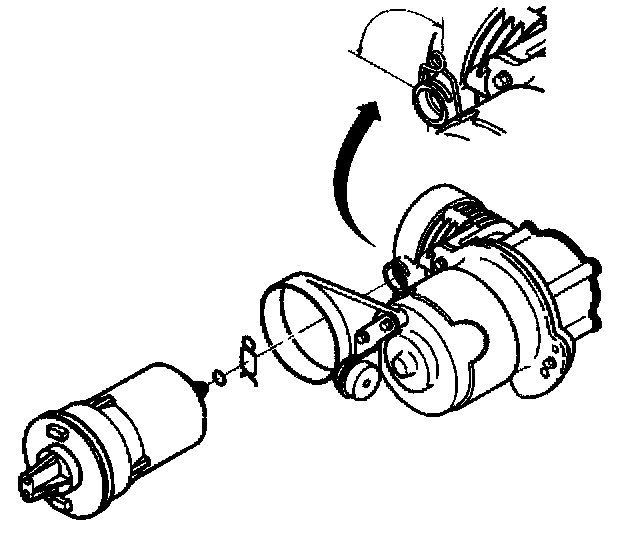

Removal Procedure
1. Remove the air compressor.
2. Rotate the spring clip 90 degrees out of the slot.
3. Remove the air dryer from the air compressor assembly.





4. Remove the seal from the air compressor.

Installation Procedure

Important:
- Lubricate the seal with silicone lubricant.
- The spring clip must not be in the slots of the air compressor.





1. Install a new seal onto the air dryer.
2. Install the air dryer with the seal in the air compressor.
3. Rotate the spring clip 90 degrees to lock the air dryer in place.
4. Install the air compressor assembly with the bracket onto the vehicle.
