C803 (RH Rear Door Harness Inline to RH Rear Door Jumper Harness)
C803 (RH Rear Door Harness Inline to RH Rear Door Jumper Harness)

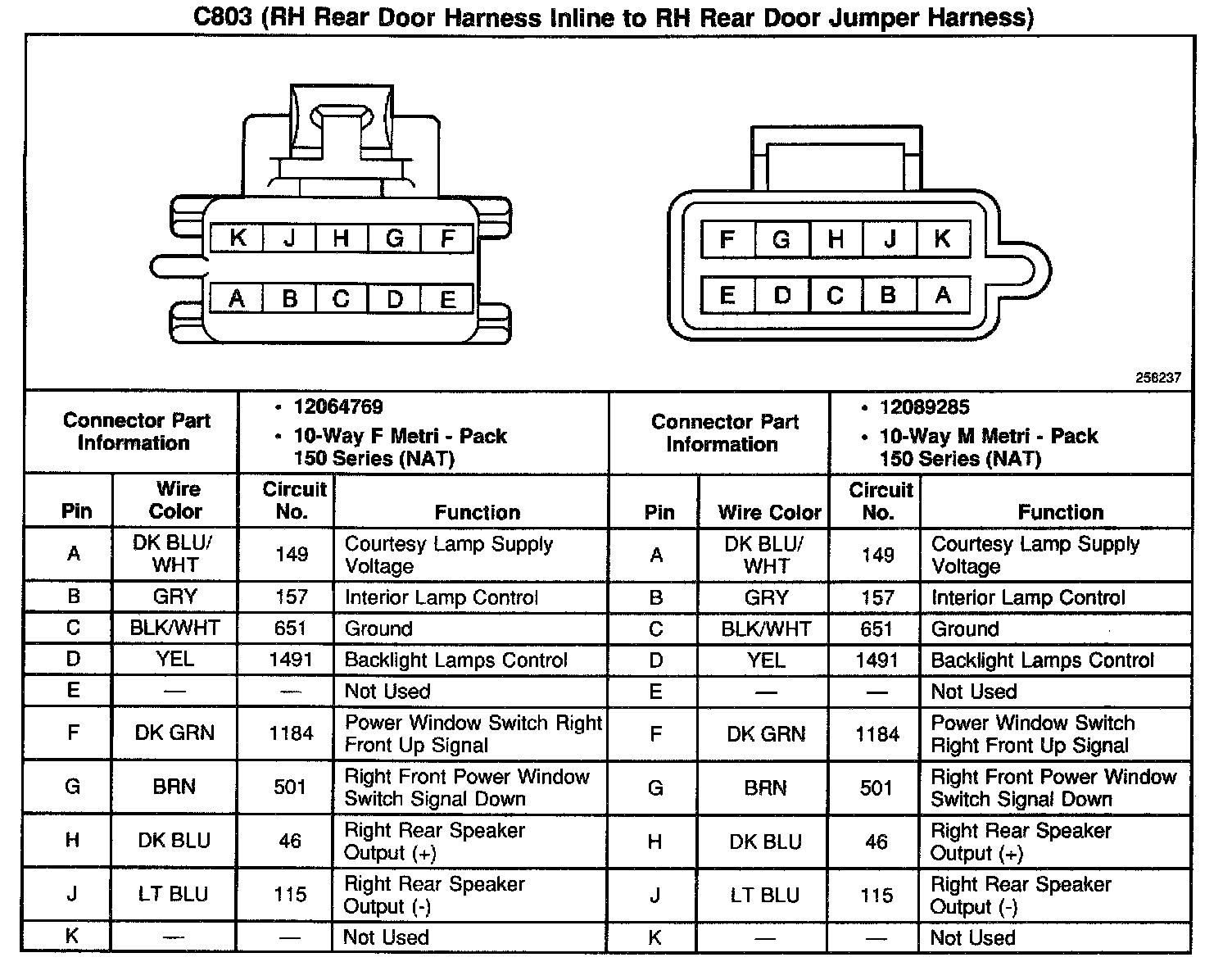

C803 (RH Rear Door Harness Inline to RH Rear Door Jumper Harness):
