C801 (RH Body Harness Inline to RH Rear Door Harness)
C801 (RH Body Harness Inline to RH Rear Door Harness)

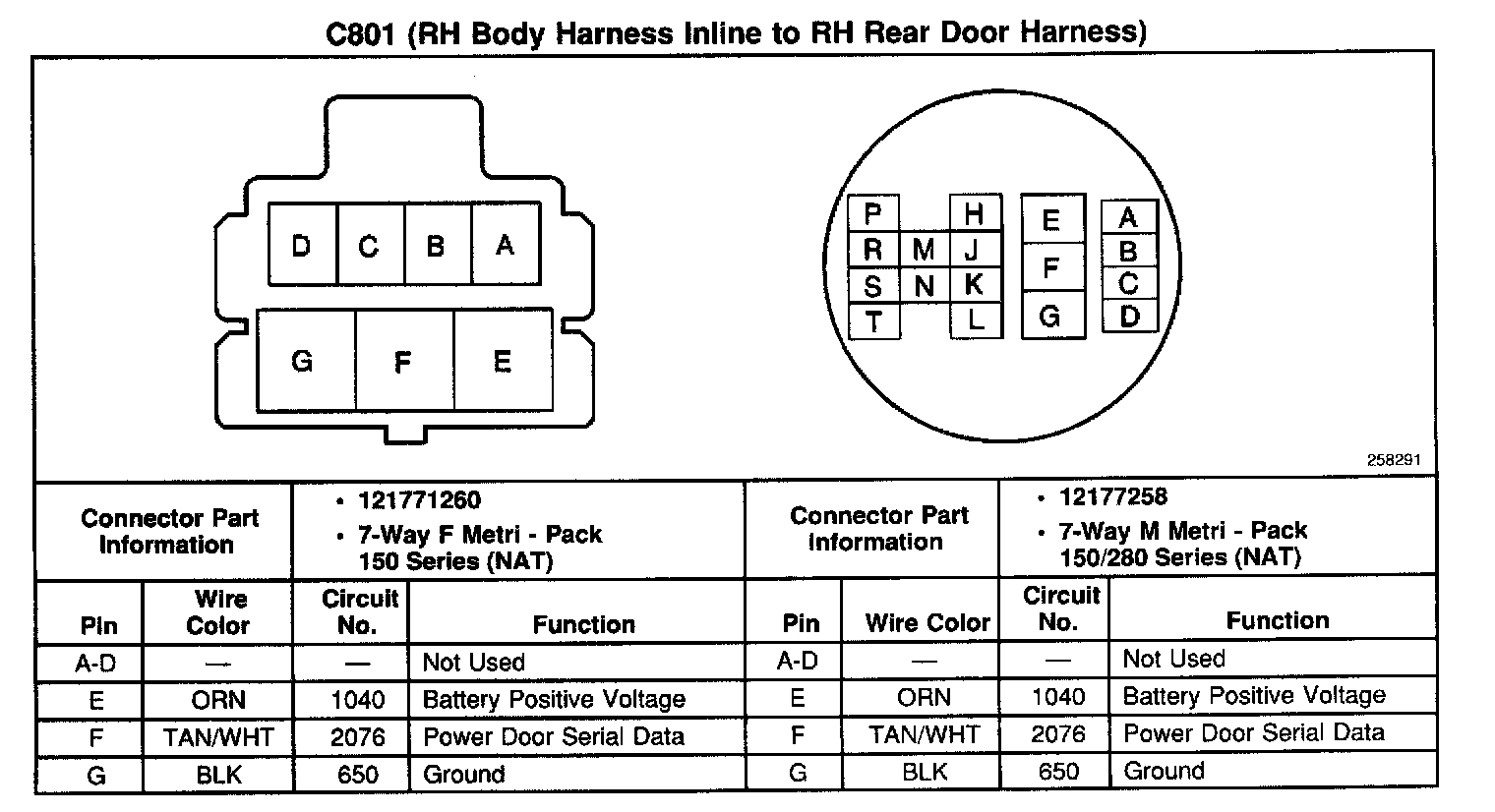

C801 (RH Body Harness Inline to RH Rear Door Harness):
