FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2001
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C700 - C799
>>

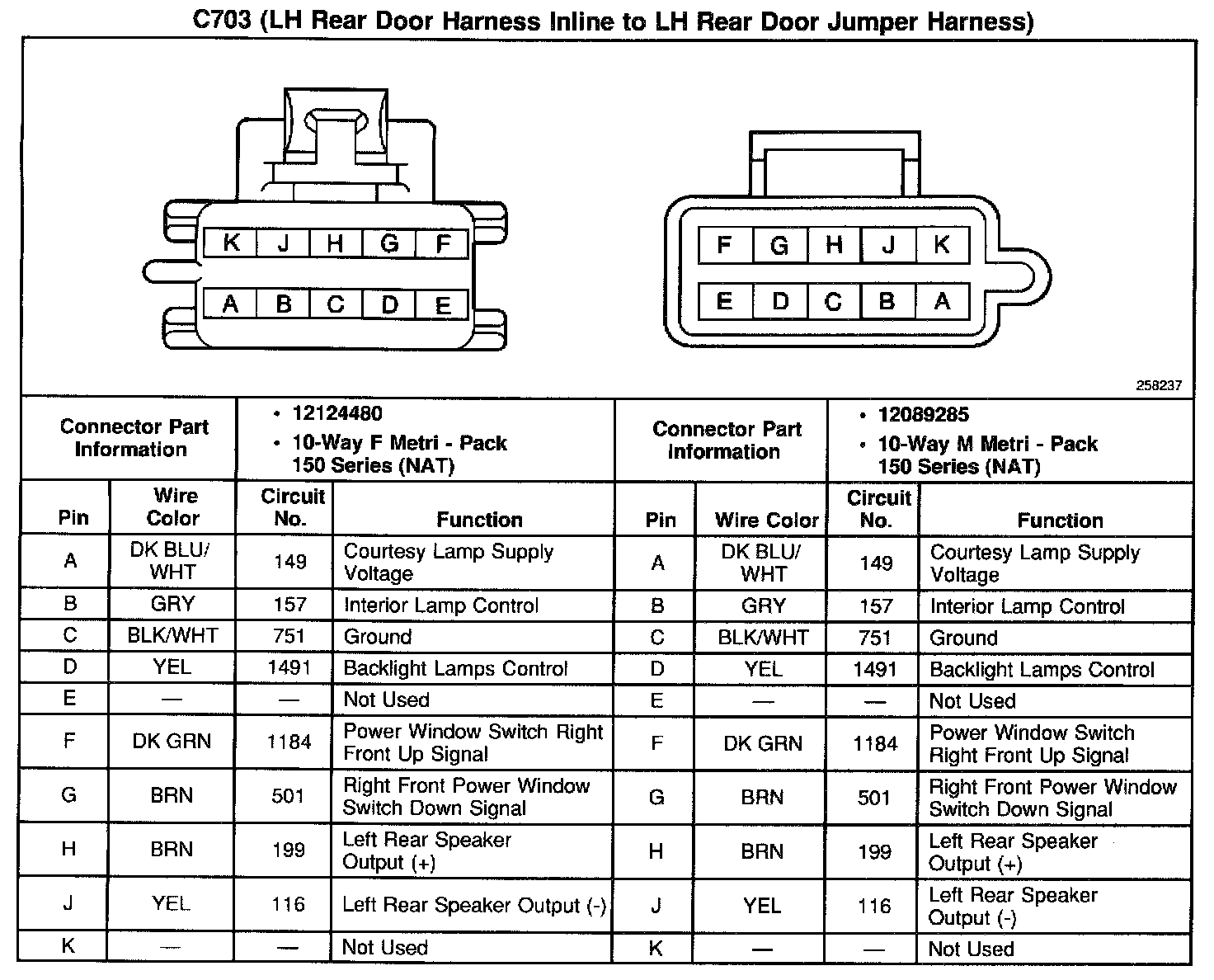

C703 (LH Rear Door Harness Inline to LH Rear Door Jumper Harness)
C703 (LH Rear Door Harness Inline to LH Rear Door Jumper Harness)
C703 (LH Rear Door Harness Inline to LH Rear Door Jumper Harness):
