C600 (Right Side Body Harness Inline to Right Front DR Harness)
C600 (Right Side Body Harness Inline to Right Front DR Harness)

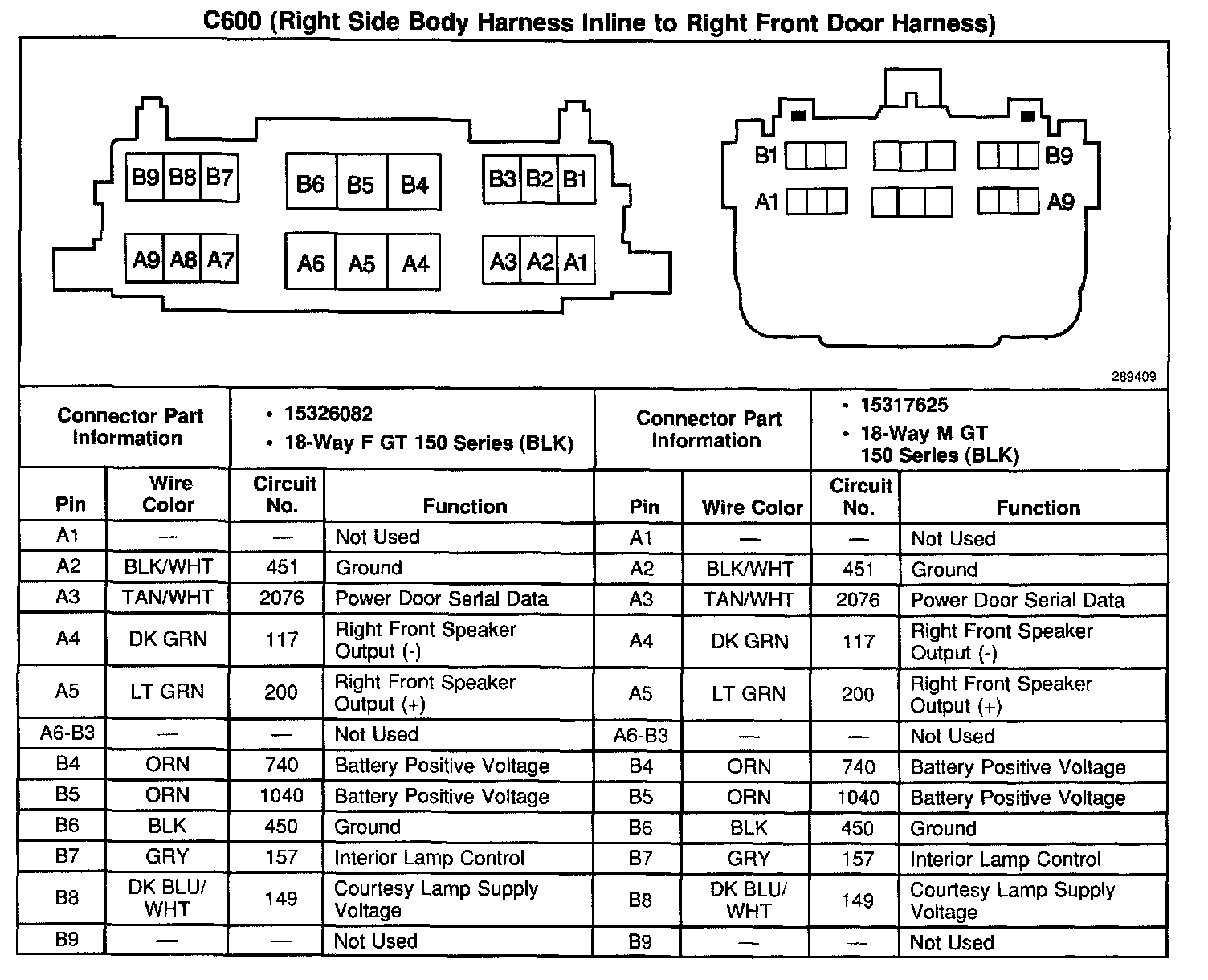

C600 (Right Side Body Harness Inline to Right Front Door Harness):
