FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2001
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C500 - C599
>>
C503 (LH Front Door Harness Inline to LH Door Jumper Harness)
C503 (LH Front Door Harness Inline to LH Door Jumper Harness)

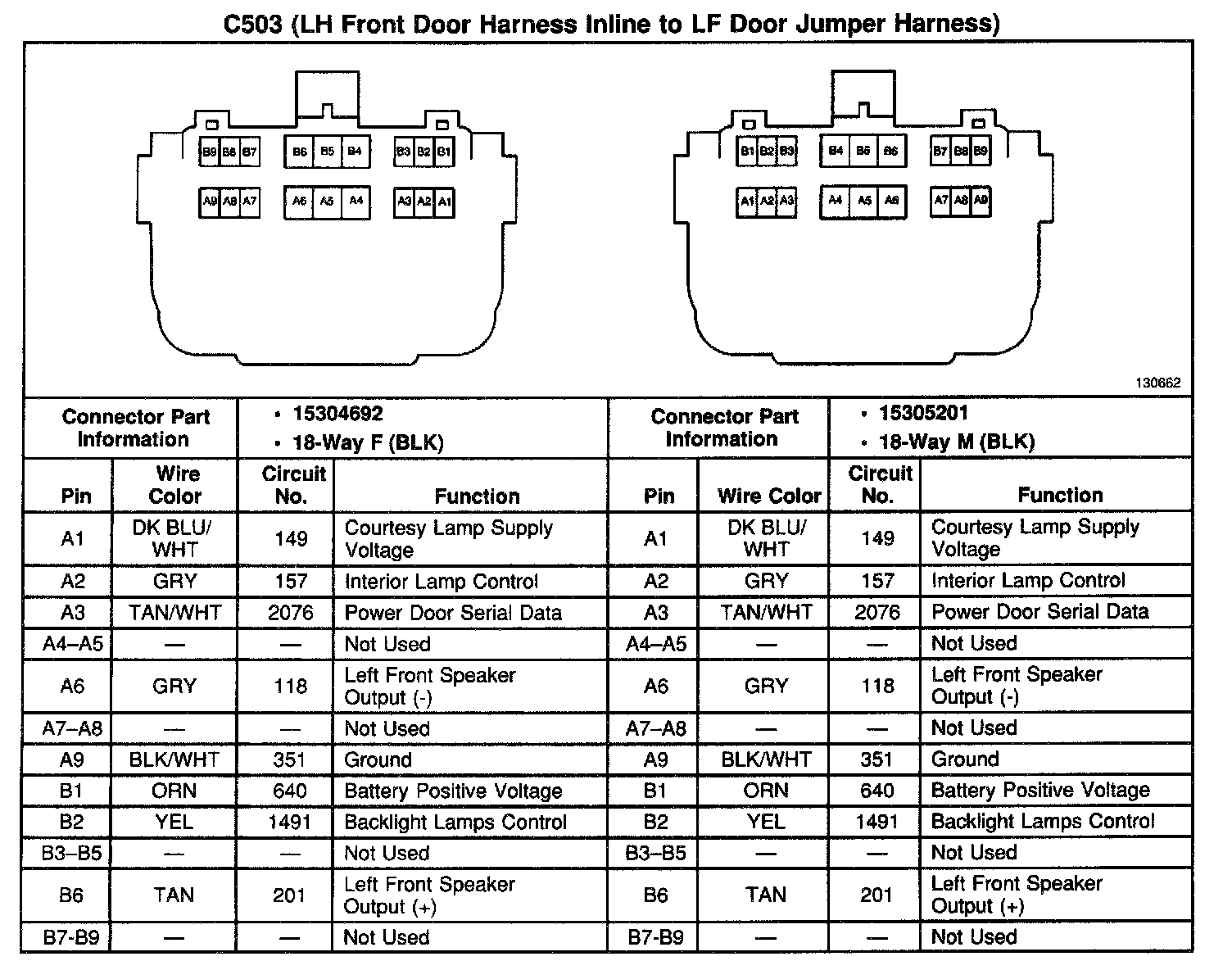

C503 (LH Front Door Harness Inline to LF Door Jumper Harness):
