Home >> Oldsmobile >> 2001 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C400 - C499 >> C405 (RH Body Harness Inline to Sunroof Harness)

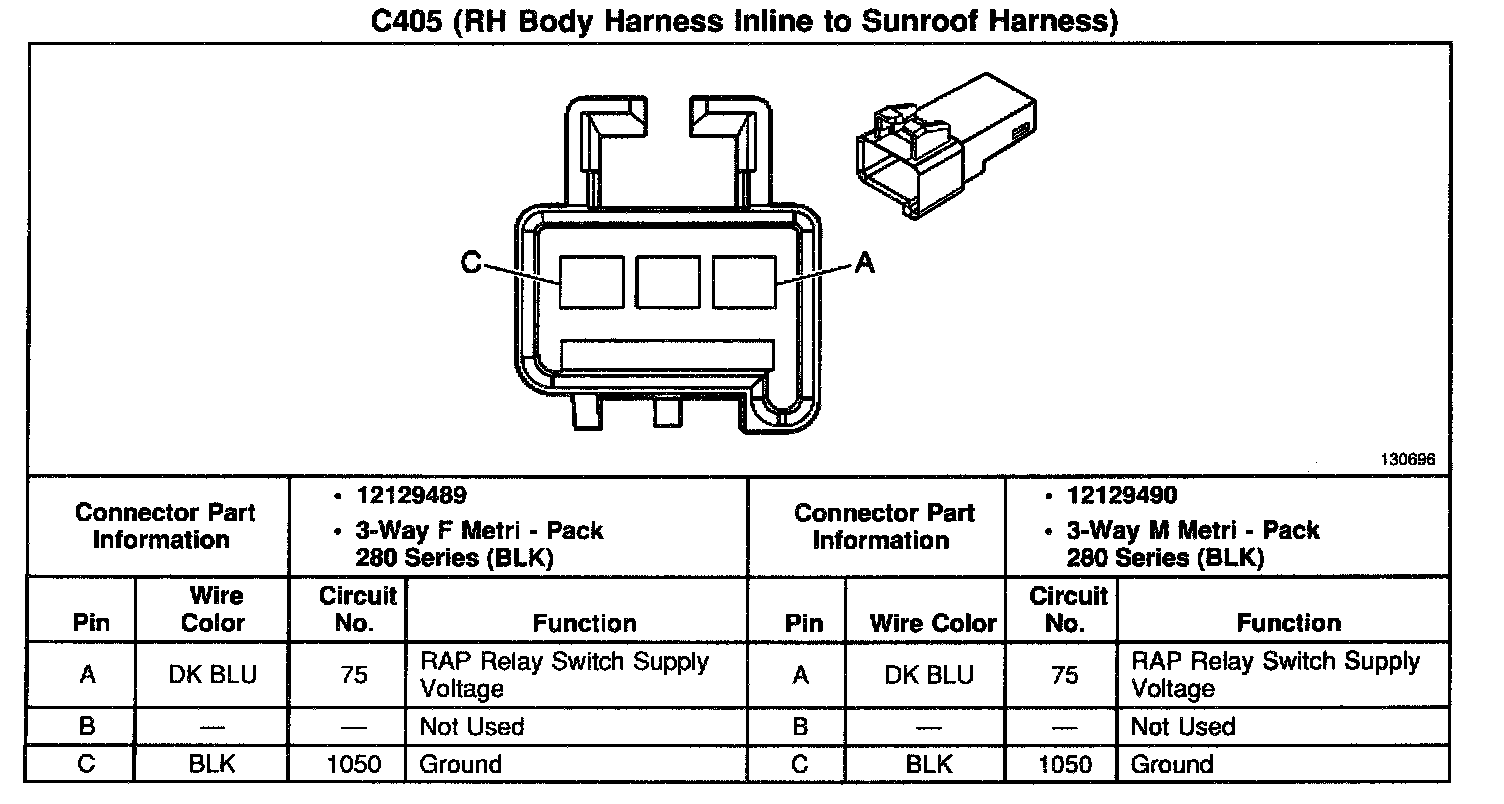

C405 (RH Body Harness Inline to Sunroof Harness)

C405 (RH Body Harness Inline to Sunroof Harness):
