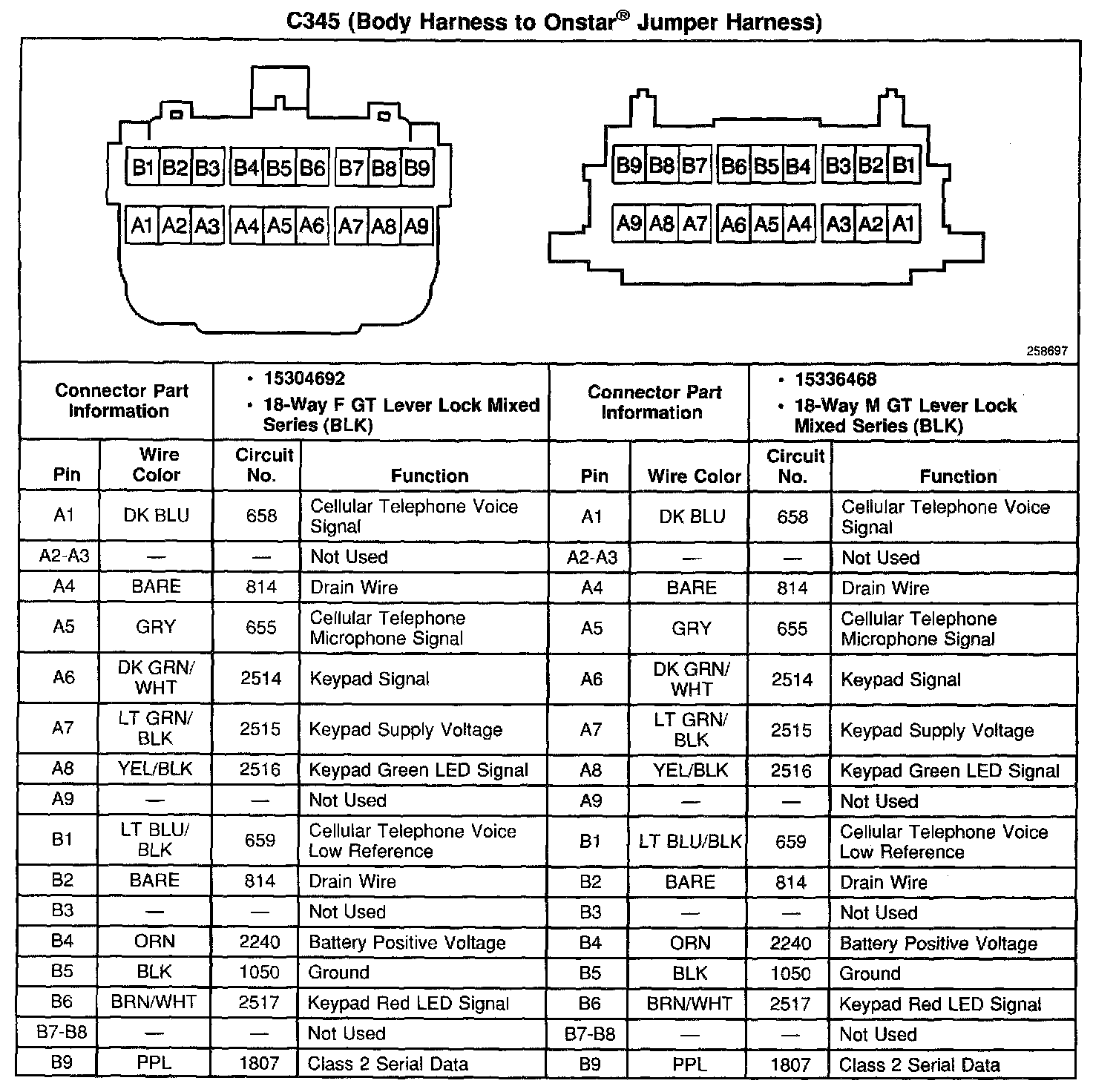

C345 (Body Harness to Onstar(R) Jumper Harness)
C345 (Body Harness to Onstar(R) Jumper Harness)
C345 (Body Harness to Onstar(R) Jumper Harness):
