C322 (Headliner Harness Inline to Sunroof Harness)

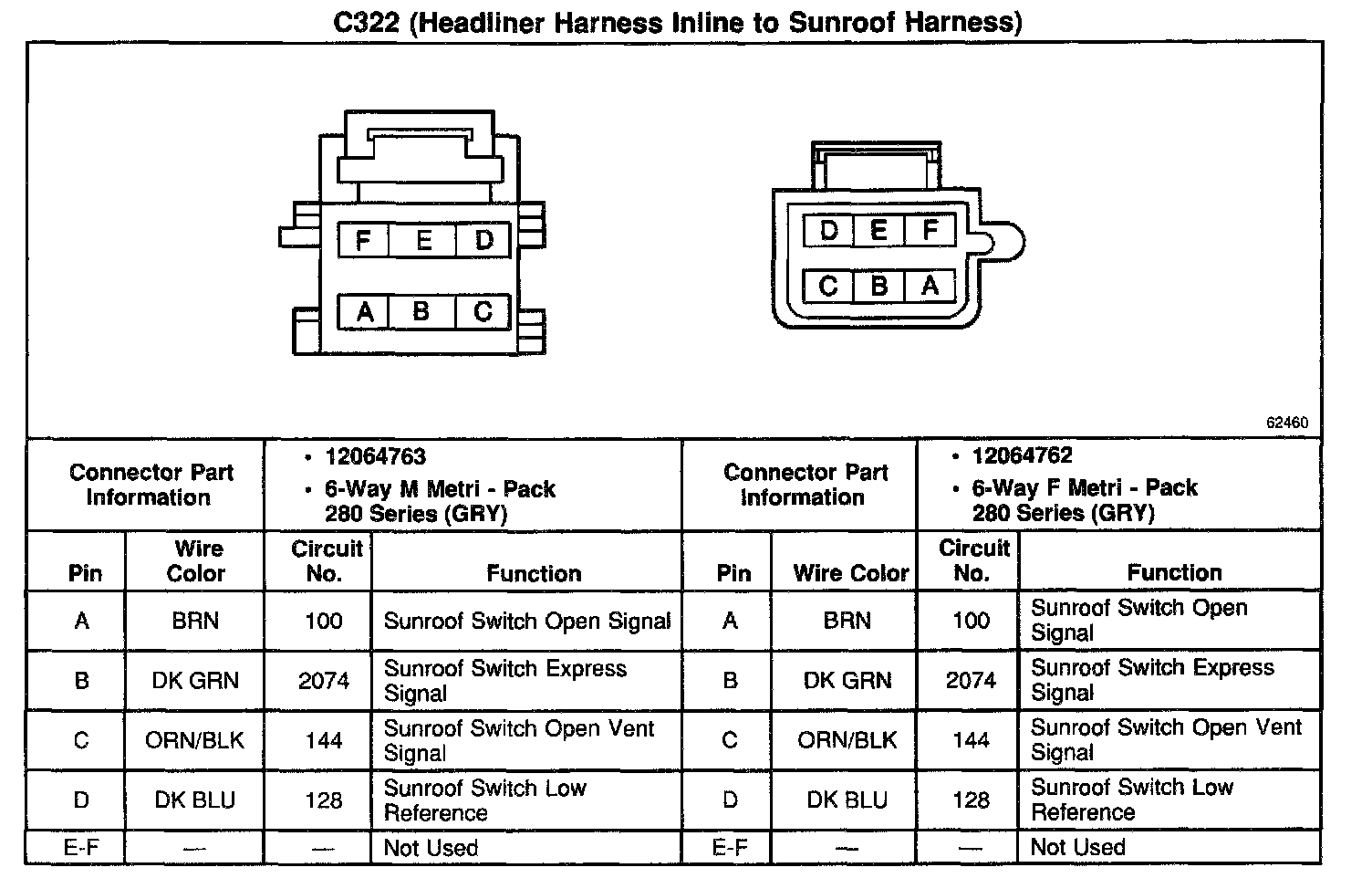

C322 (Headliner Harness Inline to Sunroof Harness):
