FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2001
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C300 - C399
>>
C302 (LH Body Harness Inline to LH Front Power Seat Harness)
C302 (LH Body Harness Inline to LH Front Power Seat Harness)

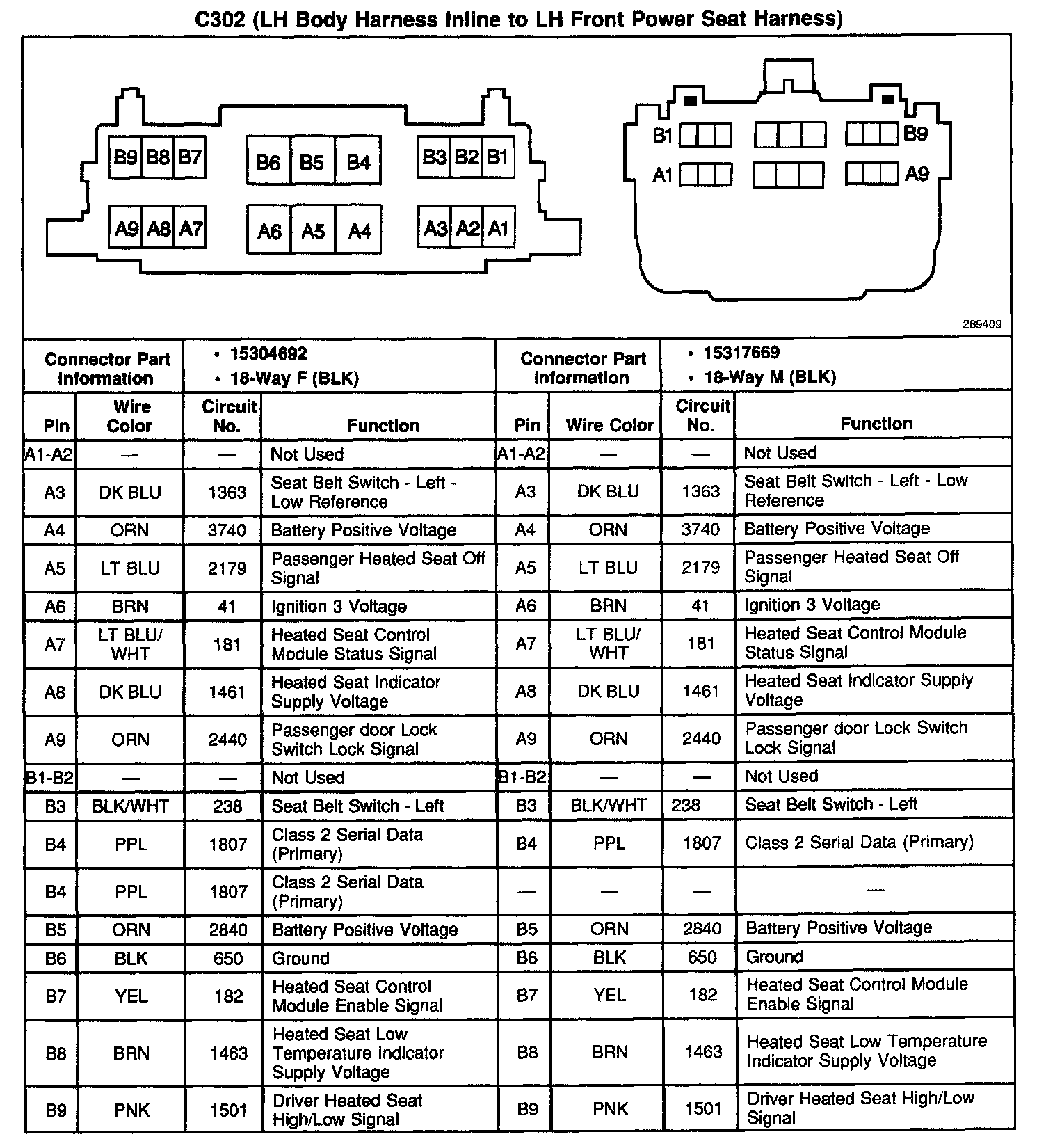

C302 (LH Body Harness Inline to LH Front Power Seat Harness):
