Home >> Oldsmobile >> 2001 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Steering and Suspension >> Sensors and Switches - Steering >> Steering Angle Sensor >> Diagrams

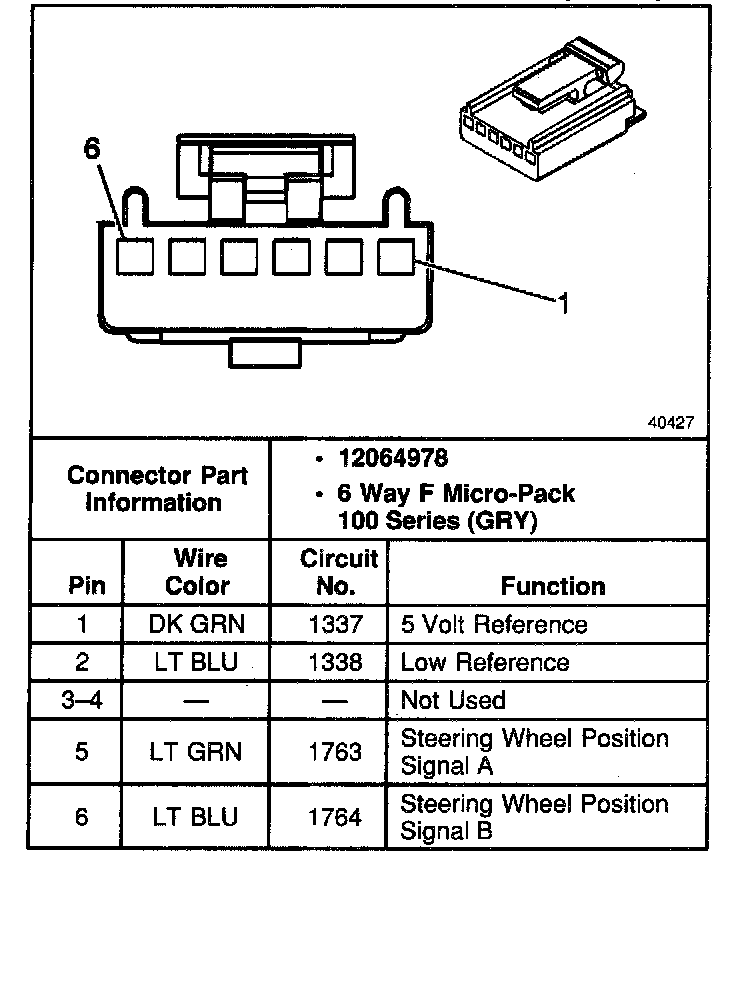

Steering Angle Sensor: Diagrams
