Torque Converter Clutch Solenoid: Service and Repair

Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid Replacement

Removal Procedure





1. Remove the case side cover.
2. Disconnect the transaxle wiring harness.

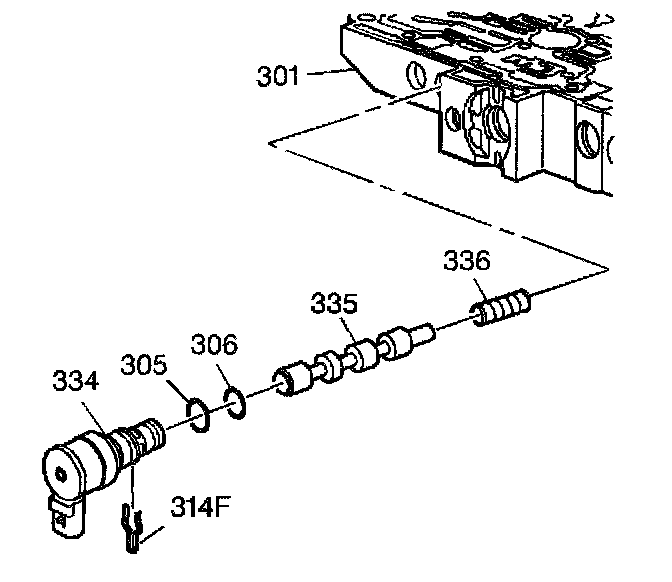

3. Remove the torque converter clutch PWM solenoid.

Installation Procedure

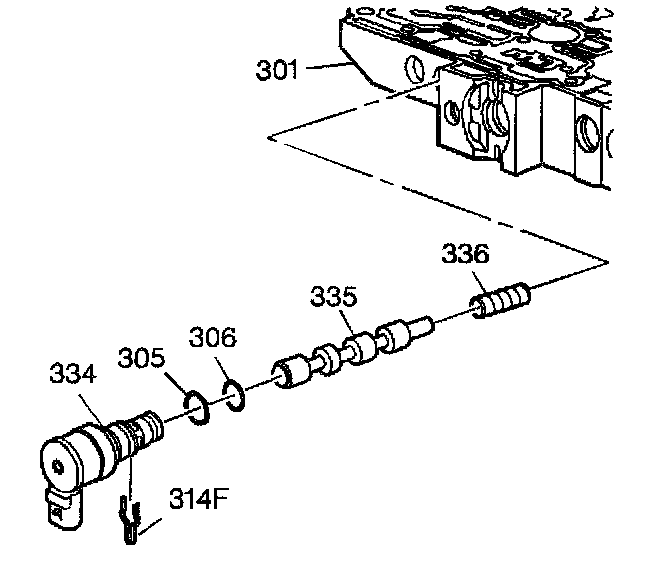

1. Install the torque converter clutch PWM solenoid.
2. Connect the transaxle wiring harness.
3. Install the case side cover.
