2-3 Shift Solenoid Valve Replacement

2-3 Shift Solenoid Valve Replacement

Removal Procedure





1. Remove the case side cover.
2. Disconnect the transaxle wiring harness.

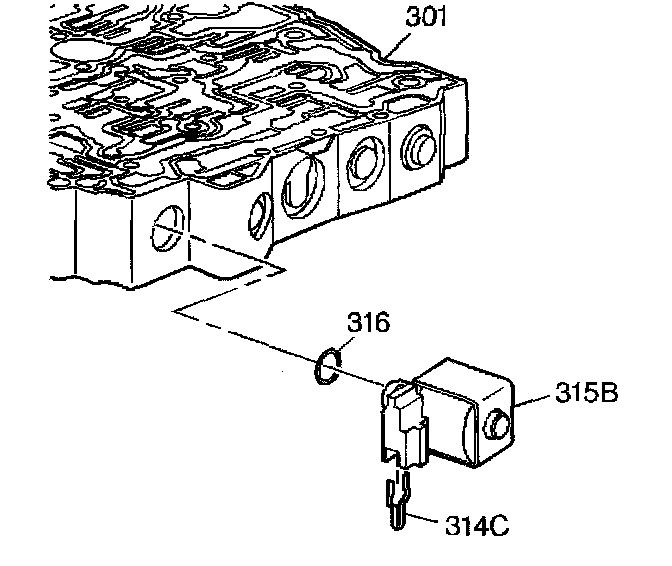

3. Remove the 2-3 shift solenoid (315B).

Installation Procedure

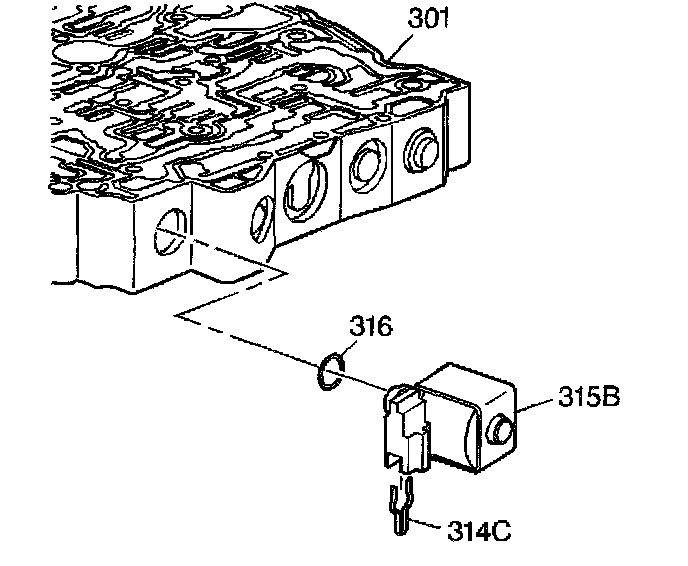

1. Install the 2-3 shift solenoid (315B).
2. Connect the transaxle wiring harness.
3. Install the case side cover.
