1-2 Shift Solenoid Valve Replacement

1-2 Shift Solenoid Valve Replacement

Removal Procedure





1. Remove the case side cover.
2. Disconnect the transaxle wiring harness.

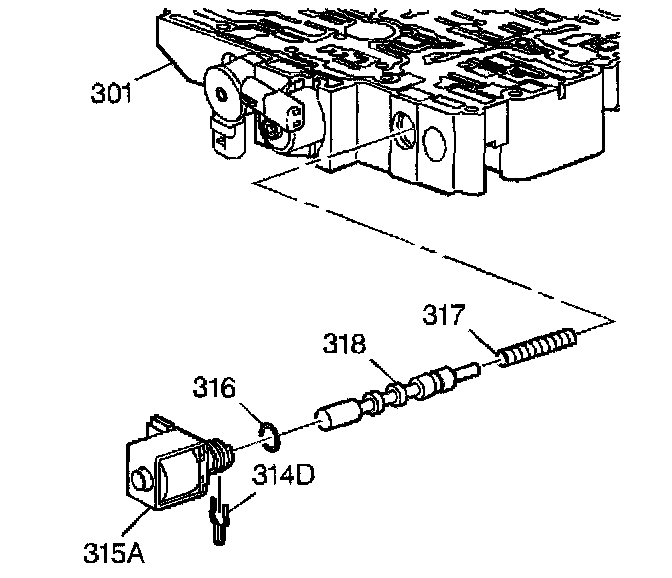

3. Remove the 1-2 shift solenoid.

Installation Procedure

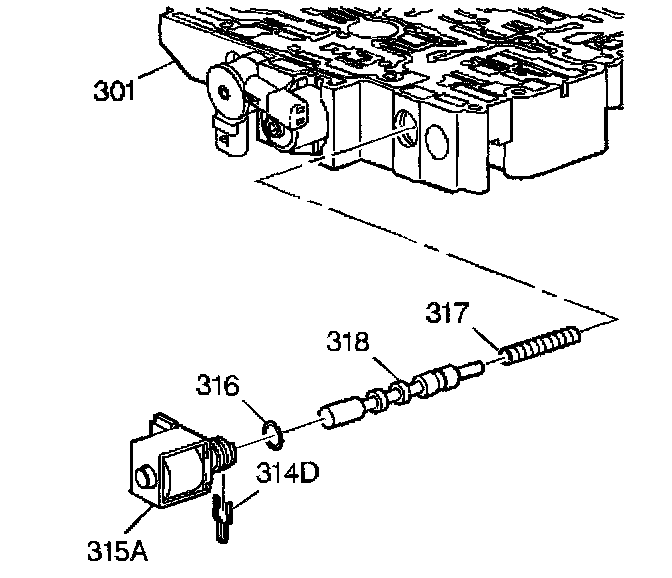

1. Install the 1-2 shift solenoid.
2. Connect the transaxle wiring harness.
3. Install the case side cover.
