Fuel Pump Relay: Locations

FUEL PUMP RELAY

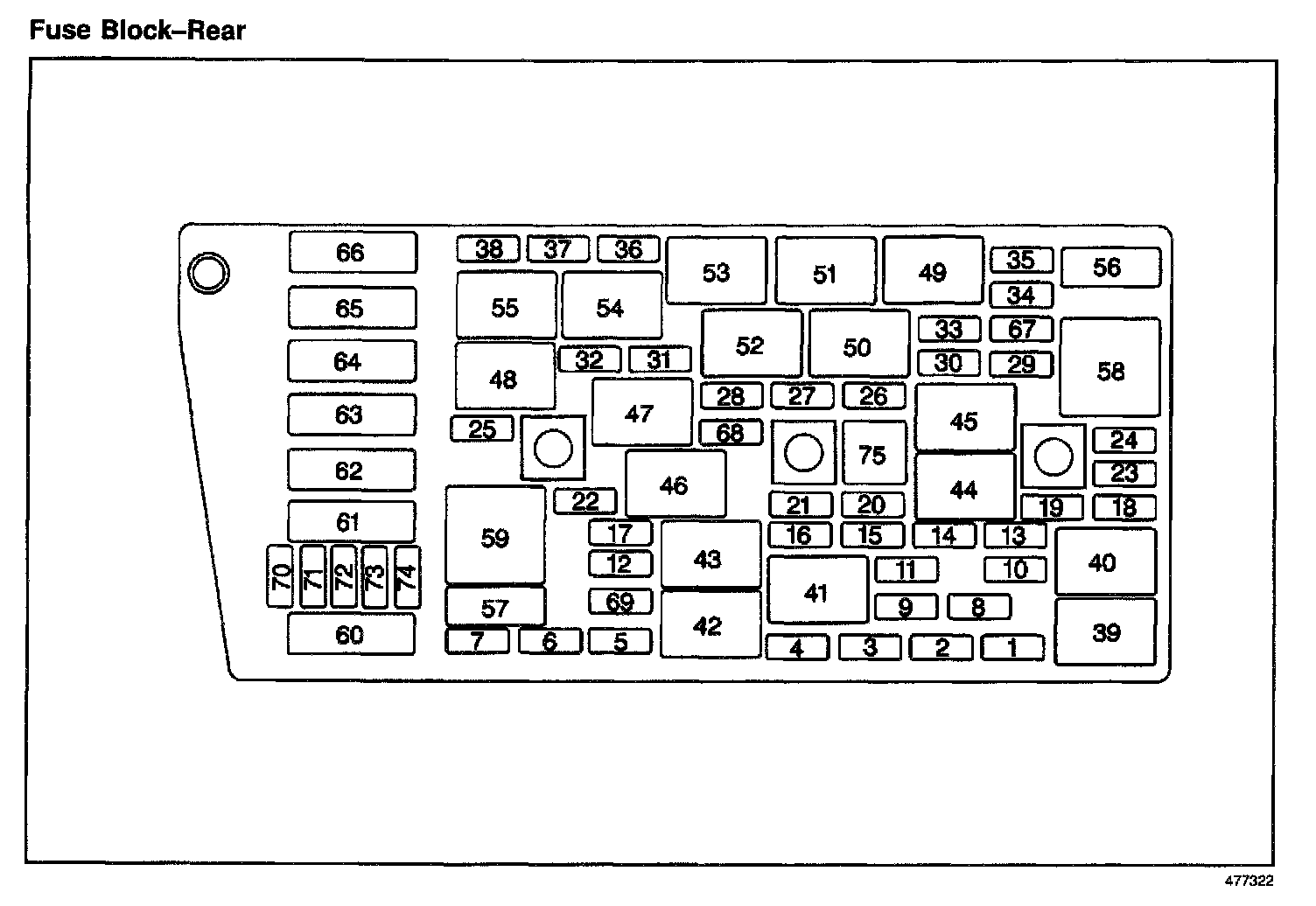

Fuse Block-Rear (Part 1 Of 3):

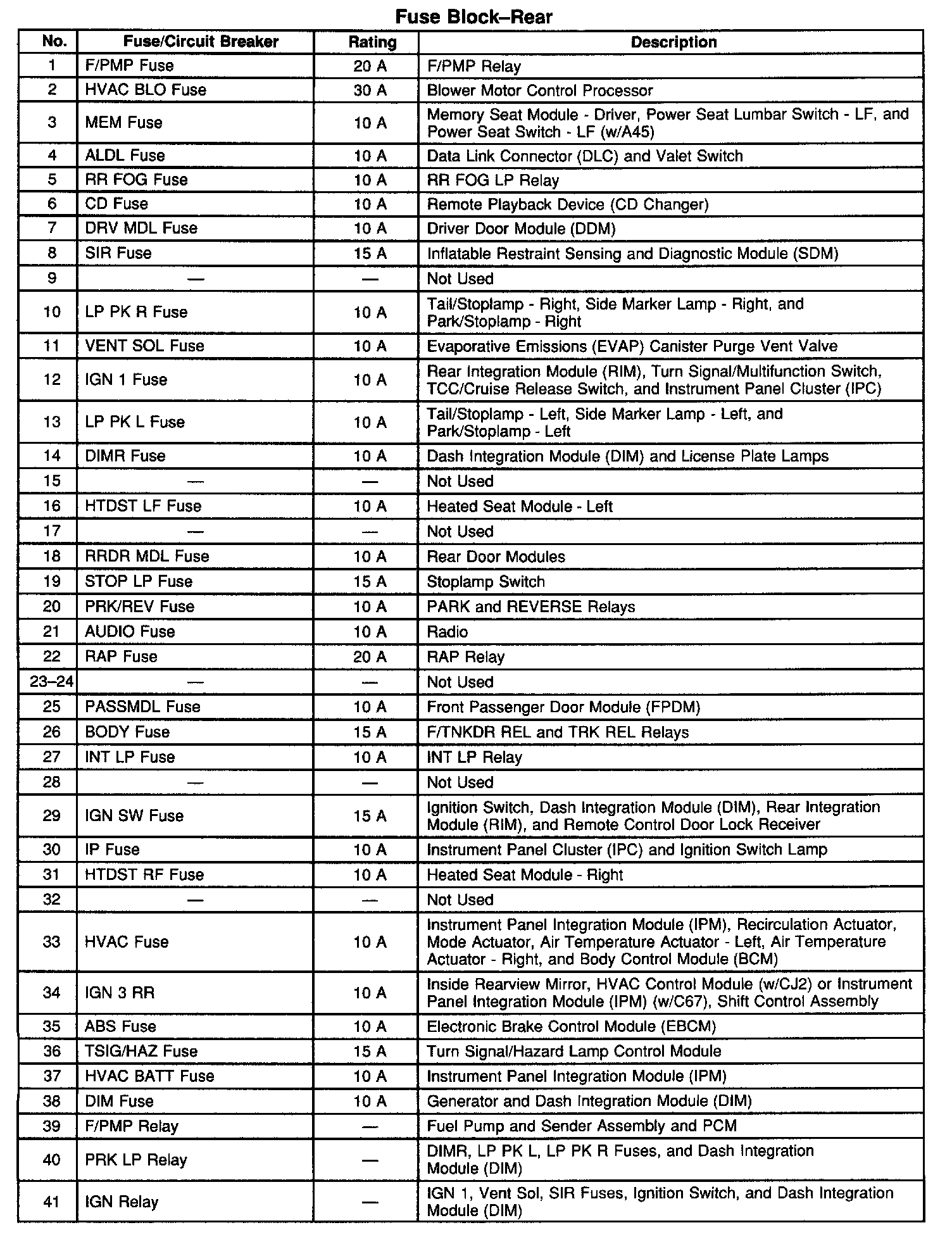

Fuse Block-Rear (Part 2 Of 3):

Locations View:

The fuel pump relay is located in the rear fuse block. The rear fuse block is located under the rear seat, on the left side of the floor.
