PCV Valve Hose: Service and Repair

Crankcase Ventilation Hoses/Pipes Replacement

Removal Procedure

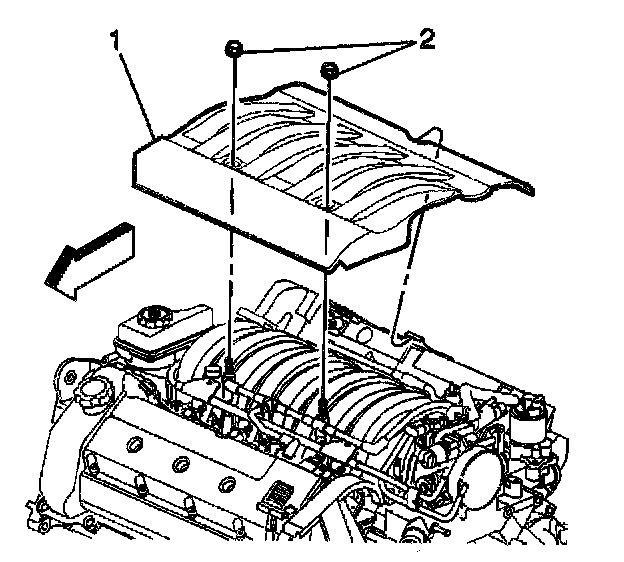

1. Remove the two nuts (2) from the fuel injector sight shield (1).
2. Lift the sight shield from the front and pull forward to disengage the rear tab from the bracket.

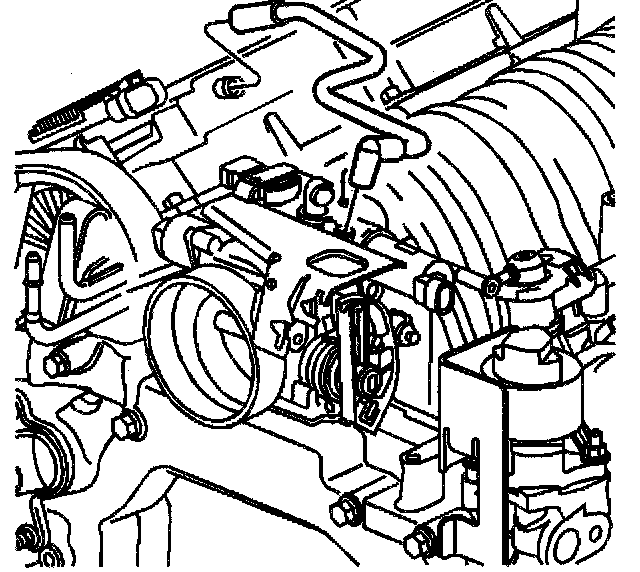

3. Disconnect the PCV fresh air tube from the left camshaft cover.
4. Remove the PCV fresh air tube from the throttle body.
5. Remove the drive belt.

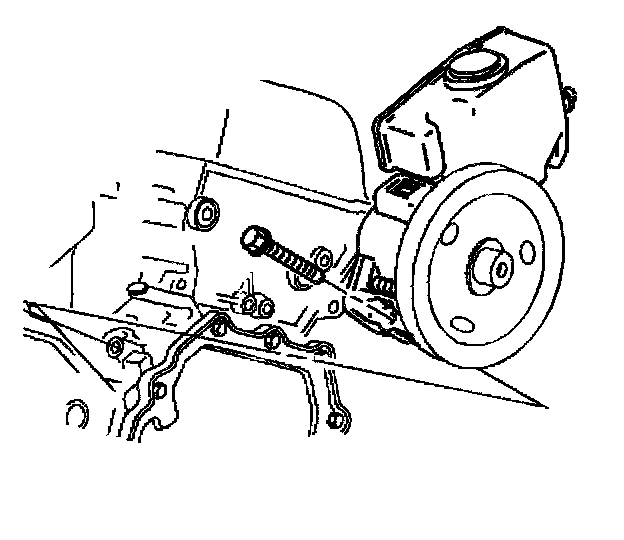

6. Remove the power steering pump retaining bolt.
7. With the hoses still attached, Carefully position aside the power steering pump.





8. Remove the retaining clip securing the PCV dirty air tube.
9. Disconnect the PCV dirty air tube from the PCV valve.
10. Remove the PCV dirty air tube from the intake manifold.

Installation Procedure





1. Connect the PCV dirty air tube to the intake manifold fitting.
2. Connect the PCV dirty air tube to the PCV valve.

Important: Ensure that the PCV dirty air tube is located between the tabs of the intake manifold.

3. Attach the retaining clip to the intake manifold.





4. Place the power steering pump in position in the engine valley. Slide the molded wedge into the retaining feature cast into the cylinder block.

Notice: Refer to Fastener Notice in Service Precautions.

5. Install the power steering pump retaining bolt.
^ Tighten the power steering pump retaining bolt to 50 Nm (37 ft. lbs.).
6. Install the drive belt.





7. Connect the PCV fresh air tube to the left camshaft cover.
8. Connect the PCV fresh air tube to the throttle body.

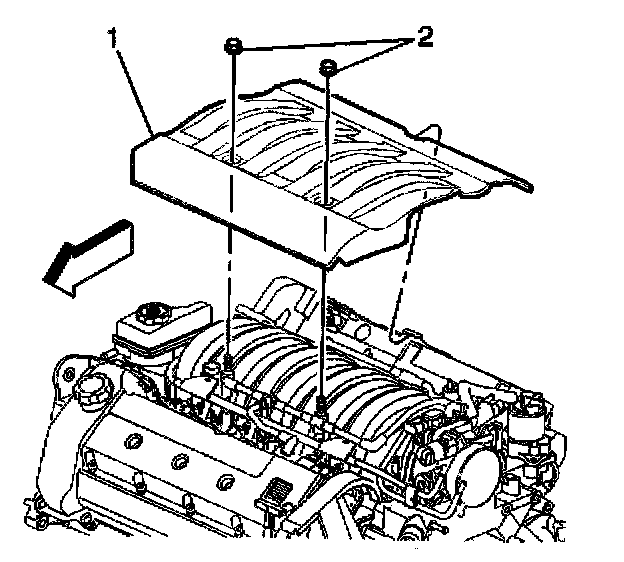

9. Align the rear tab with the slot in the rear bracket and push the sight shield inward to engage.
10. Pull sight shield down and align the studs on the intake manifold with the holes in the sight shield.
11. Install the fuel injector sight shield (1) nuts (2).
^ Tighten the fuel injector sight shield nuts to 3 Nm (27 inch lbs.).
