C317 (RH Front Power Seat Harness Inline to Lumbar Position Switch)
C317 (RH Front Power Seat Harness Inline to Lumbar Position Switch)

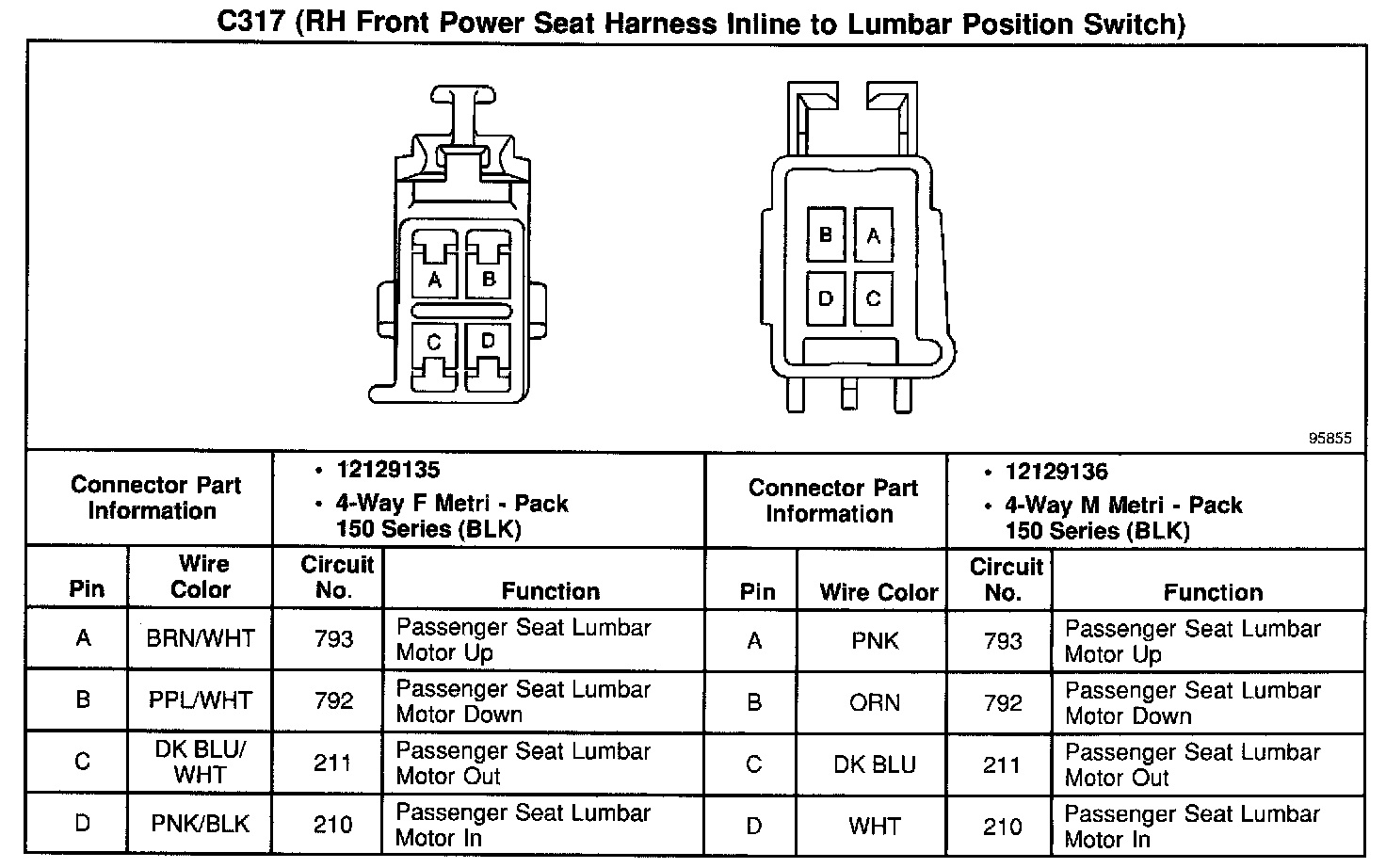

C317 (RH Front Power Seat Harness Inline to Lumbar Position Switch):
