C314 (LH Front PWR Seat Harness Inline To Lumbar Position SW, W/Memory)
C314 (LH Front PWR Seat Harness Inline To Lumbar Position SW, W/Memory)

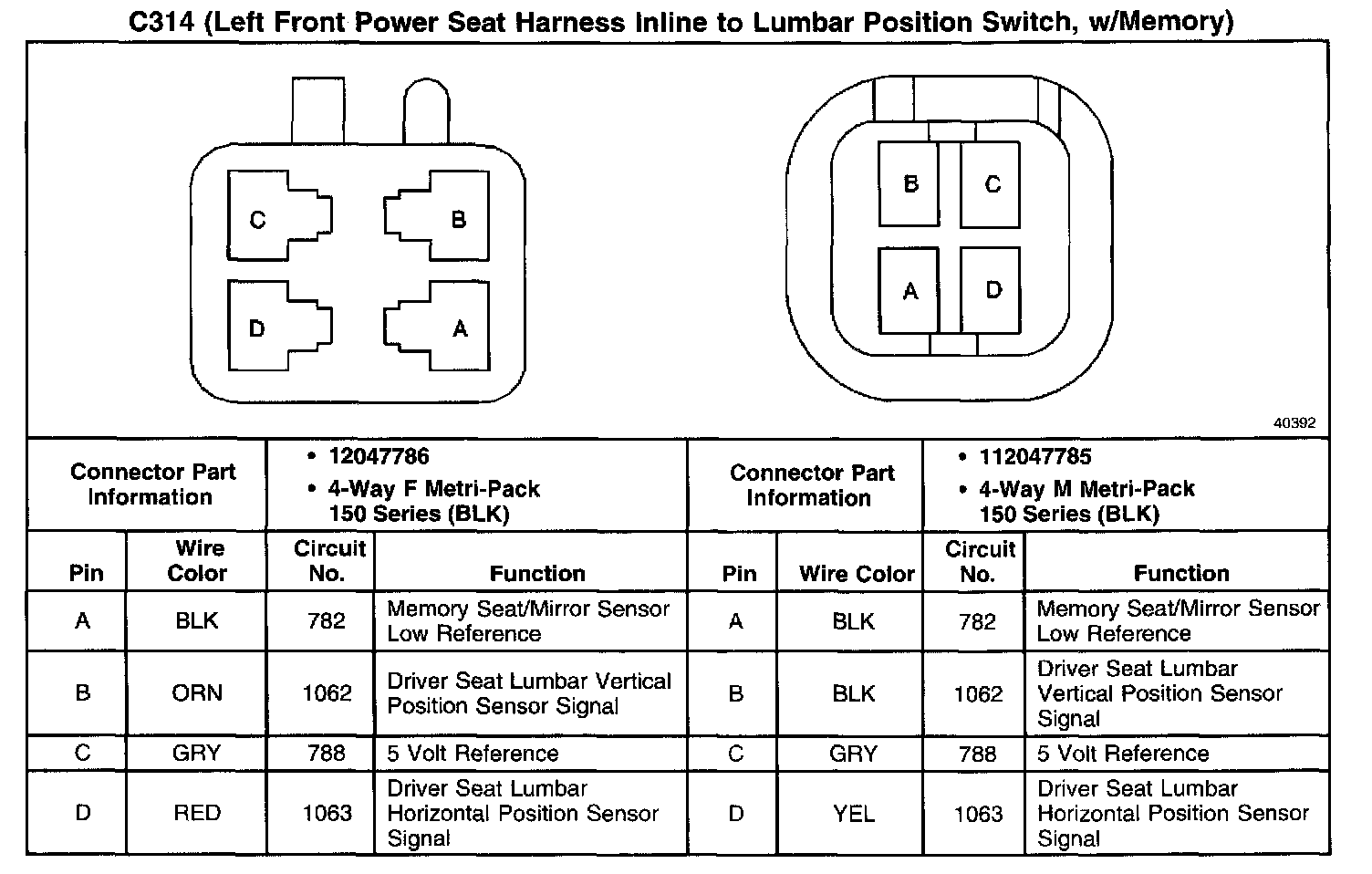

C314 (Left Front Power Seat Harness Inline To Lumbar Position Switch, W/ Memory):
