Home >> Oldsmobile >> 2001 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C200 - C299 >> C204 (IP Harness Inline to HVAC Harness)

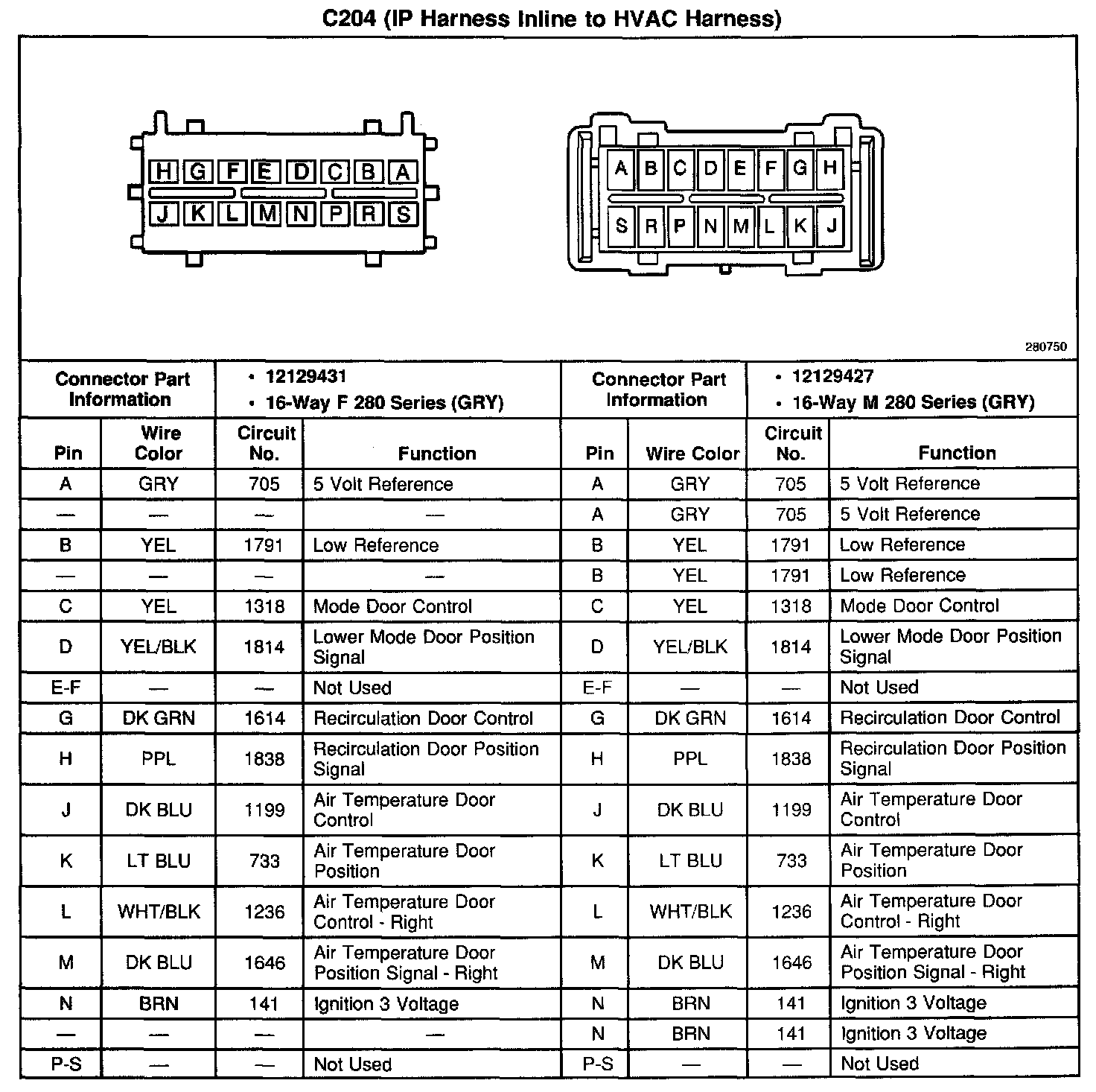

C204 (IP Harness Inline to HVAC Harness)

C204 (IP Harness Inline to HVAC Harness):
