In Line Connector C115
In Line Connector C115

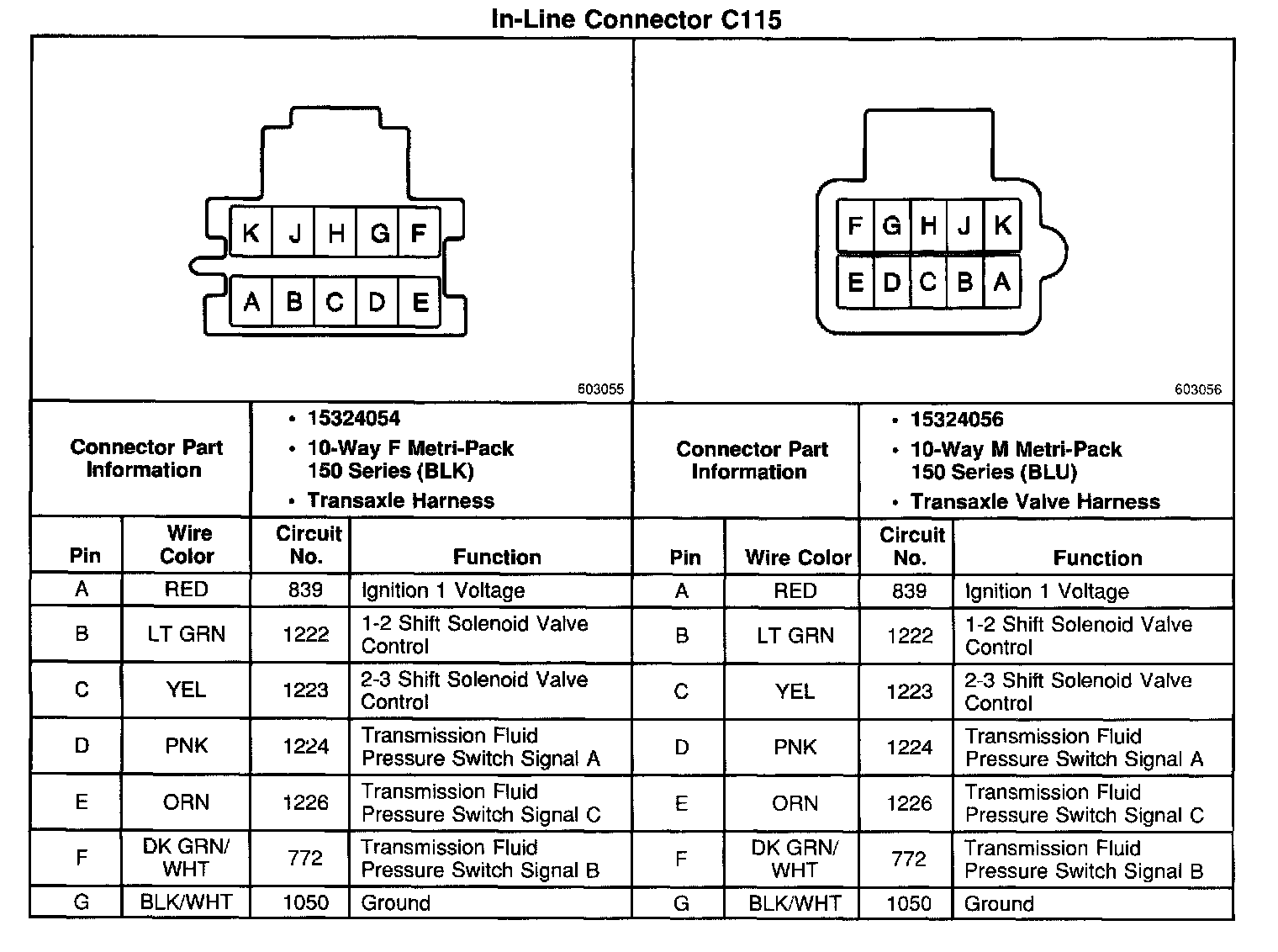

In-Line Connector C115 (Part 1 Of 2):

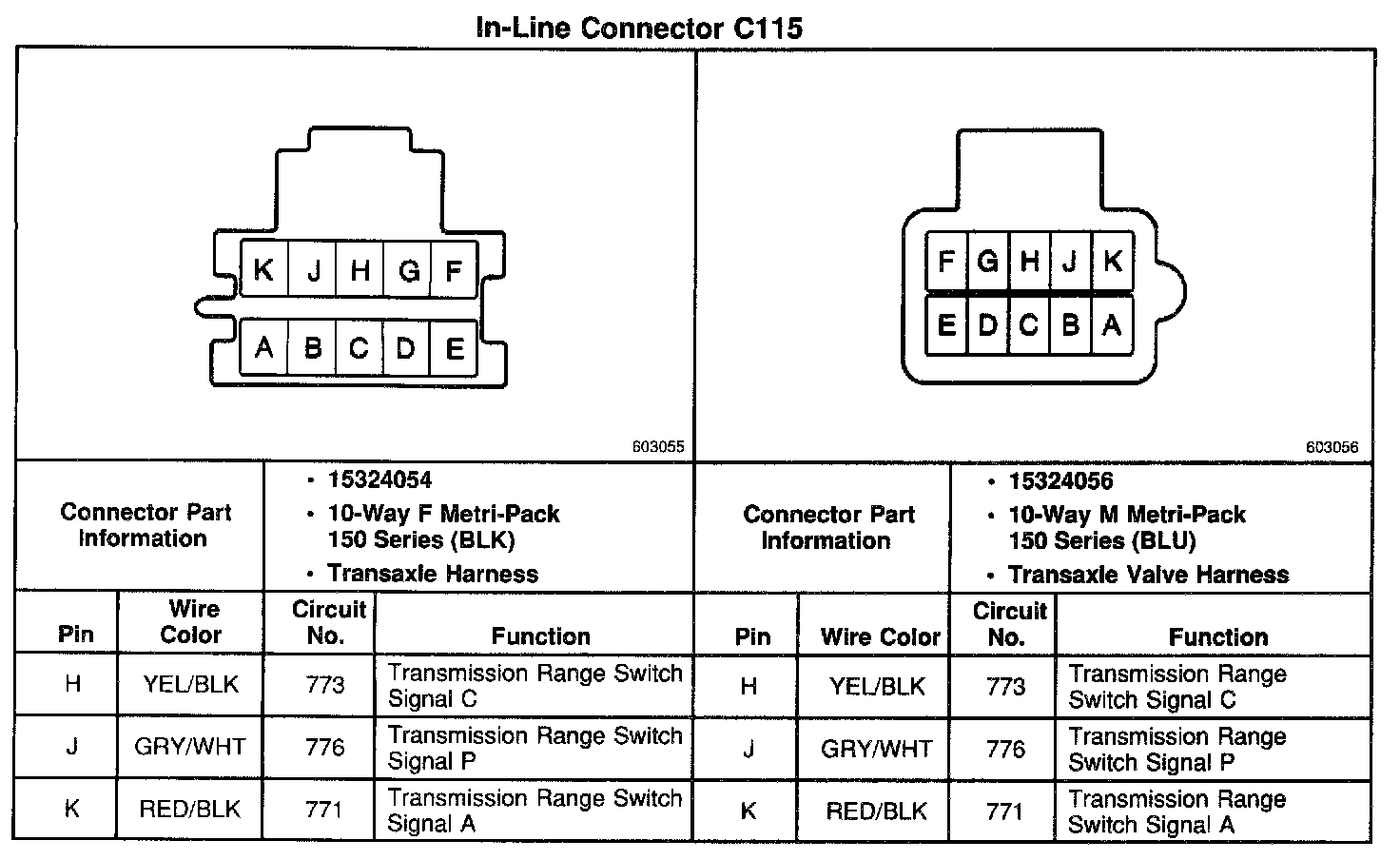

In-Line Connector C115 (Part 2 Of 2):
