Home >> Oldsmobile >> 2001 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Power and Ground Distribution >> Auxiliary Power Outlet >> Testing and Inspection >> Cigar Lighter Inoperative

Cigar Lighter Inoperative

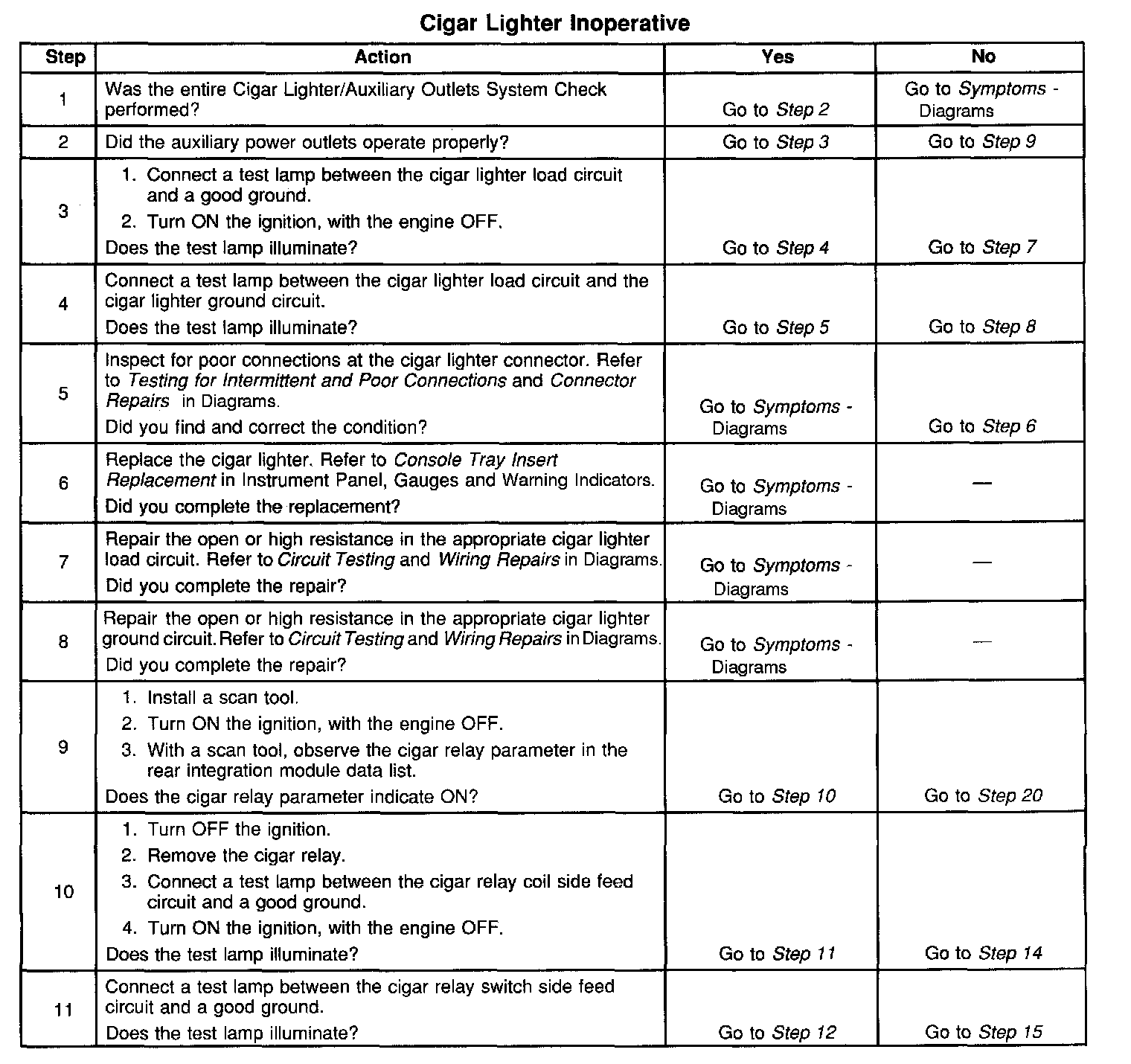

Steps 1-11:

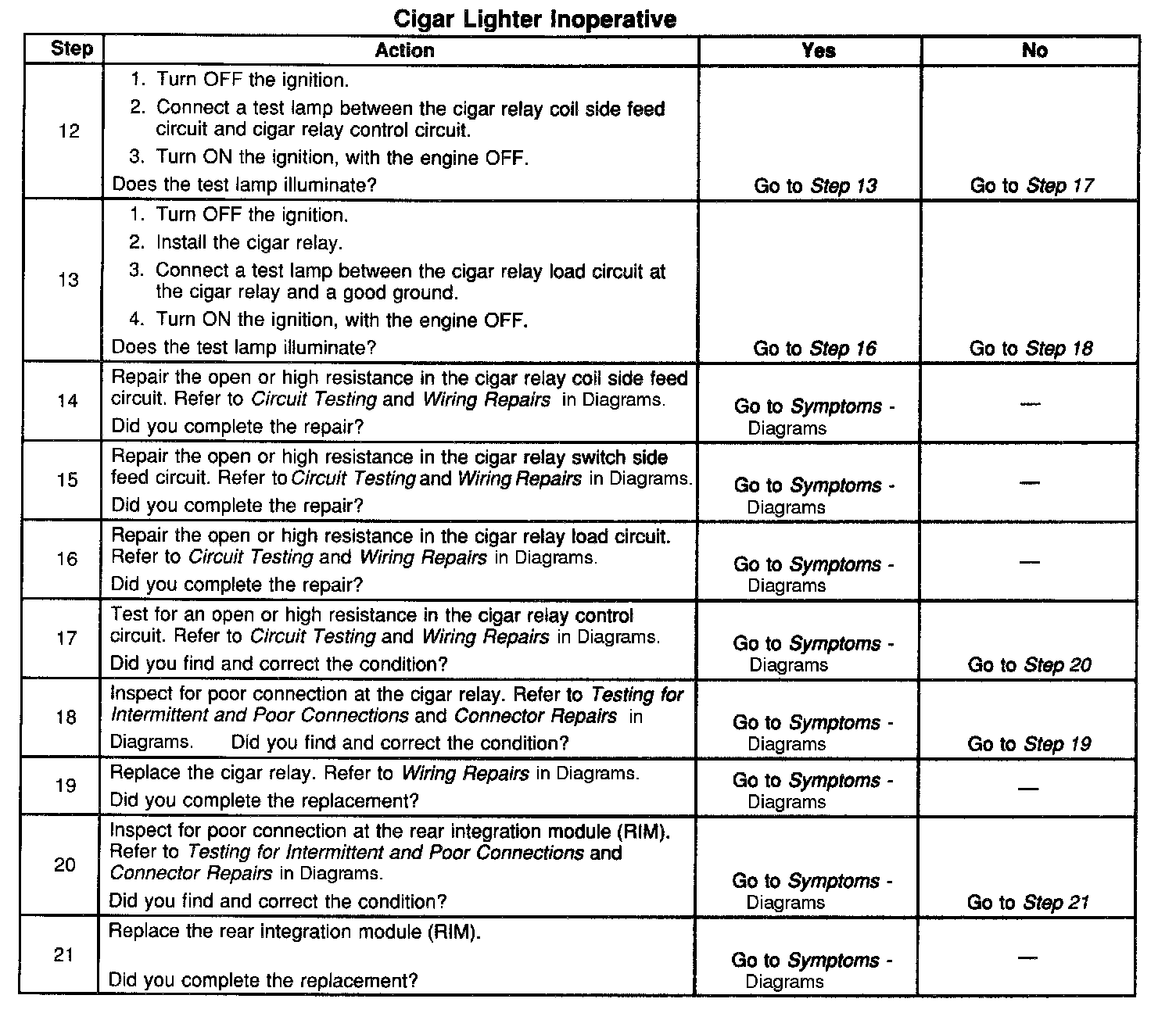

Steps 12-21:
