Turn Signal Lamp: Diagrams

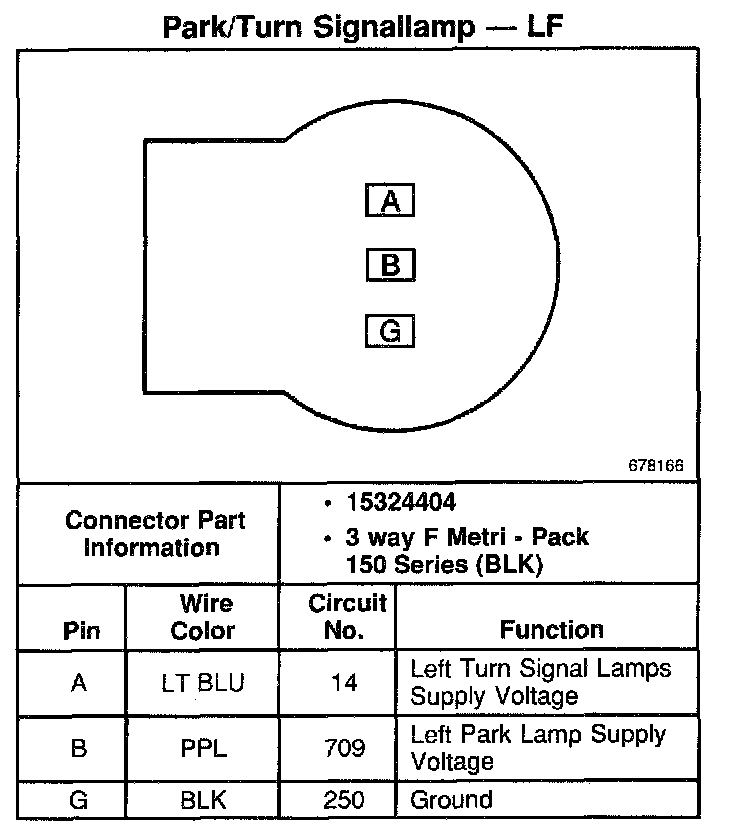

Park/Turn Signallamp - LF:



Park/Turn Signallamp - RF:



Turn Signal Lamp - LR:



Turn Signal/Hazard Flasher Module:



Turn Signal Lamp - RR:
