Home >> Oldsmobile >> 2001 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Courtesy Lamps Inoperative

Courtesy Lamps Inoperative

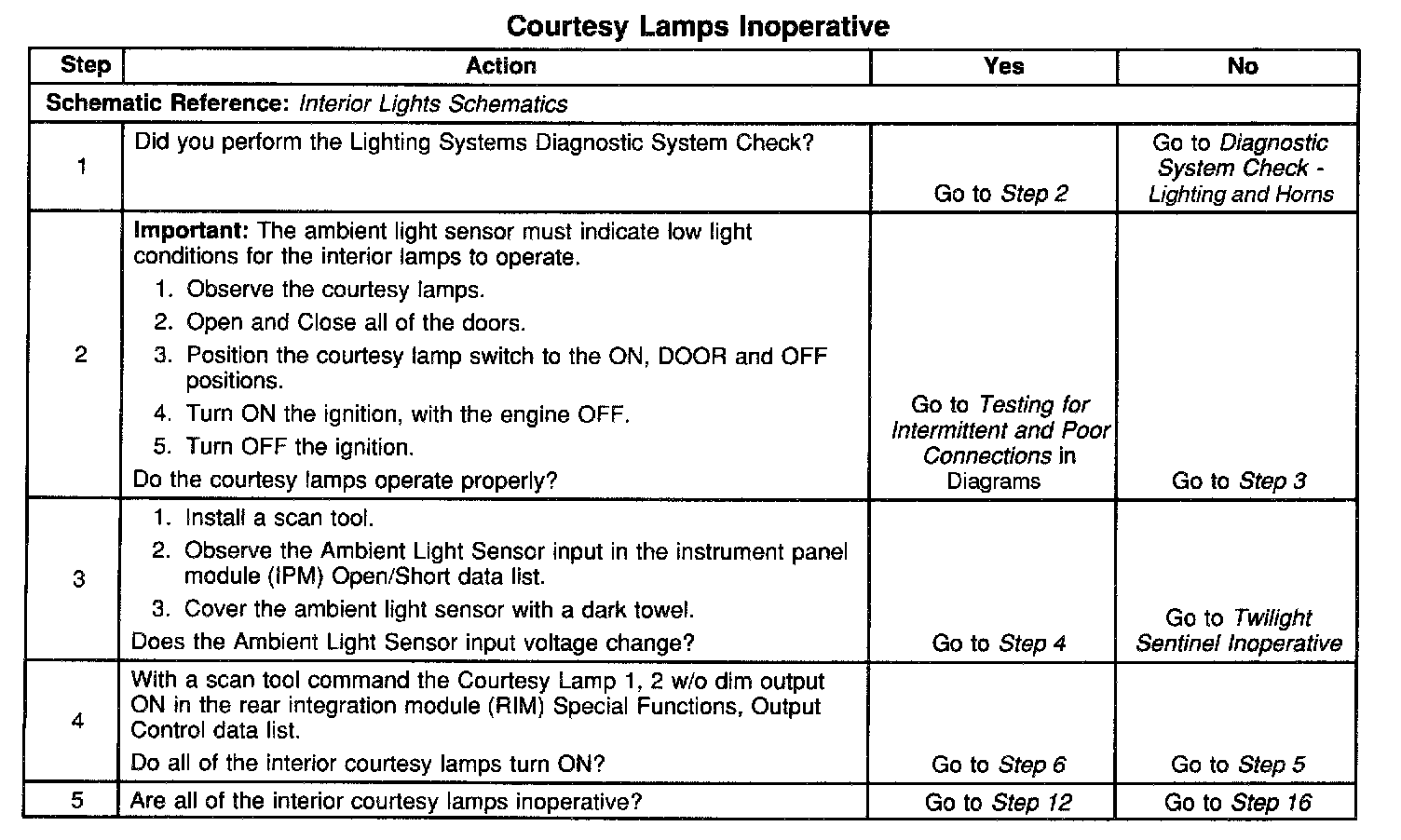

Steps 1-5:

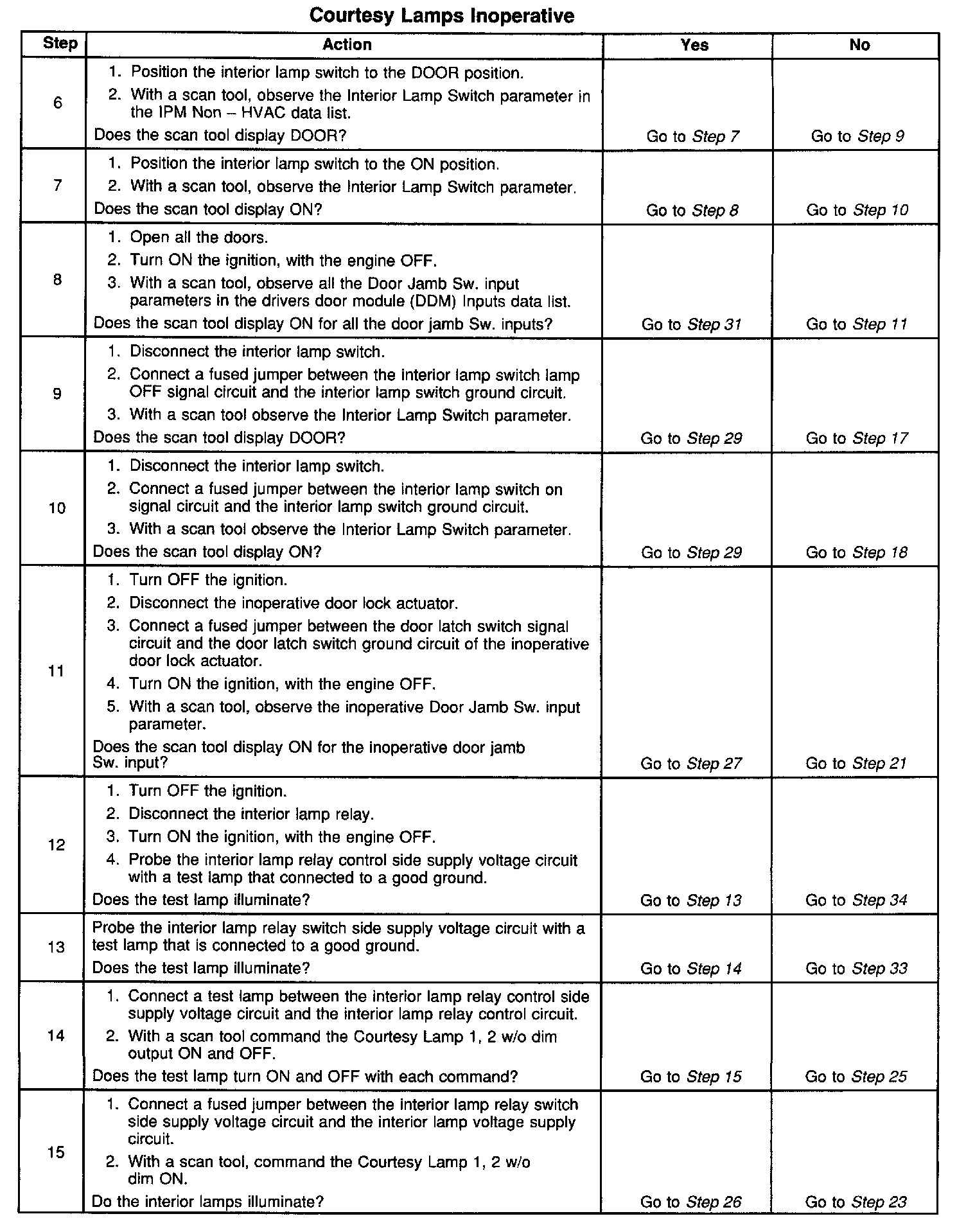

Steps 6-15:

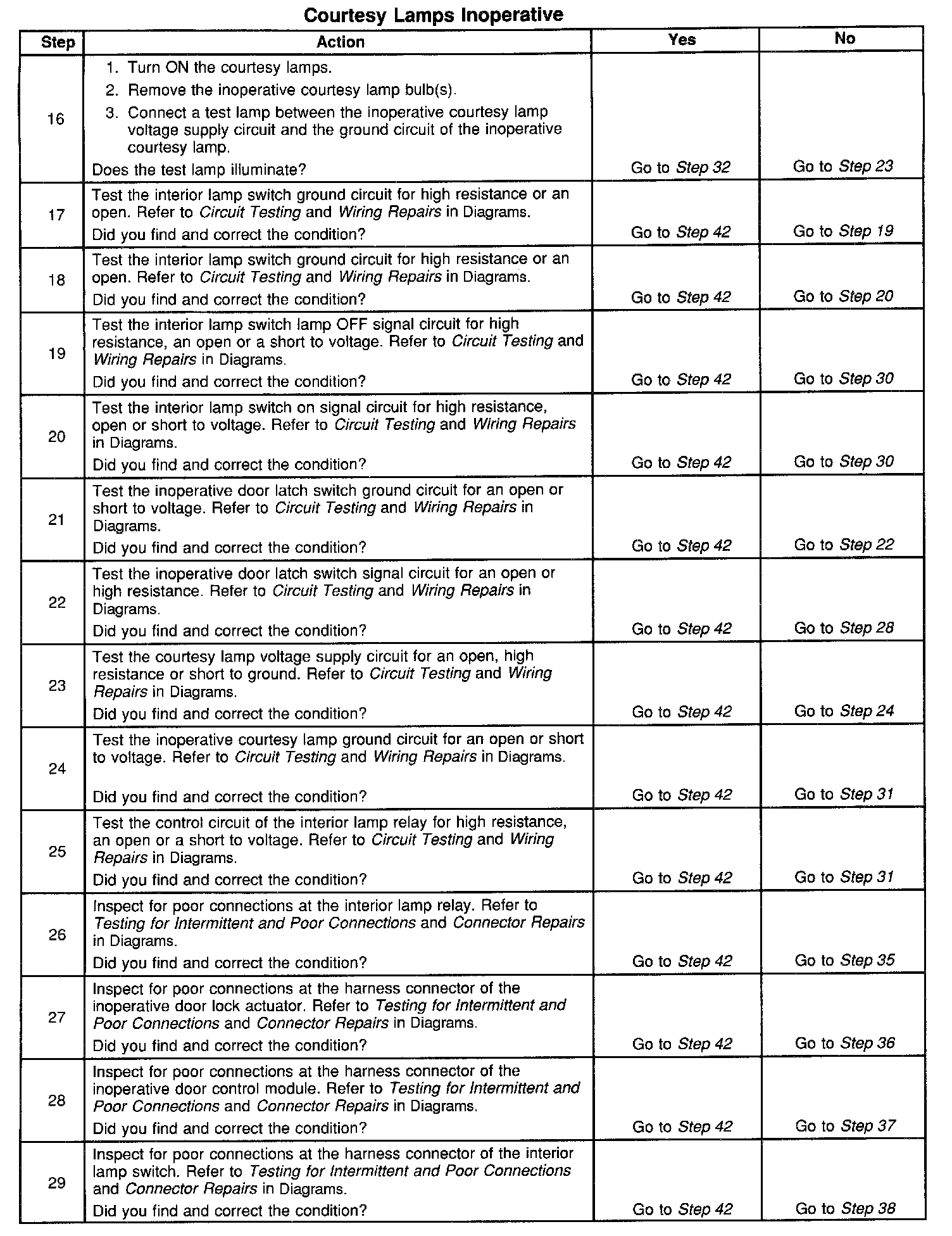

Steps 16-29:

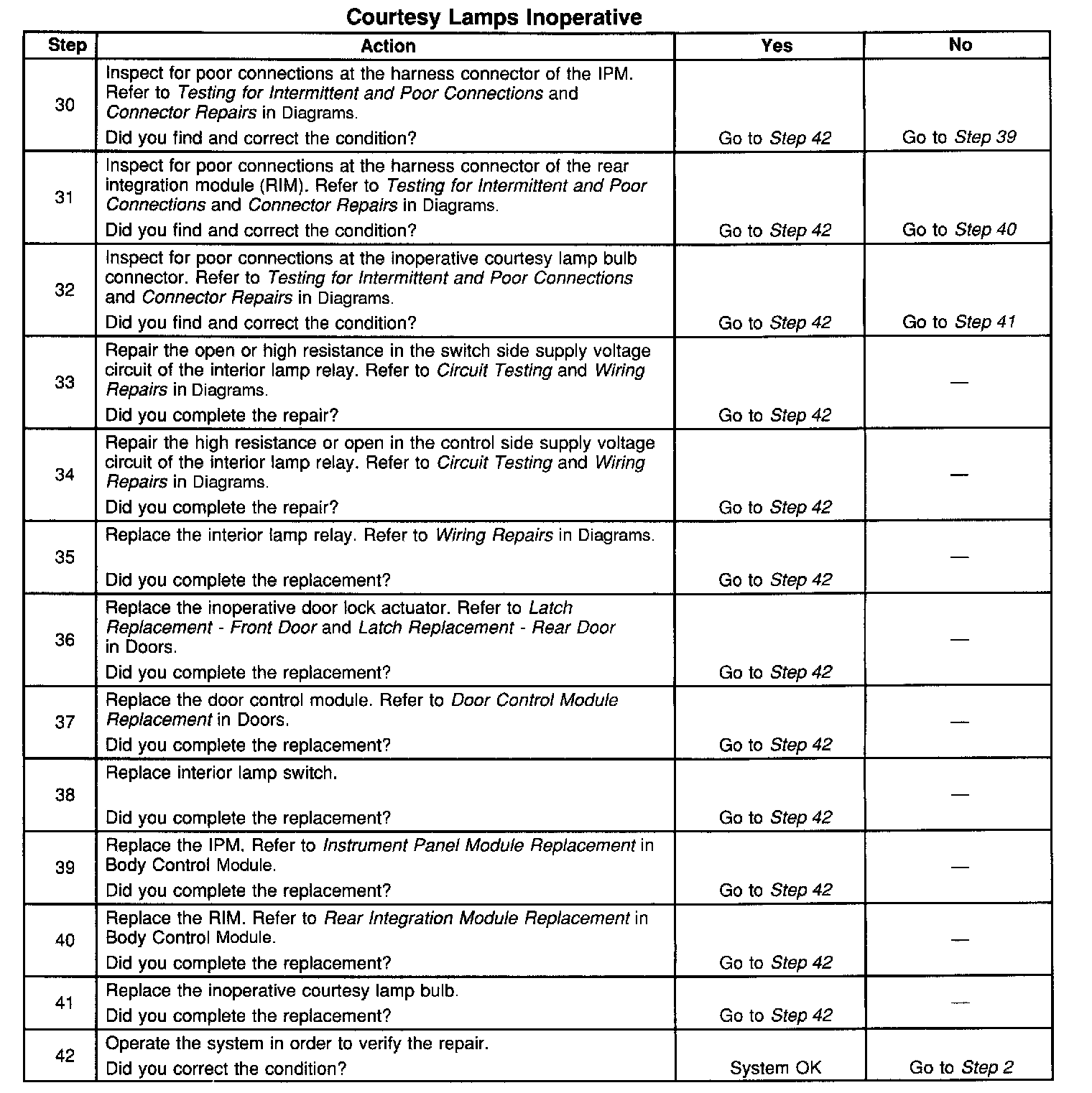

Steps 30-42:
