Dome Lamp: Service and Repair

DOME LAMP REPLACEMENT

REMOVAL PROCEDURE

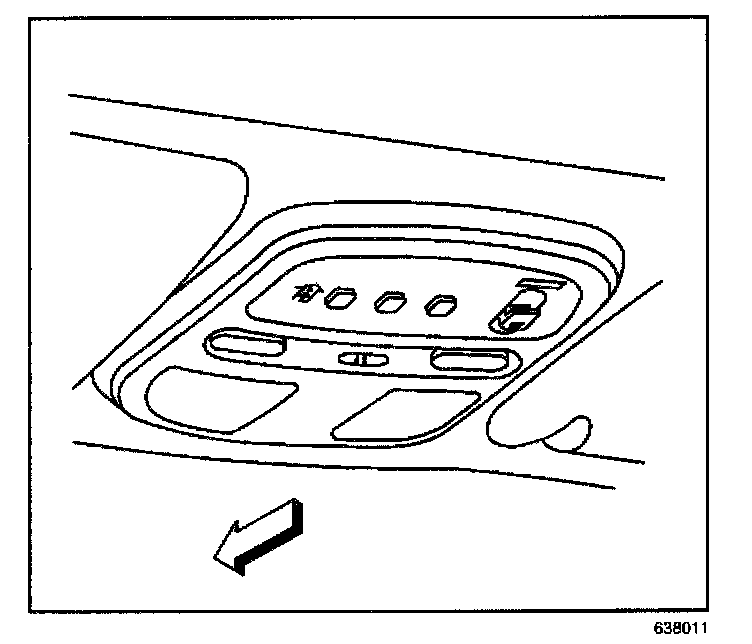

1. Using a thin-bladed tool, insert the edge of the tool under the dome lamp lens.
2. Carefully snap the dome lamp lens out of the overhead console assembly.
3. Carefully remove the metal shield covering the bulb in the dome lamp.
4. Remove the dome lamp bulb.

INSTALLATION PROCEDURE




1. Insert the dome lamp bulb into the dome lamp assembly.
2. Install the metal shield over the dome lamp bulb.
3. Install the lens into the overhead console assembly.
