Home >> Oldsmobile >> 2001 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Diagrams >> Connector Views >> Courtesy/Reading Lamp - LR (+C96)

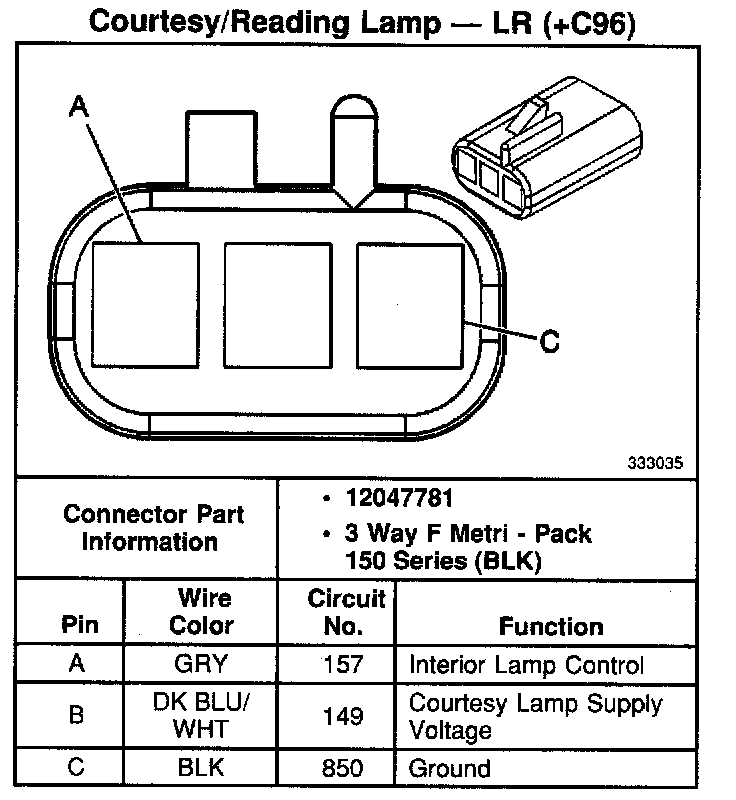

Courtesy/Reading Lamp - LR (+C96)

Courtesy/Reading Lamp - LR (+C96):
