Temperature Variation Between Driver and Passenger Outlets

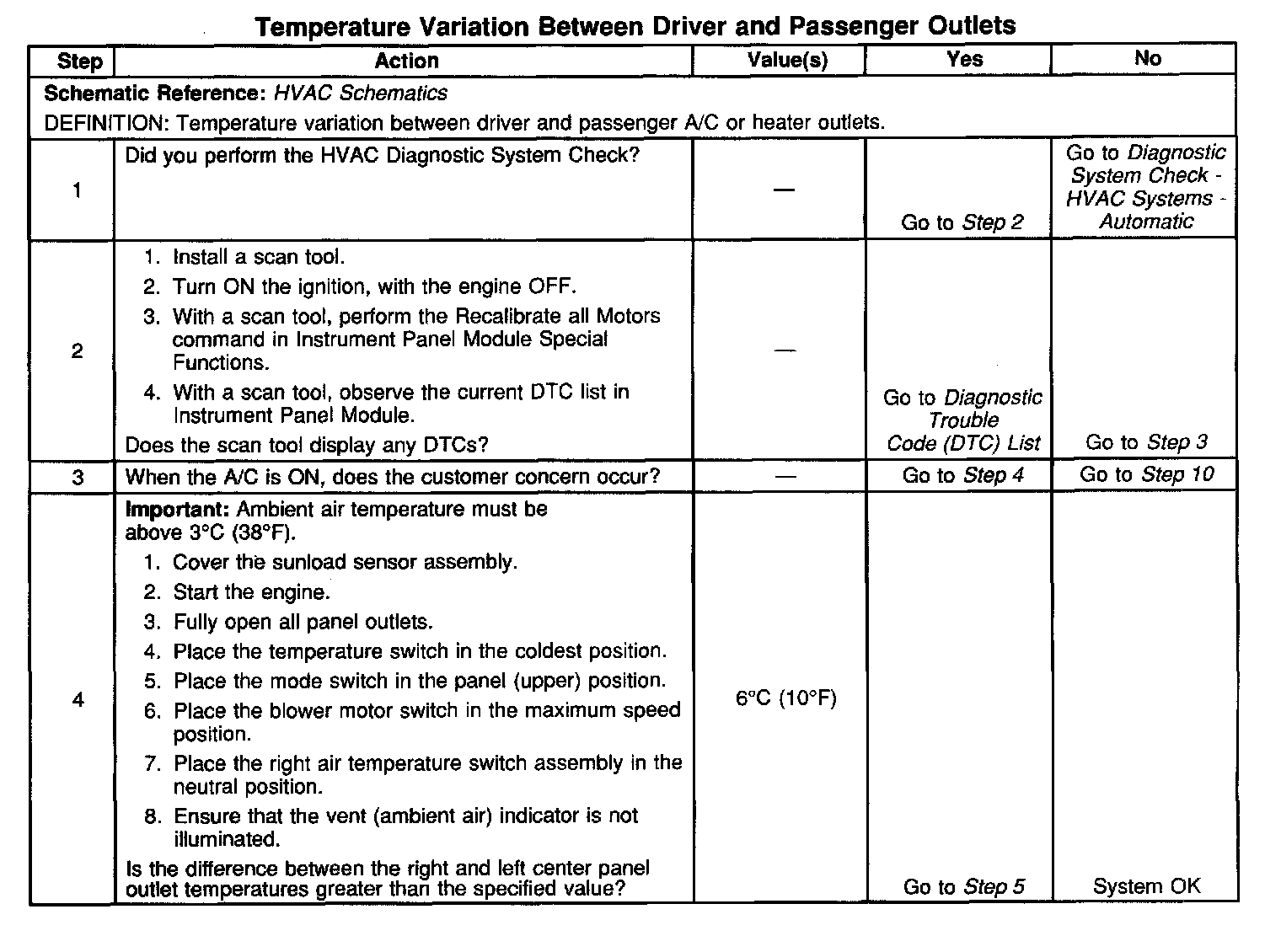

Steps 1-4:

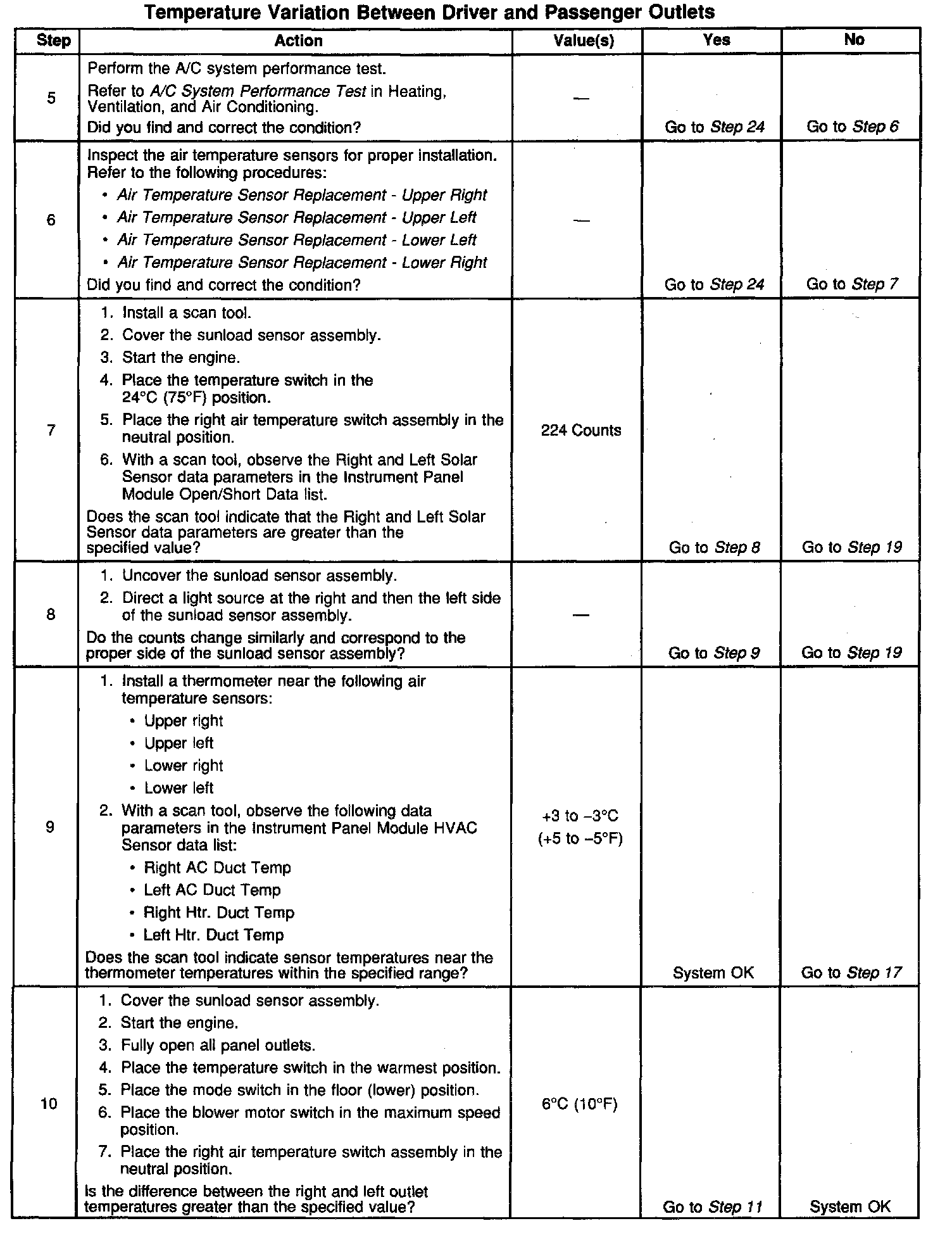

Steps 5-10:

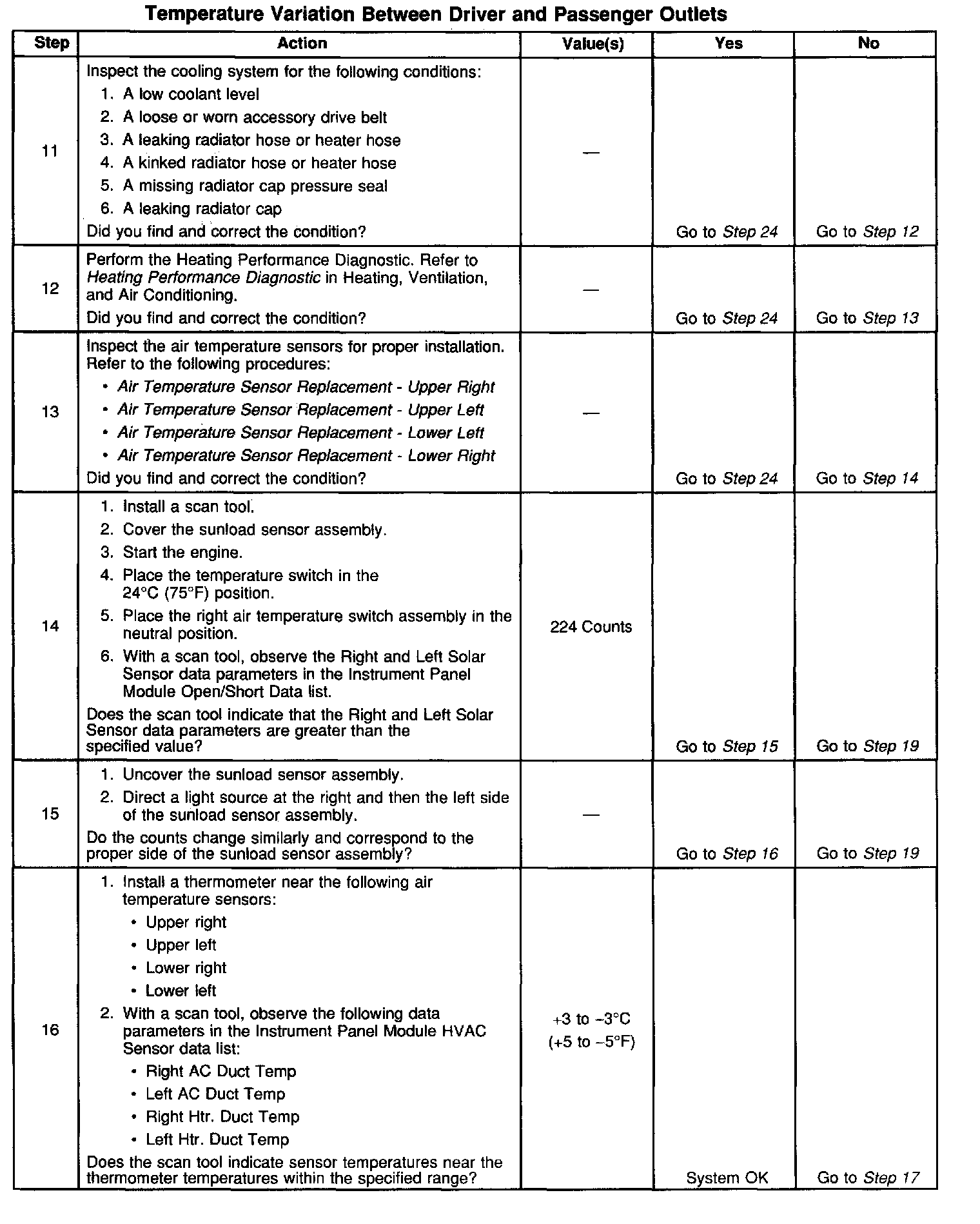

Steps 11-16:

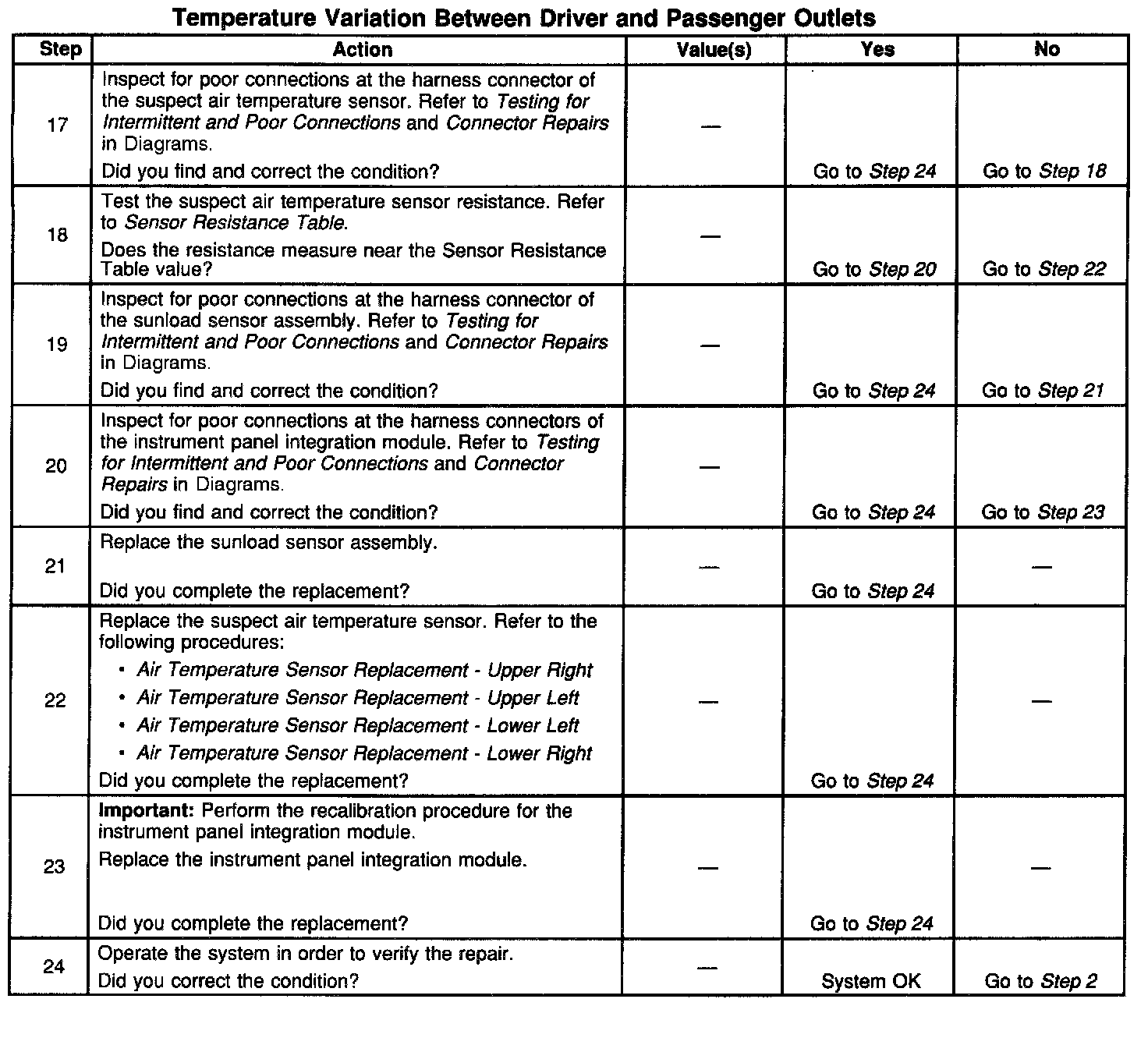

Steps 17-24:
